Overview

The HIP4080A is a high frequency, medium voltage Full Bridge N-Channel FET driver IC, available in 20 lead plastic SOIC and DIP packages. The HIP4080A includes an input comparator, used to facilitate the hysteresis and PWM modes of operation. Its HEN (high enable) lead can force current to freewheel in the bottom two external power MOSFETs, maintaining the upper power MOSFETs off. Since it can switch at frequencies up to 1MHz, the HIP4080A is well suited for driving Voice Coil Motors, switching power amplifiers and power supplies. HIP4080A can also drive medium voltage brush motors, and two HIP4080As can be used to drive high performance stepper motors, since the short minimum on-time can provide fine micro-stepping capability. Short propagation delays of approximately 55ns maximize control loop crossover frequencies and dead-times which can be adjusted to near zero to minimize distortion, resulting in precise control of the driven load. The similar HIP4081A IC allows independent control of all 4 FETs in a Full Bridge configuration.

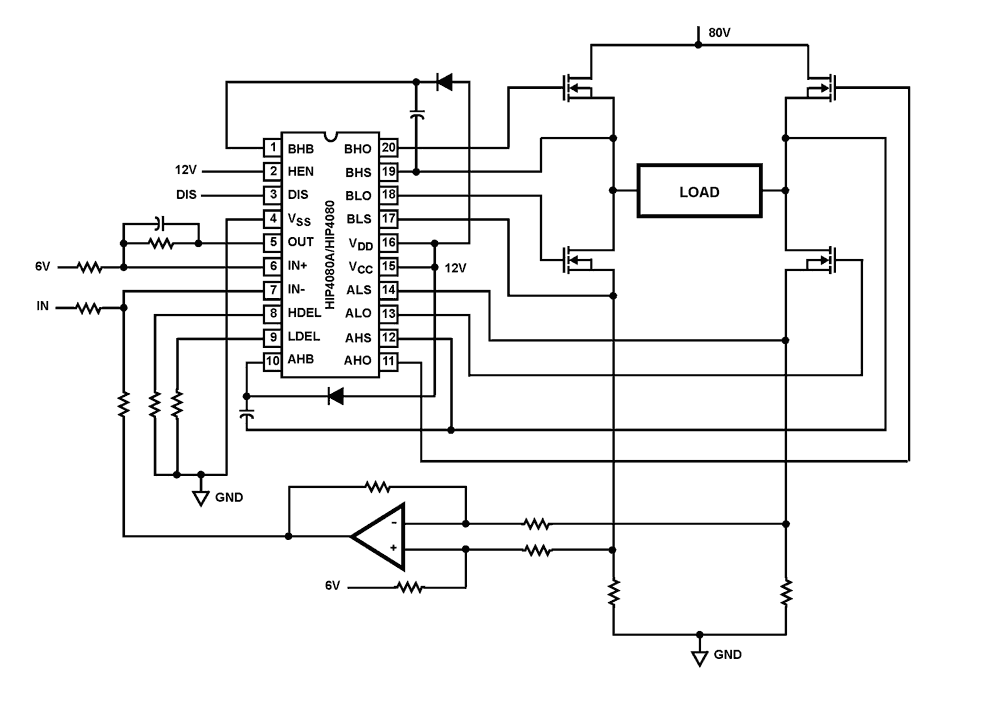

HIP4080A Functional Diagram
HIP4080A Functional Diagram
  • Drives N-Channel FET Full Bridge Including High Side Chop Capability
  • Bootstrap Supply Max Voltage to 95VDC
  • Drives 1000pF Load at 1MHz in Free Air at +50°C with Rise and Fall Times of Typically 10ns
  • User-Programmable Dead Time
  • Charge-Pump and Bootstrap Maintain Upper Bias Supplies
  • DIS (Disable) Pin Pulls Gates Low
  • Input Logic Thresholds Compatible with 5V to 15V Logic Levels
  • Very Low Power Consumption
  • Undervoltage Protection
  • Pb-Free Available as an Option

Applications

  • Medium/Large Voice Coil Motors
  • Full Bridge Power Supplies
  • Switching Power Amplifiers
  • High Performance Motor Controls
  • Noise Cancellation Systems
  • Battery Powered Vehicles
  • Peripherals
  • UPS

Documentation

Type Title Date
Datasheet
HIP4080A Datasheet
PDF 882 KB
Brochure
Industrial Power Management Brochure
PDF 5.51 MB 日本語
White Paper
How Green is Your Cloud?
PDF 295 KB
End Of Life Notice
PLC17007 - Q1 Cy 17 General Product Life Cycle Notice
PDF 292 KB
Product Change Notice
PCN12094 - Alternate Manufacturing Site for Assembly of the Listed Intersil Packaged Products - Amkor Technology, Philippines (ATP)
PDF 98 KB
Product Change Notice
PCN12086 - Alternate Manufacturing Site for Assembly of the Listed Intersil PDIP Packaged Products -Amkor Technology, Philippines (ATP)
PDF 86 KB
Application Note
AN1681: Grounding Techniques
PDF 509 KB
Application Note
AN1684: Nonideality of Ground
PDF 397 KB
Other
TB458: Converting a Fixed PWM to an Adjustable PWM
PDF 315 KB
Application Note
AN1116: CMOS Applications Information
PDF 576 KB
Other
TB406: Proper Termination of Inputs to the HIP408X Family of Driver ICs
PDF 180 KB
Application Note
AN9525: Class-D Audio Applications of the HIP4080AEVAL2
PDF 888 KB
Application Note
AN9404: HIP4080A, 80V High Frequency H-Bridge Driver (HIP4080A/81AEVALZ)
PDF 945 KB
13 items
