Capacitive Touch Evaluation System for RL78/G22
Jump to Page Section:
Overview
Description
The RL78/G22 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
Configuration
- RL78/G22 CPU board
- Touch application board

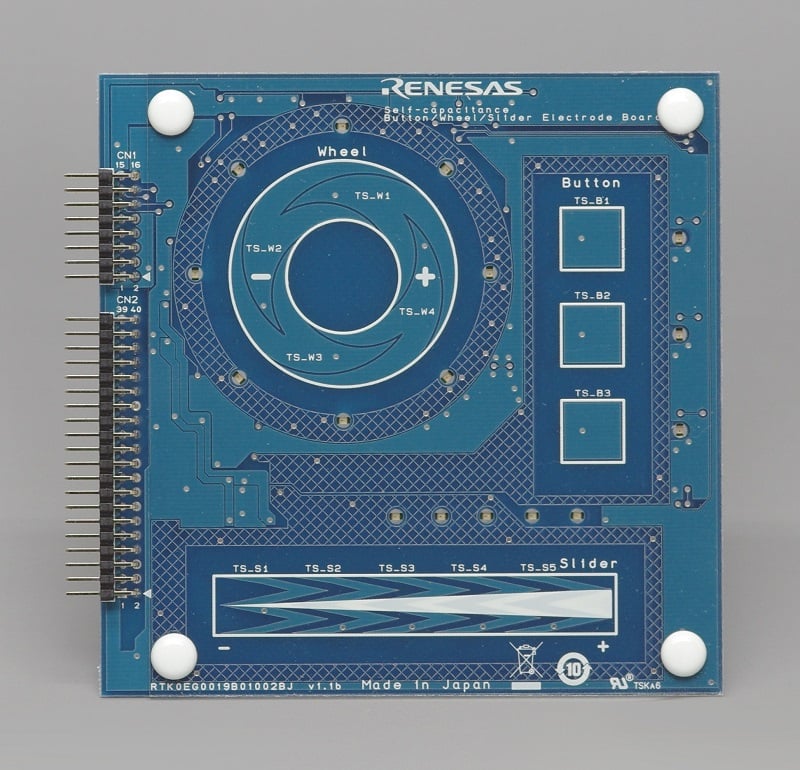

- Self-capacitance evaluation board built-in basics for capacitive touch: switches, slider and wheel
Features
- Use to evaluate various touch functions (button, slider, wheel)
- Simple prototyping
- Use as a reference when designing boards or software
- Easily adjust the sensitivity by using QE for Capacitive Touch
- Easy operation with intuitive interface
- Easy to develop touch interfaces even for beginners with GUI
- Automatically output adjusted source code
- RL78/G22 MCU (R7F102GGE2DFB) mounted
- Capacitive touch sensor (CTSU2La) terminal 29 channels available
- Compliant with IEC 61000-4-3 and IEC 61000-4-6 Level 3
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.20 MB 日本語 | Manual - Development Tools | ||
| ZIP 2.39 MB | Schematic | ||
| PDF 1.51 MB 日本語 | Application Note | ||
| PDF 2.22 MB 日本語 | Application Note | ||
| PDF 1.07 MB 日本語 | Application Note | ||
| PDF 897 KB 日本語 | Application Note | ||
| PDF 1.58 MB 日本語 | Application Note | ||
| PDF 4.52 MB 日本語 | Application Note | ||
| PDF 2.33 MB 日本語 | Application Note | ||
| PDF 2.61 MB | Application Note | ||
| PDF 560 KB 日本語 | Application Note | ||
| PDF 1.97 MB 日本語 | Application Note | ||
| PDF 8.01 MB 日本語 , 简体中文 | Application Note | ||
| PDF 3.09 MB 日本語 | Application Note | ||
| PDF 756 KB 日本語 | Application Note | ||
| PDF 857 KB 日本語 | Application Note | ||
| PDF 1.63 MB 日本語 | Application Note | ||
17 items
|
|||
