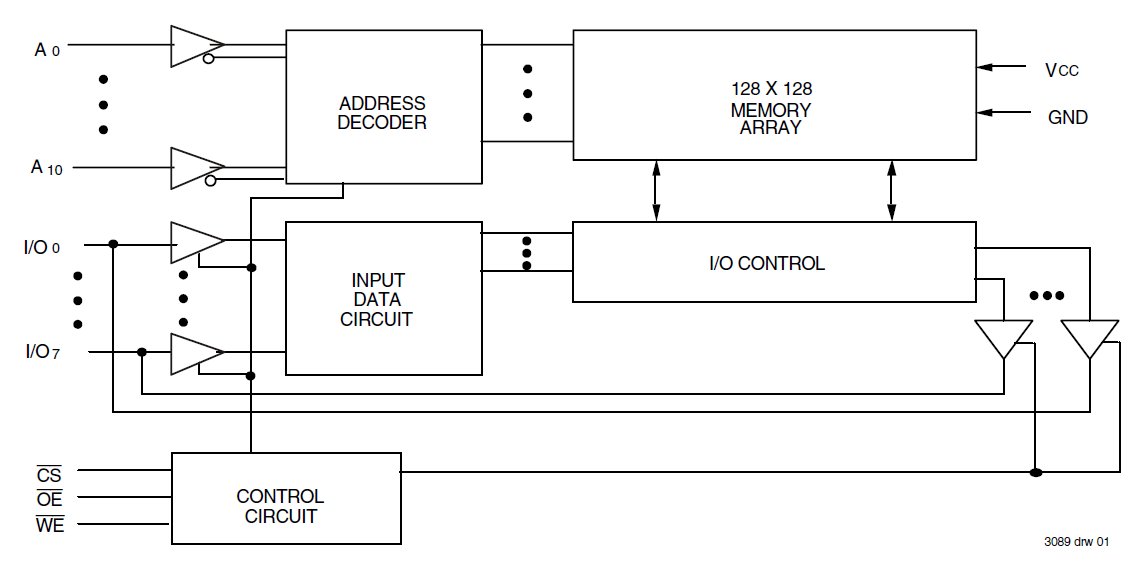

The 6116 5V CMOS SRAM is organized as 2K x 8. The 6116 offers a reduced power standby mode.The low-power (LA) version also offers a battery backup data retention capability where the circuit typically consumes only 1μW to 4μW operating off a 2V battery. All inputs and outputs are TTL-compatible. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Features

  • High-speed access and chip select times – Military: 20/25/35/45/55/70/90/120/150ns (max.) – Industrial: 20/25ns (max.) – Commercial: 15/20/25ns (max.)
  • Low-power consumption
  • Battery backup operation – 2V data retention voltage (LA version only)
  • Produced with advanced CMOS high-performance technology
  • CMOS process virtually eliminates alpha particle soft-error rates
  • Input and output directly TTL-compatible
  • Static operation: no clocks or refresh required
  • Available in ceramic 24-pin DIP, ceramic and plastic 24-pin Thin Dip and 24-pin SOIC packages
  • Military product compliant to MIL-STD-833, Class B

Product Options

Part Number Part Status Pkg. Type Lead Count (#) Temp. Grade Pb (Lead) Free Carrier Type Buy Sample
6116LA120DB
Active CDIP 24 M No Tube
Availability
6116LA120TDB
Active CDIP 24 M No Tube
Availability
6116LA150DB
Active CDIP 24 M No Tube
Availability
6116LA150TDB
Active CDIP 24 M No Tube
Availability
6116LA20SOG
Active SOIC 24 C Yes Tube
Availability
6116LA20SOG8
Active SOIC 24 C Yes Reel
Availability
6116LA20SOGI
Active SOIC 24 I Yes Tube
Availability
6116LA20SOGI8
Active SOIC 24 I Yes Reel
Availability
6116LA20TDB
Active CDIP 24 M No Tube
Availability
6116LA20TPG
Active PDIP 24 C Yes Tube
Availability
6116LA20TPGI
Active PDIP 24 I Yes Tube
Availability
6116LA25DB
Active CDIP 24 M No Tube
Availability
6116LA25SOG
Active SOIC 24 C Yes Tube
Availability
6116LA25SOG8
Active SOIC 24 C Yes Reel
Availability
6116LA25SOGI
Active SOIC 24 I Yes Tube
Availability
6116LA25SOGI8
Active SOIC 24 I Yes Reel
Availability
6116LA25TDB
Active CDIP 24 M No Tube
Availability
6116LA25TPG
Active PDIP 24 C Yes Tube
Availability
6116LA35DB
Active CDIP 24 M No Tube
Availability
6116LA35TDB
Active CDIP 24 M No Tube
Availability
6116LA45DB
Active CDIP 24 M No Tube
Availability
6116LA45TDB
Active CDIP 24 M No Tube
Availability
6116LA55DB
Active CDIP 24 M No Tube
Availability
6116LA55TDB
Active CDIP 24 M No Tube
Availability
6116LA70DB
Active CDIP 24 M No Tube
Availability
6116LA70TDB
Active CDIP 24 M No Tube
Availability
6116LA90DB
Active CDIP 24 M No Tube
Availability
6116LA90TDB
Active CDIP 24 M No Tube
Availability
6116SA120DB
Active CDIP 24 M No Tube
Availability
6116SA120TDB
Active CDIP 24 M No Tube
Availability
6116SA150DB
Active CDIP 24 M No Tube
Availability
6116SA150TDB
Active CDIP 24 M No Tube
Availability
6116SA15SOG
Active SOIC 24 C Yes Tube
Availability
6116SA15SOG8
Active SOIC 24 C Yes Reel
Availability
6116SA15TPG
Active PDIP 24 C Yes Tube
Availability
6116SA20DB
Active CDIP 24 M No Tube
Availability
6116SA20SOG
Active SOIC 24 C Yes Tube
Availability
6116SA20SOG8
Active SOIC 24 C Yes Reel
Availability
6116SA20TDB
Active CDIP 24 M No Tube
Availability
6116SA20TPG
Active PDIP 24 C Yes Tube
Availability
6116SA20TPGI
Active PDIP 24 I Yes Tube
Availability
6116SA25SOG
Active SOIC 24 C Yes Tube
Availability
6116SA25SOG8
Active SOIC 24 C Yes Reel
Availability
6116SA25SOGI
Active SOIC 24 I Yes Tube
Availability
6116SA25SOGI8
Active SOIC 24 I Yes Reel
Availability
6116SA25TDB
Active CDIP 24 M No Tube
Availability
6116SA25TPG
Active PDIP 24 C Yes Tube
Availability
6116SA25TPGI
Active PDIP 24 I Yes Tube
Availability
6116SA35TDB
Active CDIP 24 M No Tube
Availability
6116SA45DB
Active CDIP 24 M No Tube
Availability
6116SA45TDB
Active CDIP 24 M No Tube
Availability
6116SA55DB
Active CDIP 24 M No Tube
Availability
6116SA55TDB
Active CDIP 24 M No Tube
Availability
6116SA70DB
Active CDIP 24 M No Tube
Availability
6116SA70TDB
Active CDIP 24 M No Tube
Availability
6116SA90DB
Active CDIP 24 M No Tube
Availability
6116SA90TDB
Active CDIP 24 M No Tube
Availability

Documentation & Downloads

Title Other Languages Type Format File Size Date
Datasheets & Errata
6116SA_LA Data Sheet Datasheet PDF 118 KB
PCNs & PDNs
PCN# : A1602-01(R1) Add Greatek Taiwan as Alternate Assembly Product Change Notice PDF 611 KB
PCN# : A1602-01 Add Greatek Taiwan as Alternate Assembly Product Change Notice PDF 611 KB
PCN# : A1504-01 Change Silver Glass adhesive material Product Change Notice PDF 27 KB
PCN# : A1503-01 New Die Coat Materials Product Change Notice PDF 24 KB
