Overview
Description
The 7028 is a high-speed 64K x 16 Dual-Port Static RAM designed to be used as a stand-alone 1024K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit-ormore word systems. An automatic power down feature controlled by the chip enables (CE0 and CE1) permit the on-chip circuitry of each port to enter a very low standby power mode.
Features
- True Dual-Ported memory cells which allow simultaneous reads of the same memory location
- Dual chip enables allow for depth expansion without external logic
- 7028 easily expands data bus width to 32 bits or more
- Interrupt Flag and On-chip port arbitration logic
- Full on-chip hardware support of semaphore signaling between ports
- Fully asynchronous operation from either port
- Separate upper-byte and lower-byte controls for multiplexed bus and bus matching compatibility
- TTL-compatible, single 5V (±10%) power supply
- Available in a 100-pin TQFP package
- Industrial temperature range (–40C to +85C) is available
Documentation
|
|
Date | |
|---|---|---|
| PDF 374 KB | Datasheet | |
| PDF 123 KB | Guide | |
| PDF 645 KB | End Of Life Notice | |
| PDF 567 KB | Product Change Notice | |
| PDF 24 KB | Product Change Notice | |
| PDF 129 KB | Application Note | |
| PDF 197 KB | Application Note | |
| PDF 182 KB | Application Note | |
| PDF 198 KB | Application Note | |
| PDF 156 KB | Application Note | |
| PDF 183 KB | Application Note | |
| PDF 97 KB | Application Note | |
| PDF 164 KB | Product Change Notice | |
| PDF 290 KB | Product Change Notice | |
| PDF 80 KB | Product Change Notice | |
| PDF 26 KB | Product Change Notice | |
| PDF 150 KB | Product Change Notice | |
| PDF 65 KB | Product Change Notice | |
| PDF 138 KB | Product Change Notice | |
| PDF 150 KB | Product Change Notice | |
| PDF 48 KB | Product Change Notice | |
| PDF 274 KB | Product Change Notice | |
| PDF 44 KB | Product Change Notice | |
23 items
|
||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|---|
| Part Number | ||||||
| TQFP | 100 | C | Yes | Tray | Get Samples, | |
| TQFP | 100 | C | Yes | Reel | ||
| TQFP | 100 | I | Yes | Tray | Get Samples, | |
| TQFP | 100 | I | Yes | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

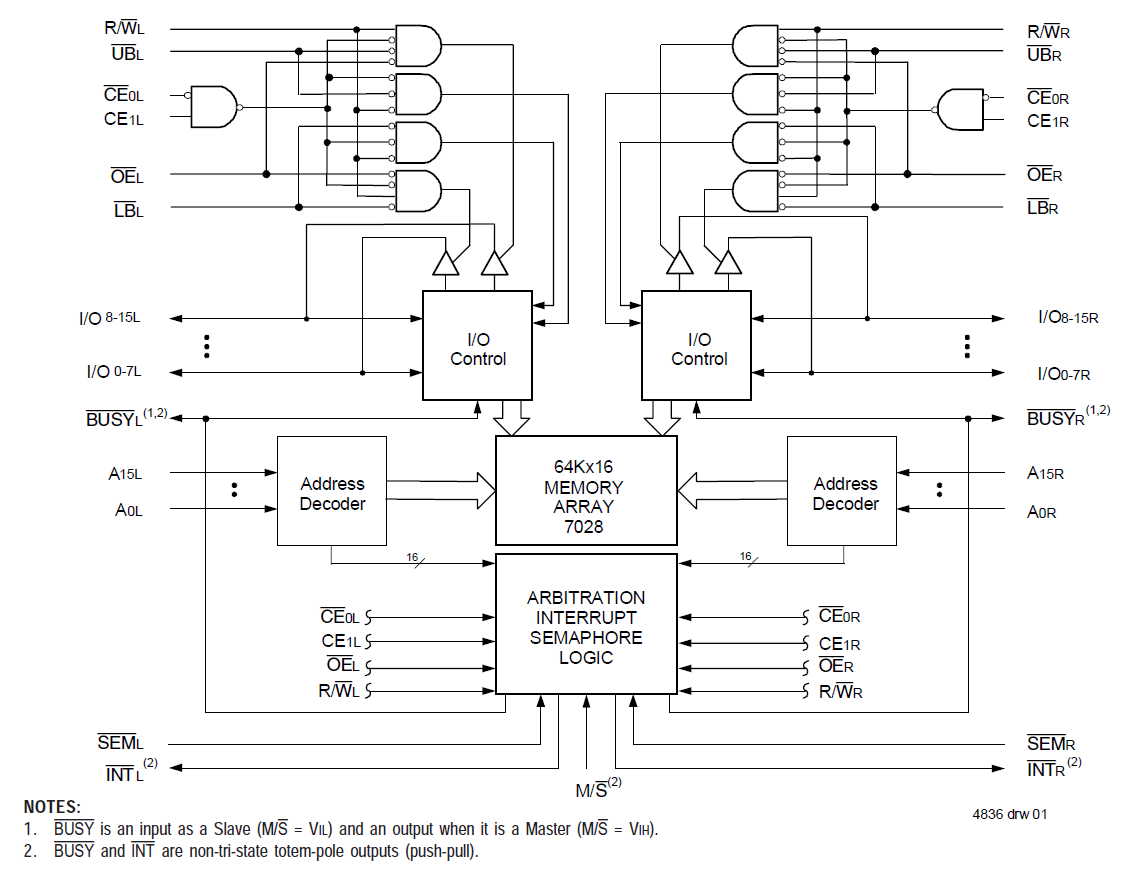

- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
Renesas Samples
Select an orderable part number:
| Orderable Part ID | Sample |
|---|---|
| 7028L15PFG | Availability |
| 7028L20PFGI | Availability |
