Renesas' DA728x family High-Definition (HD) Haptic Driver provides drive capability at up to 1kHz to cover the broad range of human touch sensitivity. With market-leading idle current consumption (360nA), Linear Resonant Actuator (LRA) resonant frequency tracking capability, and low latency for tact button replacement applications, the DA728x family creates a buzz in smartphones, gaming platforms, wearables, and similar systems.

Haptic actuators and motors are diversifying at a rapid pace. Gone are the days of simple coin-cell type LRA motors and small ERM (Eccentric Rotating Mass) pager motors. Today's haptic actuators offer different experiences for different markets. Whether it's a small pancake LRA for a smart-watch or a large, or a multi-directional, LRA for gaming controllers, Renesas' patented current drive outputs support all of these motors with up to 500mA of current.

Product Selection Table

    Processing table
    Target applications
    Pkg. Type
    Pkg. Dimensions (mm)
    Part Number

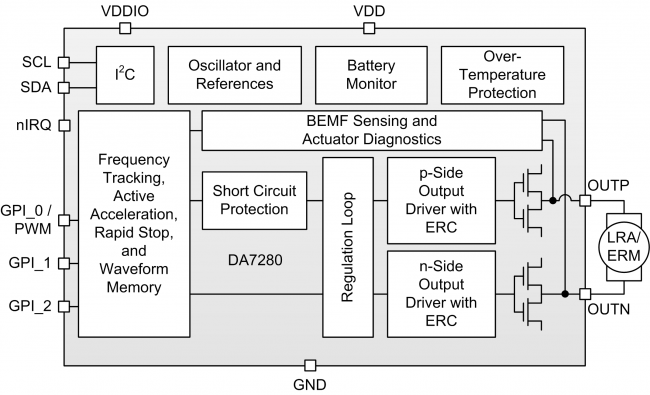

    DA7280
    Low Power High-Definition Haptic Driver for Next Generation Human Machine Interfaces    		 Smartphones, Gaming, Wearables, Automotive, Personal Medical, Touch Displays, Industrial Human-Machine Interfaces 12-QFN, 12-WLCSP 1.35 x 1.75 (WLCSP), 3 x 3 (QFN)
    DA7280-A
    Low Power High-Definition Haptic Driver for Next Generation Human Machine Interfaces    		 Automotive, Industrial 12-WFQFN 3 x 3
    DA7281
    Low Power, Wide-Bandwidth Haptic Driver with Multiple I²C Addresses    		 Smartphones, Gaming, Wearables, Personal Medical, Touch Displays, Industrial Human-Machine Interfaces 12-QFN, 12-WLCSP 1.35 x 1.75 (WLCSP), 3 x 3 (QFN)
    DA7282
    Ultra-Low Power, Wide-Bandwidth Haptic Driver    		 Smartphone, Gaming, Wearables, Portable computing systems, Computing – all-in-ones (display), Notebook PC 12-QFN, 12-WLCSP 1.35 x 1.75 (WLCSP), 3 x 3 (QFN)

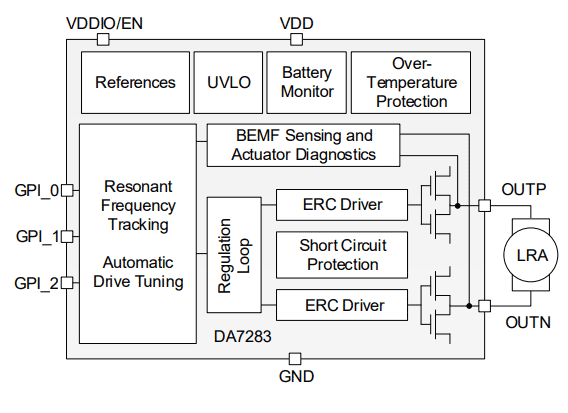

    DA7283
    Ultra-Low-Power, Wide-Bandwidth Haptic Driver    		 Wearables, Portable Computing Systems, Display-driven Consumer Products, Industrial, Medical 12-QFN, 12-WLCSP 1.35 x 1.75 (WLCSP), 3 x 3 (QFN)
