Programmer Board for VersaClock® 5 - 5P49V59xx
Jump to Page Section:
Overview
Description

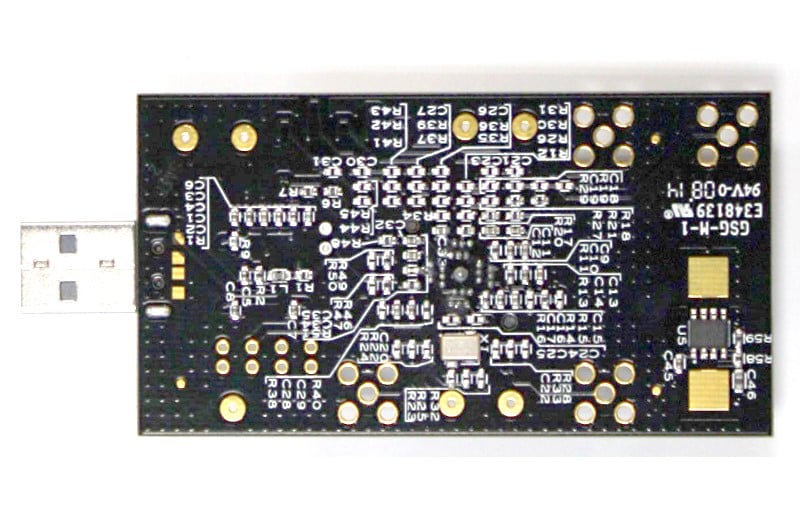

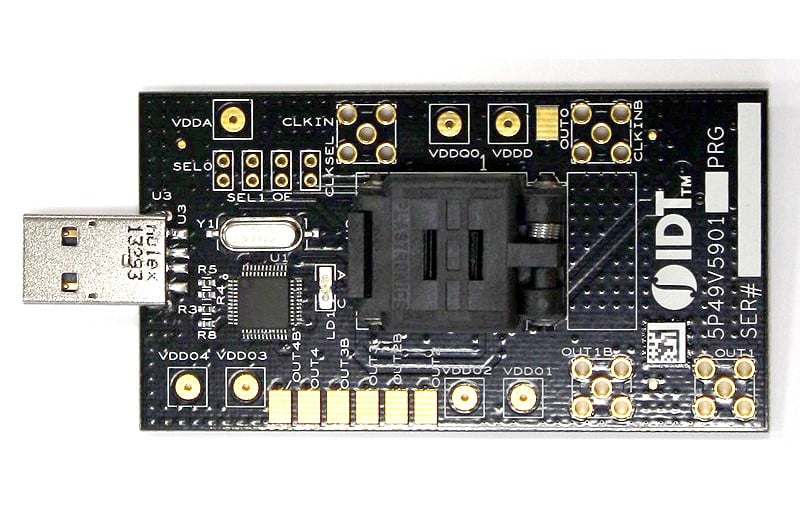

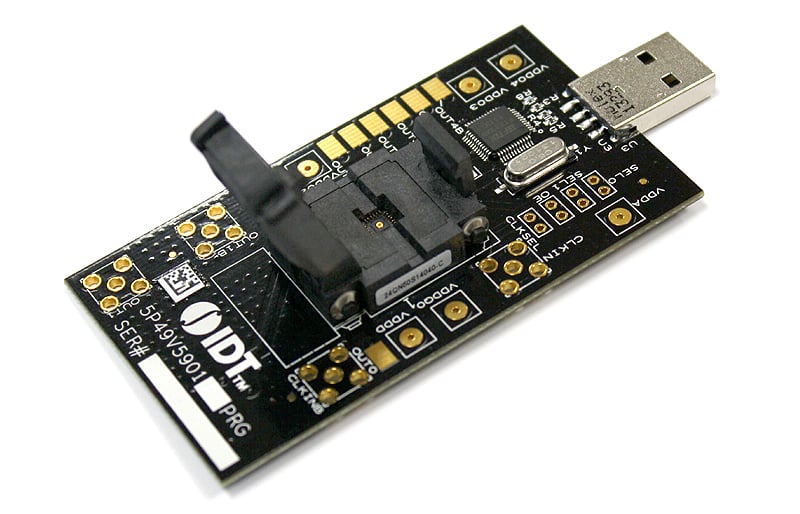

The VersaClock 5 - 5P49V59xx programmer board is made to ease the programming of blank 5P49V59xx parts. With the on-board USB interface, Renesas Timing CommanderTM GUI can be used to communicate with the blank device in the socket for configuration and programming. Compatible with 5P49V5901, 5P49V5913, 5P49V5914, 5P49V5923, 5P49V5925, 5P49V5927, 5P49V5929, 5P49V5933, 5P49V5935.
Features
-
Program VersaClock 5 – 5P49V59xx blank parts in the socket
-
Programmer board uses Renesas’s Timing Commander GUI – to program the blank parts
-
USB port is the communication channel between the GUI and the VersaClock 5 – 5P49V59xx device in the socket.
Documentation
| Type | Date | |
|---|---|---|
| PDF 549 KB | Manual - Development Tools | |
| PDF 2.04 MB | Manual - Software | |
| PDF 469 KB | Product Brief | |
| PDF 30 KB | Schematic | |
4 items
|
||
Processing table
EVKVC5-5901PROG NRND |
