PCI Express® Clocks

Industry-leading PCI Express Clock Solutions

Renesas has been first to market in PCI Express clocking and timing since its inception:

PCIe Gen1, Gen2, Gen3, Gen4, Gen5, Gen6 clocking solutions
Very-low power PCI Express clock generator (1.8V/1.5V)
Ultra-low power HCSL (LP-HCSL) outputs (power savings up to 85% vs. standard HCSL outputs)
Multi-PLL clock generators

With expertise with leading CPU platforms, Renesas is in the optimal position to support all your design needs for processor clocking from personal PCs to data centers and cloud servers. Find your ideal PCIe timing solutions.

Renesas recognizes how challenging it is to balance the system needs of tightening jitter limits, restrictive BOM costs, and shrinking board space. Our clocks support diverse requirements including PCI Express, SATA, USB, SAS, DMI, QPI, Hypertransport, Ethernet, etc., and multiple socket CPU architectures.

About PCI Express Clocks

PCI Express is one of the most widely used high-performance peripheral interfaces in the world. From its origins in graphics, fields as diverse as high-performance computing, servers, storage, networking, and instrumentation have adopted PCI Express. This broad application space requires multiple PCI Express clock solutions optimized for the performance/BOM cost/board-space tradeoffs of each application. Renesas' strong partnerships with leading computing, networking, and consumer vendors and our participation in the appropriate standards bodies enable us to stay at the forefront of the market with the ideal PCI Express clock and timing solutions (PCIe clocks) for every application.

Three Basic PCIe Reference Clock Architectures

CC Architecture

Common Clock

SRnS Architecture

Separate Reference No Spread

SRIS Architecture

Separate Reference Independent Spread

Clock Gen

Clock

Buffer
(optional)

CPU/SoC

PCIe
Data

PCIe Device

CPU/SoC

PCIe
Data

PCIe Device

CPU/SoC

PCIe
Data

PCIe Device

Product Selection Table

Processing table

	Function	Architecture	App Jitter Compliance	Diff. Outputs	Diff. Output Signaling	Output Impedance	Diff. Inputs	Power Consumption Typ (mW)	Supply Voltage (V)	Advanced Features	Lead Count (#)	Pkg. Type	Pkg. Dimensions (mm)
(23) Featured Products (132) Additional Products	Fanout Buffer Generator Multiplexer Zero Delay Buffer	Common SRIS SRNS	10GbE 25G EDR DB2000Q IF-UPI PCIe Gen1 PCIe Gen2 PCIe Gen3 PCIe Gen4 PCIe Gen5 PCIe Gen6 QPI RXAUI UPI USB 3.0 XAUI	1 2 4 5 6 7 8 9 11 12 13 15 16 19 20 24	HCSL LP-HCSL LVCMOS LVDS LVPECL	33 85 100	1 2 4	Maximum Typical power consumption (in mW). Minimum Typical power consumption (in mW).	1.05 - 1.5 1.05 - 3.3 1.5 1.8 1.8 - 3.3 2.5 2.5 - 3.3 3.3	100M output(s) 100MHz output(s) 125M output(s) 14.318M output(s) 156.25M output(s) 200MHz Differential LVDS 250M output(s) 25M output(s) 25MHz output(s) 312.5M output(s) 33MHz or 48MHz 48M output(s) 50M output(s) Asynch or Glitch-Free Switching Mode Auto SRIS Mode Automatic Clock Parking DOT96M output pair(s) Flexible Power Sequencing Flexible Startup Sequencing HW PLL mode control Integrated 25MHz XTAL Loss of Signal Indicator Multiple SMBus addresses PFT Power Down Tolerant Programmable Clock Programmable input-to-output skew Reference Output SMBus Write Protection SMBus Write lock SMBus security SW PLL mode control Selectable Output Amplitude Selectable Output Impedance Side Band interface Spread Spectrum Very Low Additive Jitter	8 16 20 24 28 32 40 48 56 64 72 80 100	LGA SOIC SSOP TSSOP VFQFPN	10.0 x 10.0 x 1.0 10.2 x 5.3 x 1.73 12.5 x 6.1 x 1.0 15.9 x 7.5 x 2.3 17.0 x 6.1 x 1.0 3.0 x 3.0 x 1.0 3.0 x 3.0 x 1.1 4.0 x 4.0 x 0.8 4.0 x 4.0 x 0.9 4.0 x 4.0 x 1.0 4.0 x 4.0 x 1.21 4.0 x 4.0 x 1.4 4.9 x 3.9 x 1.5 5.0 x 4.4 x 1.0 5.0 x 5.0 x 0.9 6 x 6 x 0.85 6.0 x 6.0 x 0.85 6.0 x 6.0 x 0.9 6.5 x 4.4 x 1.0 7.0 x 7.0 x 0.9 7.0 x 7.0 x 1.0 7.8 x 4.4 x 1.0 8.0 x 8.0 x 0.55 9.0 x 9.0 x 0.9 9.7 x 4.4 x 1.0
Part Number	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator
9SQ440 PDF CK440Q PCIe Gen6 Server Clock Generator	Generator	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	20	LP-HCSL	85		875	3.3	25MHz output(s), 100MHz output(s), PFT, Spread Spectrum	100	VFQFPN	8.0 x 8.0 x 0.55
RC19208 PDF PCIe Gen6 2:8 Clock Multiplexer	Multiplexer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	8	LP-HCSL	85, 100	2	250	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	48	VFQFPN	6.0 x 6.0 x 0.9
RC19204 PDF PCIe Gen6 2:4 Clock Multiplexer	Multiplexer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	4	LP-HCSL	85, 100	2	92	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	28	VFQFPN	4.0 x 4.0 x 0.9
RC19202 PDF PCIe Gen6 2:2 Clock Multiplexer	Multiplexer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	2	LP-HCSL	85, 100	2	72	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	20	VFQFPN	3.0 x 3.0 x 1.0
RC19024 PDF PCIe Gen6 24-Output Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	24	LP-HCSL	85	1	808	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	100	VFQFPN	8.0 x 8.0 x 0.55
RC19020 PDF PCIe Gen6 20-Output Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	20	LP-HCSL	85	1	716	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	72, 80	VFQFPN	6.0 x 6.0 x 0.85, 10.0 x 10.0 x 1.0
RC19016 PDF PCIe Gen6 16-Output Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	16	LP-HCSL	85, 100	1	508, 498	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	64	VFQFPN	9.0 x 9.0 x 0.9
RC19013 PDF PCIe Gen6 13-Output Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	13	LP-HCSL	85, 100	1	363, 320	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	56	VFQFPN	7.0 x 7.0 x 1.0
RC19008 PDF PCIe Gen6 8-Output Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	8	LP-HCSL	85, 100	1	237, 231	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	40	VFQFPN	5.0 x 5.0 x 0.9
RC19004 PDF PCIe Gen6 4-Output Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	4	LP-HCSL	85, 100	1	128, 125	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	28	VFQFPN	4.0 x 4.0 x 0.9
RC19002 PDF PCIe Gen6 2-Output Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	2	LP-HCSL	85, 100	1	72	3.3	Automatic Clock Parking, Flexible Startup Sequencing and more...	20	VFQFPN	3.0 x 3.0 x 1.0
RC19216 PDF PCIe Gen6 2:16 Clock Multiplexer	Multiplexer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	16	LP-HCSL	85, 100	2	534	3.3	Automatic Clock Parking, Flexible Power Sequencing and more...	80	VFQFPN	6.0 x 6.0 x 0.85

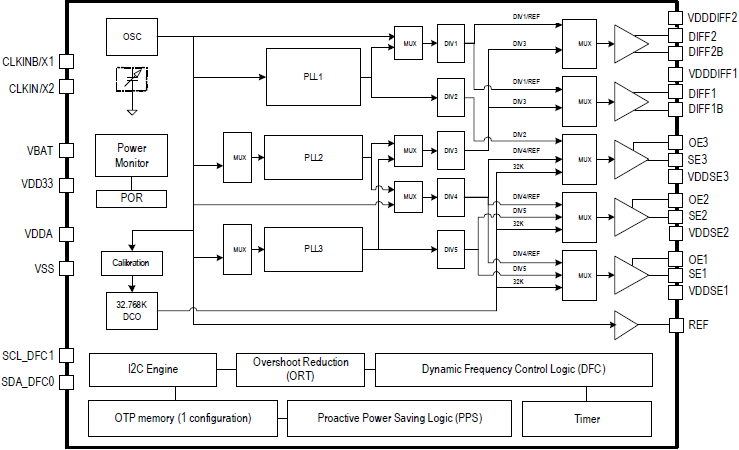

5P35021 PDF VersaClock® 3S Programmable Clock Generator	Generator	Common	PCIe Gen1, PCIe Gen2, PCIe Gen3	2	LP-HCSL, LVCMOS, LVDS, LVPECL	100		50	1.8, 2.5, 3.3	Programmable Clock, Reference Output, Spread Spectrum	20	VFQFPN	3.0 x 3.0 x 1.0
5P35023 PDF VersaClock® 3S Programmable Clock Generator	Generator	Common	PCIe Gen1, PCIe Gen2, PCIe Gen3	2	LP-HCSL, LVCMOS, LVDS, LVPECL	100		50	1.8, 2.5, 3.3	Programmable Clock, Reference Output, Spread Spectrum	24	VFQFPN	4.0 x 4.0 x 0.9

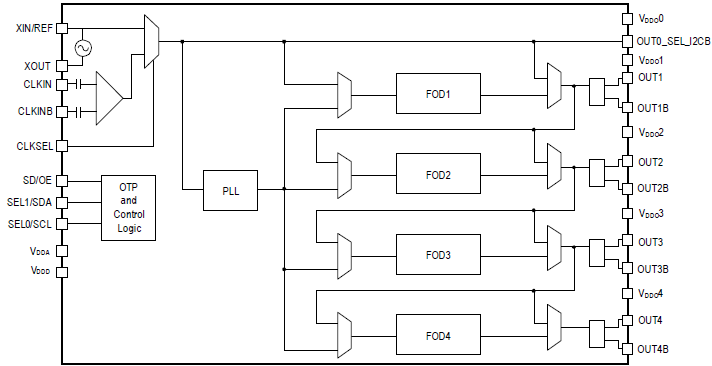

5P49V6965 PDF VersaClock® 6E Programmable Clock Generator	Generator	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5	4	HCSL, LVCMOS, LVDS, LVPECL	100		100	1.8, 2.5, 3.3	Programmable Clock, Reference Output, Spread Spectrum	24	VFQFPN	4.0 x 4.0 x 0.9
9DML4493 PDF 4:4 Clock MUX for PCI Express Gen1–6	Multiplexer	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	4	LP-HCSL	85, 100	4	124	3.3, 2.5, 1.8	Selectable Output Amplitude, Selectable Output Impedance and more...	32	VFQFPN	5.0 x 5.0 x 0.9
9FGV1002 PDF Programmable PhiClock™ Generator	Generator	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	4	LP-HCSL, LVDS	85, 100		125	3.3, 1.8	Programmable Clock	24	LGA, VFQFPN	4.0 x 4.0 x 0.8, 4.0 x 4.0 x 1.4
9FGV1006 PDF Programmable PhiClock™ Generator	Generator	Common, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	2	LP-HCSL	85, 100		100	3.3, 1.8	Programmable Clock	16	LGA	3.0 x 3.0 x 1.1
9QXL2000B PDF 20-Output DB2000Q PCIe Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	25G EDR, DB2000Q, IF-UPI, PCIe Gen1, PCIe Gen2, PCIe Gen3 and more...	20	LP-HCSL	85	1	594	3.3	Multiple SMBus addresses	72	VFQFPN	10.0 x 10.0 x 1.0
9QXL2000C PDF 20-Output Enhanced DB2000Q PCIe Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	25G EDR, DB2000Q, IF-UPI, PCIe Gen1, PCIe Gen2, PCIe Gen3 and more...	20	LP-HCSL	85	1	739	3.3	Multiple SMBus addresses	72	VFQFPN	10.0 x 10.0 x 1.0
9QXL2001B PDF 20-Output DB2000QL PCIe Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	25G EDR, DB2000Q, IF-UPI, PCIe Gen1, PCIe Gen2, PCIe Gen3 and more...	20	LP-HCSL	85	1	488	3.3	Multiple SMBus addresses, Side Band interface	80	VFQFPN	6.0 x 6.0 x 0.85

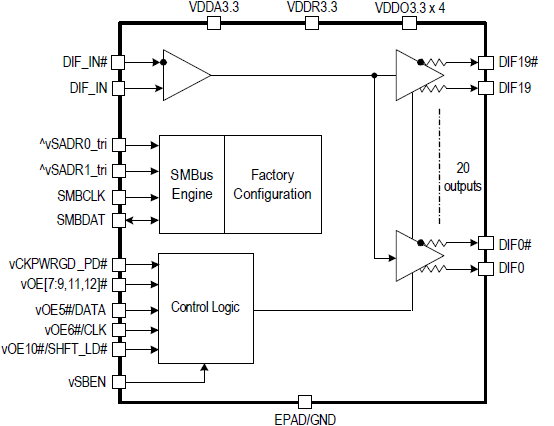

9QXL2001C PDF 20-Output Enhanced DB2000QL PCIe Clock Buffer	Fanout Buffer	Common, SRIS, SRNS	25G EDR, DB2000Q, IF-UPI, PCIe Gen1, PCIe Gen2, PCIe Gen3 and more...	20	LP-HCSL	85	1	720	3.3	Multiple SMBus addresses, Side Band interface	80	VFQFPN	6 x 6 x 0.85, 6.0 x 6.0 x 0.85
9SQ445 PDF CK440Q Lite PCIe Gen6 Server Clock Generator	Generator	Common, SRIS, SRNS	PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, PCIe Gen6	6	LP-HCSL	85	1	400	3.3	25MHz output(s), 100MHz output(s), PFT, Spread Spectrum	40	VFQFPN	5.0 x 5.0 x 0.9

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product
