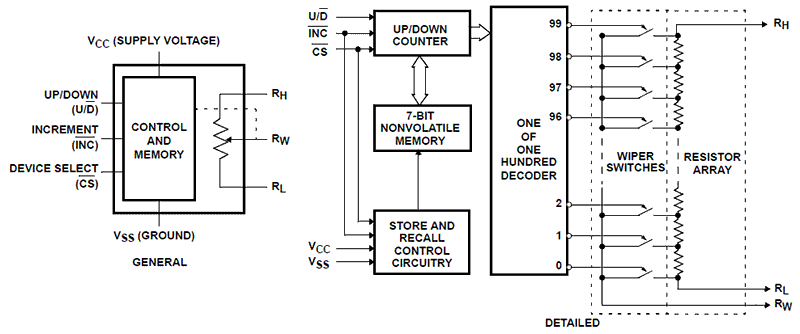

The X9317 is a digitally controlled potentiometer (XDCP™). The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a 3-wire interface. The potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation. The device can be used as a three-terminal potentiometer for voltage control or as a two-terminal variable resistor for current control in a wide variety of applications.
Features
- Solid-State Potentiometer
- 3-Wire Serial Up/Down Interface
- 100 Wiper Tap Points
- Wiper Position Stored in Nonvolatile Memory and Recalled on Power-up
- 99 Resistive Elements
- Temperature Compensated
- End-to-end Resistance Range ±20%
- Low Power CMOS
- VCC = 2.7V to 5.5V, and 5V ±10%
- Standby Current <5µA
- High Reliability
- Endurance, 100,000 Data Changes per Bit
- Register Data Retention, 100 years
- RTOTAL Values = 10kΩ, 50kΩ, 100kΩ
- Packages
- 8 Ld SOIC, TSSOP, and MSOP
- Pb-Free (RoHS Compliant)
Comparison
Applications
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
Support
Support Communities
Get quick technical support online from Renesas Engineering Community technical staff.
FAQs
-
What is the default wiper tap position for X93xx series of DCPs?
Question:What is the default wiper tap position for these parts? Answer: See table below: P/N # Taps Default Tap Position X9313 32 0 X9314 32 0 X9315 32 0 X9317 100 99 X9318 100 0 X9319 100 0
Jan 1, 1970 -
Can I use a DCP in a video application?
Yes. We have an application note AN1481 that can assist you. It uses X9317 in the circuit examples, but it applies to our other DCPs as well. By selecting the proper DCP, the circuit bandwidth can be extended to sufficiently support NTSC and PAL, as well as HDTV video. Link ...
