Analog Products

Renesas' portfolio of transistor arrays includes NPN, PNP and NPN-PNP combination transistor arrays based on our complementary UHF-1 SOI process. This portfolio also includes ultra-high frequency transistor arrays for VHF/UHF amplifiers, VHF/UHF mixers, IF converters, and synchronous detectors. Dual long-tailed pair transistor arrays and Gilbert Cell UHF transistor arrays are also available for wireless communication systems, radio and satellite communications, and high-performance instrumentation.

Product Selection Table

    Processing table
    Channels (#)
    NPN or PNP
    Bandwidth (MHz)
    FT (GHz)
    Offset Voltage (Max) (mV)
    V (BR) CBO (V)
    V (BR) CEO (V)
    V (BR) EBO (V)
    CCB (pF)
    CEB (pF)
    hFE
    ICBO (nA)
    ICEO (nA)
    IOS (nA)
    NF (dB)
    Supply Voltage Vcc Range
    Lead Count (#)
    Pkg. Type
    Part Number
    HFA3046
    Ultra High Frequency Transistor Arrays    		 5 NPN 5 5 18 12 6 0.5 0.5 70 0.1 2 5000 3.5 14 SOICN
    HFA3096
    Ultra High Frequency Transistor Arrays    		 5 NPN/PNP 8 5 18 12 6 0.5 0.5 70,35 0.1 2 3.5 16 SOICN
    HFA3101
    Gilbert Cell UHF Transistor Array    		 900 3V to 5V Single Supply 8 SOICN
    HFA3102
    Dual Long-Tailed Pair Transistor Array    		 2 NPN 10 5 18 12 6 0.3 0.2 70 0.1 5000 2.1 14 SOICN
    HFA3127
    Ultra High Frequency Transistor Arrays    		 5 NPN 5 5 18 12 6 0.5 0.5 70 0.1 2 3.5 16 QFN, SOICN

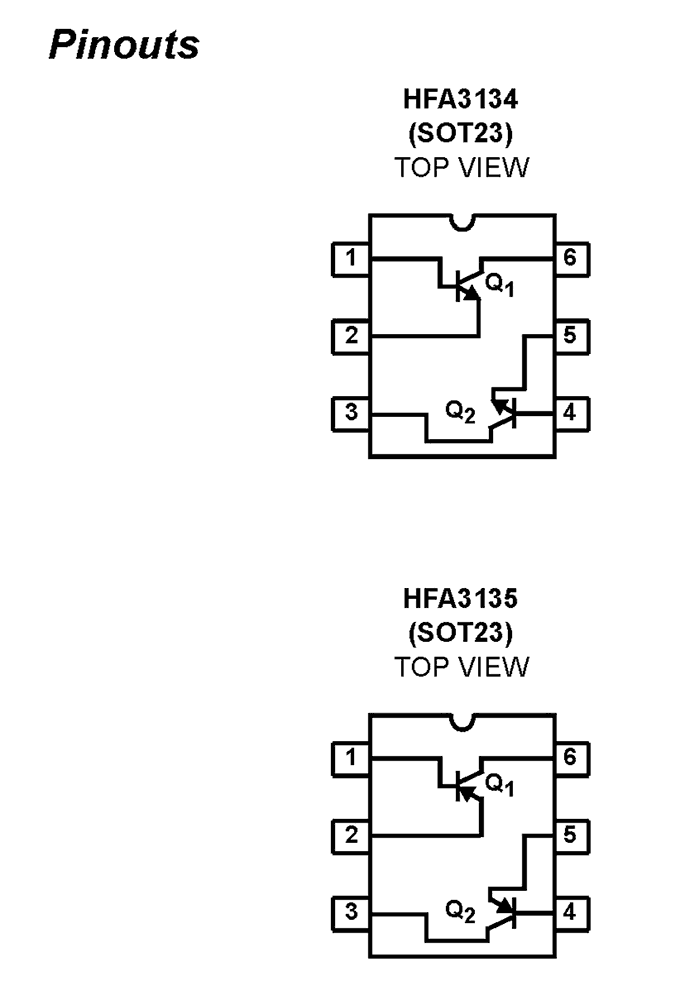

    HFA3134
    Ultra High Frequency Matched Pair Transistors    		 2 NPN 8.5 6 21 9 6 0.5 0.6 100 5 5 2.4 6 SOT23
    HFA3135
    Ultra High Frequency Matched Pair Transistors    		 2 PNP 7 6 21 14 5 0.4 0.55 57 5 5 4.6 6 SOT23
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Documentation

    Title
    Type     		Date
    AN5296: Application of the CA3018 Integrated-Circuit Transistor Array
    PDF 586 KB     		Application Note
    AN9723: Single-Ended to Differential Twisted Pair Driver
    PDF 239 KB     		Application Note
    AN9744: RF Up/Down Conversion Is Simplified By Linear Arrays
    PDF 299 KB     		Application Note
    AN9816: High Frequency AGC Has Digital Control
    PDF 238 KB     		Application Note
    AN9641: High-Frequency VGA Has Digital Control
    PDF 207 KB     		Application Note
    AN9528: 900MHz Down Converter Consumes Little Power
    PDF 204 KB     		Application Note
    6 items
