This solution is designed for a 20 – 28 cells battery management system (BMS) aimed at domestic battery-powered generators. The design uses Renesas’ multi-cell, single-IC battery manager in parallel to safely and effectively monitor battery life, as well as cost-optimized system control from the RA family of 32-bit MCUs. This combination creates a system for a battery-pack board capable of managing higher voltages and interfacing with a wide variety of load devices.

System Benefits​:

  • A complete large voltage (40V to 118V) self-contained BMS
  • System health checks/charge measurements
  • External communication port (RS-485)
  • Design is capable of passing common safety regulations

Target Applications:

  • Large powered motors (Chainsaws/HVAC)
  • Home/Solar backup systems
  • Light electric vehicles (LEV)

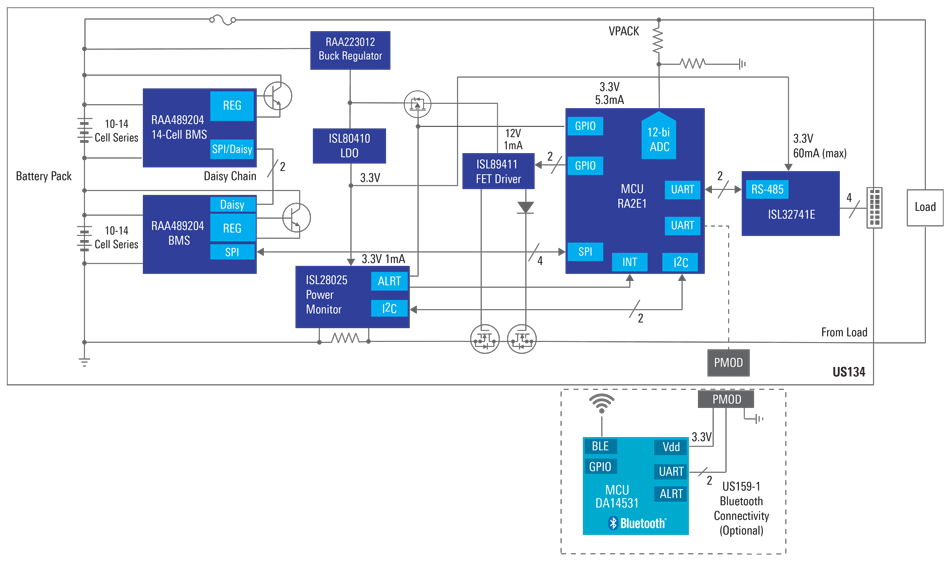

20-28 Cell Battery Pack (Up to 118V)



Related Products

Product Description Featured Document Ordering

AC/DC Regulator
RAA223012 700V AC/DC Regulator with Ultra-Low Standby Power and up to 2.5W Output Power Datasheet Buy/Sample

Battery Front End IC
RAA489204 Multi-Cell Daisy-Chainable Li-Ion Battery Manager Datasheet Buy/Sample

Digital Power Monitors
ISL28025 Precision Digital Power Monitor with Real Time Alerts Datasheet Buy/Sample

Linear Regulators (LDO)
ISL80410 40V, Low Quiescent Current, 150mA Linear Regulator Datasheet Buy/Sample

Microcontroller
RA2E1 48MHz Arm® Cortex®-M23 Entry Level General Purpose Microcontroller Datasheet Buy/Sample

MOSFET Driver
ISL89411 High-Speed, Dual Channel Power MOSFET Driver Datasheet Buy/Sample

RS-485 Transceiver
ISL32741E PROFIBUS Compliant 6kV VDE-Reinforced Isolated RS-485 Transceiver Datasheet Buy/Sample

System-on-Chip (SoC)
DA14531 World’s Smallest and Lowest Power Bluetooth 5.1 SoC Datasheet Buy/Sample
