Overview
Description

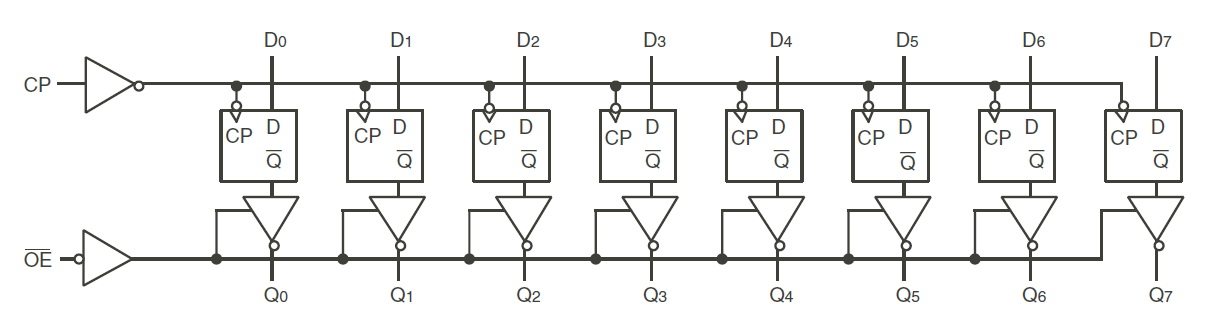

The 54FCT374T is an 8-bit register that consists of eight D-type flip-flops with a buffered common clock and buffered 3-state output control. When the output enable (OE) input is low, the eight outputs are enabled. When the OE input is high, the outputs are in the high-impedance state. The 54FCT374T operates at -55C to +125C. (For commercial version, see 74FCT374T)
Features
- Std., A, and C speeds
- Low input and output leakage <1 uA (max.)
- CMOS power levels
- True TTL input and output compatibility:– VOH = 3.3V (typ.)
- – VOL = 0.3V (typ.)
- High Drive outputs (-15mA IOH, 48mA IOL)
- Meets or exceeds JEDEC standard 18 specifications
- Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
- Power off disable outputs permit "live insertion"
- Available in 20 pin CERDIP and LCC packages
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF112 KB
|
Datasheet
|
||
PDF130 KB
|
Application Note
|
||
PDF143 KB
|
Application Note
|
||
PDF80 KB
|
Application Note
|
||
PDF1.22 MB
|
End Of Life Notice
|
||
PDF1.15 MB
|
End Of Life Notice
|
||
PDF41 KB
|
End Of Life Notice
|
||
PDF14 KB
|
End Of Life Notice
|
||
PDF28 KB
|
End Of Life Notice
|
||
PDF27 KB
|
Product Change Notice
|
||
PDF24 KB
|
Product Change Notice
|
||
PDF18 KB
|
Product Change Notice
|
||
PDF38 KB
|
Product Change Notice
|
||
PDF16 KB
|
Product Change Notice
|
||
PDF47 KB
|
Product Change Notice
|
||
PDF35 KB
|
Product Change Notice
|
||
PDF42 KB
|
Product Change Notice
|
||
PDF80 KB
|
Product Change Notice
|
||
PDF21 KB
|
Product Change Notice
|
||
PDF44 KB
|
Product Change Notice
|
||
PDF196 KB
|
Product Change Notice
|
||
PDF109 KB
|
Product Change Notice
|
||
PDF116 KB
|
Product Change Notice
|
||
PDF26 KB
|
Product Change Notice
|
||
PDF98 KB
|
Product Change Notice
|
||
PDF130 KB
|
Product Change Notice
|
||
PDF40 KB
|
Product Change Notice
|
||
PDF16 KB
|
Product Change Notice
|
||
PDF274 KB
|
Product Change Notice
|
||
PDF24 KB
|
Product Change Notice
|
||
PDF44 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| CDIP | 20 | M | No | Tube |
