Overview

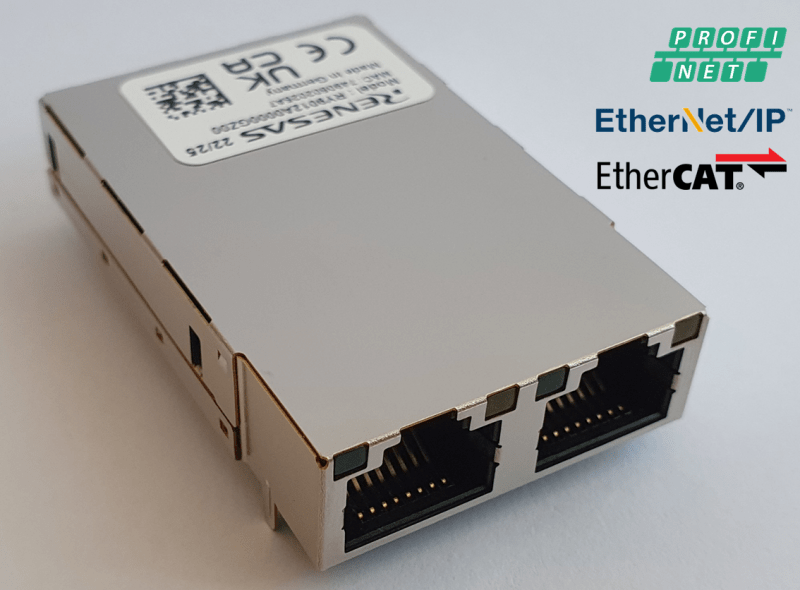

The R-IN32M3 module comes with all the necessary hardware and software required for industrial Ethernet support, including PROFINET, EtherNet/IPTM and EtherCAT® protocol stack. Software updates can also be used to update protocol specifications, so you can always get products that meet the latest protocol specifications to market quickly.

Get Started

R-IN32M3 Module
R-IN32M3 Module
  • Multi-protocol support for industrial Ethernet protocols PROFINET RT (MRP support), EtherNet/IP (DLR support) and EtherCAT
  • Modbus TCP supported by host CPU control
  • The protocol stack is built into the module and can be selected by specifying from the host CPU. (exclusive selection)
  • 2-port RJ45 Ethernet connector, 100Mbp/s (full duplex). Built-in switches for a variety of network topologies
  • Host CPU communication via SPI communication
  • Various host CPU sample apps are available for reducing development effort
    • EK-RA6M3/EK-RA6M4
    • Synergy SK-S7G2
    • RX66T
    • RL78/G14 Fast Prototyping Board
  • Log and configuration management via the “Management Tool” with integrated easy master capability
Industrial Ethernet Connected Sensor
Industrial Automation Solution with Industrial Ethernet Module

Applications

  • Industrial network slave applications
    • Sensors and transmitters
    • Gateways
    • Operator Terminals
    • Remote I/O solutions

Documentation

Title Type Date
R-IN32M3 Module (RY9012A0) Datasheet Rev.2.04
PDF689 KB日本語, 简体中文
Datasheet
R-IN32M3 Module Firmware Update Guide Rev.1.01
PDF1.98 MB日本語
Application Note
R-IN32M3 Module Sample Application for RA Rev.1.03
PDF4.22 MB日本語
Application Note
R-IN32M3 Module Sample Application for RL78/G14 Rev.1.03
PDF3.52 MB日本語
Application Note
R-IN32M3 Module Sample Application for RX66T Rev.1.03
PDF4.67 MB日本語
Application Note
R-IN32M3 Module User's Implementation Guide Rev.1.02
PDF3.65 MB日本語
Application Note
Renesas R-IN32M3 Module Sample Package Rev.1.03
PDF181 KB日本語
Related Files:
Application Note
Management Tool Instruction Guide Rev.1.01
PDF3.79 MB日本語
Application Note
Modbus TCP Start-Up Manual Rev.2.00
PDF1.95 MB日本語
Application Note
Software PLC Guide: CODESYS for EtherCAT Rev.1.01
PDF1.03 MB日本語
Application Note
Software PLC Guide: CODESYS for EtherNet/IP Rev.1.01
PDF1.18 MB日本語
Application Note
Software PLC Guide: CODESYS for PROFINET Rev.1.01
PDF1.14 MB日本語
Application Note
Software PLC Guide: TwinCAT Rev.2.01
PDF1.23 MB日本語
Application Note
Renesas R-IN32M3, RZ/T1, and TPS-1 Group PROFINET PLC Connection Guide Rev.1.01
PDF1.86 MB日本語
Application Note
Industrial Networks Brochure
PDF7.35 MB日本語
Brochure
Adaptor Board with Renesas R-IN32M3 module Rev.1.02
PDF1.69 MB日本語
Manual - Development Tools
R-IN32M3 Module (RY9012A0) User's Manual: Hardware Rev.2.04
PDF1.37 MB日本語, 简体中文
Manual - Hardware
R-IN32M3 Module (RY9012A0) User's Manual: Software Rev.2.05
PDF1.91 MB日本語, 简体中文
Manual - Software
Renesas R-IN32M3 Module (RY9012A0) Industrial Ethernet Module Solution
PDF1.57 MB日本語, 简体中文
Quick Start Guide
Rapid and Easy Industrial Ethernet Development
PDF841 KB日本語, 简体中文
White Paper

Design & Development

Sample Code

Title Type Date
Renesas R-IN32M3 Module Sample Package Rev.1.03

[Software=RX Driver Package|V1.37;RA Flexible Software Package|v4.4],[Toolchains=CC-RX|V3.05;GNU Arm Embedded|10.3.1.20210824;GNURX|8.3.0.202202;GNURL|4.9.2.202201]

ZIP396.01 MB日本語
Related Files:
Application: Industrial
Function: Communication Interface, Application Example, Evaluation Kit, Software Package, Protocol
Compiler: GNU ARM Embedded, CC-RX, GNURL78
IDE: e2 studio
Sample Code
Renesas R-IN32M3 Module (RY9012A0) ex-Sample Package Rev.3.04 - Sample Code
ZIP346.51 MB日本語
Application: Industrial
Function: Communication Interface
Compiler: CC-RX, GNU
IDE: e2 studio
Sample Code

Boards & Kits

YCONNECT-IT-I-RJ4501

YCONNECT-IT-I-RJ4501

Starter
Order Now

R-IN32M3 Module Adapter Board

The Renesas R-IN32M3 Module Solution Kit is the perfect “accelerator” for developers who are new to the world of Industrial Ethernet. The certified hardware and...

Featured Documents:
R-IN32M3 Module Sample Application for RA Rev.1.03
SEMB1320 CPU Card With R-IN32M3 Module

SEMB1320

Starter
Order Now

CPU Card With R-IN32M3 Module - Solution Kit for R-IN32M3 Module

All-in-one evaluation board with R-IN32M3 module and host CPU RX66T. Easy to start the evaluate and application development of industrial Ethernet such as PROFINET,...

Featured Documents:
R-IN32M3 Module Sample Application for RX66T Rev.1.03

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    MOQ
    Buy / Sample
    Part Number
    RY9012A0000GZ00#002
    play_circleActive
    memory
    view_in_ar
    		1
    RY9012A0000GZ00#001
    play_circleActive
    memory
    view_in_ar
    		30
