Overview
Description

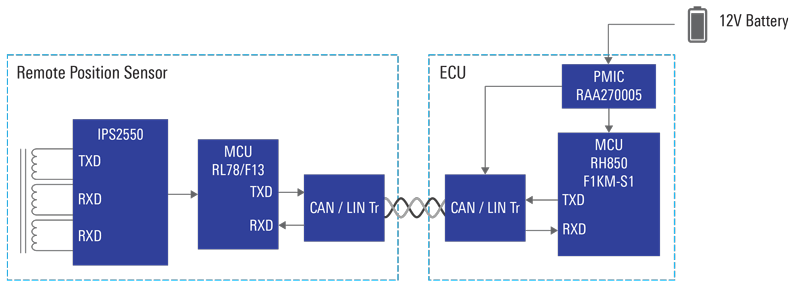

This Renesas solution can reduce the influence of noise and parasitic components caused by long distance communication in vehicles that use the new car E/E architecture with centralized ECUs. Remote sensing over longer distances can be achieved by transferring sensing data over CAN or LIN. This remote sensing solution enables long distance transfer by connecting the ECU and the inductive position sensor sensing to the throttle handle, console and gas pedal.
System Benefits:
- Supports full bidirectional communication (sensor re-configuration over lifetime, enhanced data security, OTA updates)
- Reduces wiring by supplying multiple sensors multiplexed on one interface
- Enables robust and secure communication from sensor to ECU
- MCU software available
Related Products
| Product | Description | Featured Document | Ordering |
|---|---|---|---|
| Microcontroller | |||
| RH850/F1KM-S1 | 32-Bit High-End Automotive Microcontrollers Ideal for Body Applications | User's Manual | Buy/Sample |
| RL78/F13 | 16-Bit MCU with Ultra-Low Power and Built-in CAN/LIN (20 - 80 pins, 13 - 68 GPIOs) | User's Manual | Buy/Sample |
| Power Management IC (PMIC) | |||
| RAA270005KFP | PMIC for Automotive RH850 MCUs | Datasheet | Contact Sales |
| Inductive Position Sensor (IPS) | |||
| IPS2550 | Inductive Position Sensor for High-Speed Motor Commutation (Automotive) | Datasheet | Buy/Sample |
Related Boards & Kits
Evaluation Kit for IPS2550
The IPS2550STKIT is a compact and intuitive evaluation kit that enables fast and easy evaluation of the IPS2550, the automotive inductive position sensor for high-speed motor commutation. This evaluation kit mainly consists of a communication board and an application module. The communication board, which runs the IPS2550 GUI and is connected to the IPS2550 application module, can display the sine and cosine signals provided by the inductive position sensor.
Featured Documents:
RH850/F1KM-S1 Starter Kit
The ‘RH850/F1KM-S1 Starter Kit’ serves as a simple and easy to use platform for evaluating the features and performance of Renesas Electronics’ 32-bit RH850/F1KM-S1 microcontrollers.
Featured Documents:
RL78/F13 Target Board QB-R5F10BMG-TB
The QB-R5F10BMG-TB is a target board used for evaluating microcontroller operations, using the E1, the Renesas Electronics on-chip debug emulator with programming function.
Featured Documents:
