Mass flow controllers measure the mass and flow rate of a fluid, as well as control the flow rate. These are used for gas control of semiconductor manufacturing equipment and burners. The RX72M 32-bit microcontroller (MCU) has a large amount of built-in memory and EtherCAT and control area network (CAN) interfaces. With this reference design, the system control and industrial network can be controlled with one chip.
System Benefits
- The RX72M MCU has an EtherCAT slave controller and CAN, and supports industrial networks
- Provides industrial network solutions, including EtherCAT and DeviceNet sample software

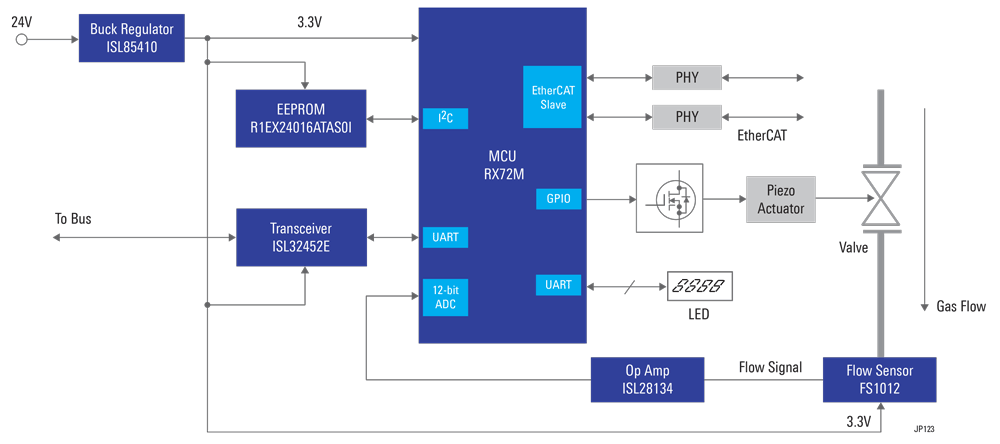

System Block Diagram
Related Products
| Product | Description | Featured Document | Ordering |
|---|---|---|---|
| Microcontroller | |||
| RX72M | High-performance 32-bit microcontroller for industrial network solutions | Datasheet | Select Specific Device |
| Buck Regulator | |||
| ISL85410 | Wide VIN 1A Synchronous Buck Regulator | Datasheet | Buy/Sample |
| Sensor | |||
| FS1012 | Gas or Liquid Flow Sensor Module | Datasheet | Buy/Sample |
| Op Amp | |||
| ISL28134 | 5V Ultra-Low Noise, Zero Drift Rail-to-Rail Precision Op Amp | Datasheet | Buy/Sample |
| Transceiver | |||
| ISL32452E | ±60V Fault Protected, 3.3V to 5V, ±20V CMR, 250kbps Half-duplex RS-485/RS-422, ±15kV ESD | Datasheet | Buy/Sample |
| EEPROM | |||
| R1EX24016ATAS0I | Two-wire serial interface 16k EEPROM (2-kword × 8-bit) | Datasheet | Buy/Sample |
