64K x 18 Sync, 3.3V Dual-Port RAM, Pipelined, Interleaved I/O's
ページセクションへ移動：
概要

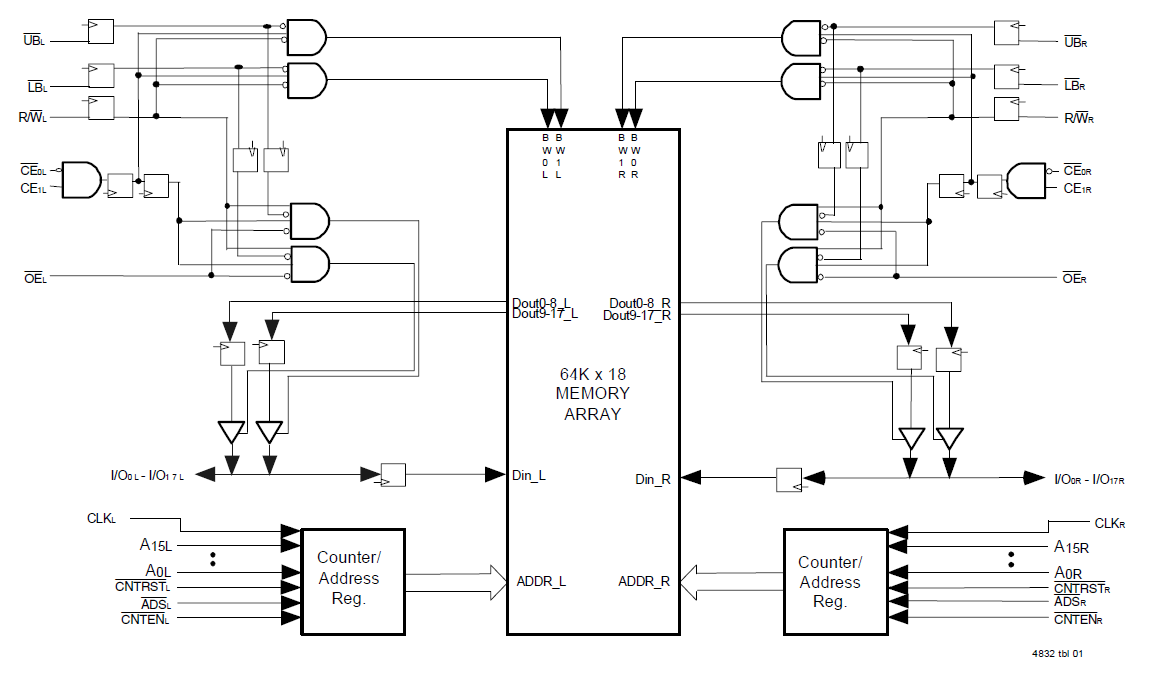

Description
The 70V3389 is a high-speed 64K x 18 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70V3389 can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 3.3V.
特長
- Dual-Port allows simultaneous access of the same memory location
- Pipelined output mode
- Counter enable and repeat features
- Dual chip enables allow for depth expansion without additional logic
- Full synchronous operation on both ports
- Separate byte controls for multiplexed bus and bus matching compatibility
- LVTTL- compatible, single 3.3V (±150mV) power supply for core
- LVTTL compatible, selectable 3.3V (±150mV) or 2.5V (±100mV) power supply for I/Os and control signals on each port
- Available in a 256-pin BGA, 208-pin fpBGA and 128-pin TQFP packages
- Industrial temperature range (-40C to +85C) is available
ドキュメント
| タイトル | 分類 | 日付 | |
|---|---|---|---|
PDF374 KB
|
データシート
|
||
PDF198 KB
|
アプリケーションノート
|
||
PDF156 KB
|
アプリケーションノート
|
||
PDF225 KB
|
アプリケーションノート
|
||
PDF97 KB
|
アプリケーションノート
|
||
PDF154 KB
|
アプリケーションノート
|
||
PDF112 KB
|
アプリケーションノート
|
||
PDF645 KB
|
EOL通知
|
||
PDF24 KB
|
製品変更通知
|
||
PDF252 KB
|
製品変更通知
|
||
PDF194 KB
|
製品変更通知
|
||
PDF164 KB
|
製品変更通知
|
||
PDF729 KB
|
製品変更通知
|
||
PDF290 KB
|
製品変更通知
|
||
PDF80 KB
|
製品変更通知
|
||
PDF38 KB
|
製品変更通知
|
||
PDF26 KB
|
製品変更通知
|
||
PDF197 KB
|
製品変更通知
|
||
PDF150 KB
|
製品変更通知
|
||
PDF65 KB
|
製品変更通知
|
||
PDF48 KB
|
製品変更通知
|
||
PDF274 KB
|
製品変更通知
|
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
型名 |
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
ご購入 / サンプル |
|---|---|---|---|---|---|---|
| CABGA | 256 | C | No | Tray | サンプルを入手, | |
| CABGA | 256 | C | No | Reel | ||
| CABGA | 256 | C | Yes | Tray | サンプルを入手, | |
| CABGA | 208 | C | No | Tray | サンプルを入手, | |
| CABGA | 208 | C | No | Reel | ||
| CABGA | 256 | C | No | Tray | サンプルを入手, | |
| CABGA | 256 | C | No | Reel | ||
| CABGA | 256 | I | No | Tray | サンプルを入手, | |
| CABGA | 256 | I | No | Reel | ||
| CABGA | 208 | C | No | Tray | サンプルを入手, | |
| CABGA | 208 | C | No | Reel | ||
| CABGA | 208 | I | No | Tray | サンプルを入手, | |
| CABGA | 208 | I | No | Reel | ||
| CABGA | 256 | C | No | Tray | サンプルを入手, | |
| CABGA | 256 | C | No | Reel | ||
| CABGA | 208 | C | No | Tray | サンプルを入手, | |
| CABGA | 208 | C | No | Reel |
