512K x 18, 3.3V/2.5V Dual-Port RAM, Interleaved I/O's
ページセクションへ移動：
概要
説明

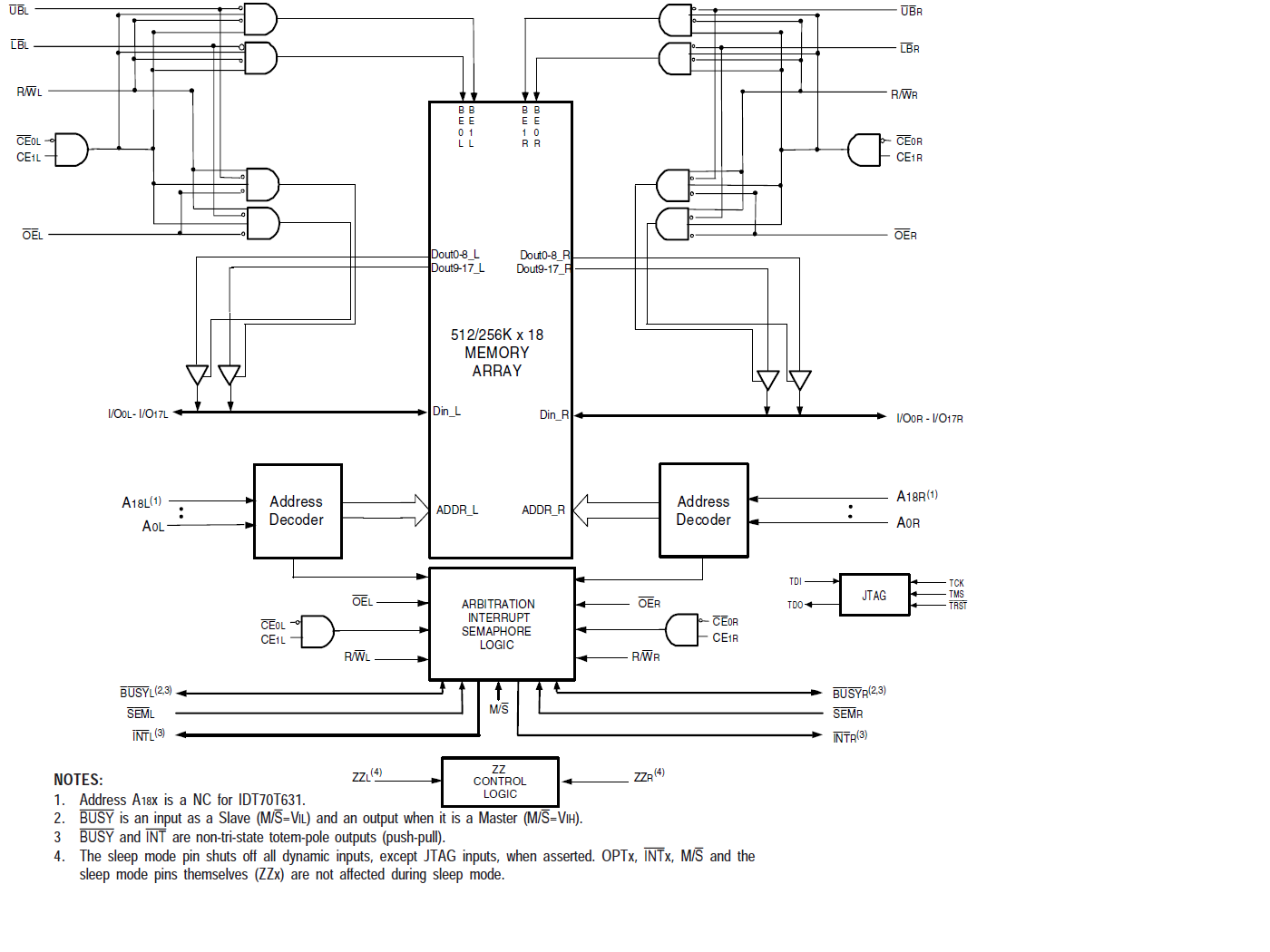

The 70T633 is a high-speed 512K x 18 Asynchronous Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/ SLAVE Dual-Port RAM for 36-bit-or-more word system which would result in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by the chip enables (either CE0 or CE1) permit the on-chip circuitry of each port to enter a very low standby power mode.
特長
- Dual-Port allows simultaneous access of the same memory location
- RapidWrite Mode simplifies high-speed consecutive write cycles
- Dual chip enables allow for depth expansion without external logic
- Easily expands data bus width to 36 bits or more using the Master/Slave select when cascading more than one device
- Busy and Interrupt Flags
- On-chip port arbitration logic
- Full hardware support of semaphore signaling between ports on-chip
- Fully asynchronous operation from either port
- Separate byte controls for multiplexed bus and bus matching compatibility
- Sleep Mode Inputs on both ports
- Includes JTAG functionality
- Single 2.5V (±100mV) power supply for core
- LVTTL-compatible, selectable 3.3V (±150mV)/2.5V (±100mV) power supply for I/Os and control signals on each port
- Available in a 256-ball BGA and 208-ball fpBGA
- Industrial temperature range (–40C to +85C) is available
製品比較
アプリケーション
ドキュメント
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日付 |
| データシート | PDF 425 KB | |
| ガイド | PDF 123 KB | |
| 製品変更通知 | PDF 398 KB | |
| 製品変更通知 | PDF 24 KB | |
| EOL通知 | PDF 70 KB | |
| 製品変更通知 | PDF 194 KB | |
| アプリケーションノート | PDF 129 KB | |
| アプリケーションノート | PDF 197 KB | |
| アプリケーションノート | PDF 182 KB | |
| アプリケーションノート | PDF 183 KB | |
| アプリケーションノート | PDF 97 KB | |
| アプリケーションノート | PDF 284 KB | |
| 製品変更通知 | PDF 729 KB | |
| 製品変更通知 | PDF 290 KB | |
| 製品変更通知 | PDF 80 KB | |
| 製品変更通知 | PDF 38 KB | |
| 製品変更通知 | PDF 26 KB | |
| 製品変更通知 | PDF 197 KB | |
18 items
|
||
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
ご購入 / サンプル |
|
|---|---|---|---|---|---|---|
| 型名 | ||||||
| CABGA | 256 | C | No | Tray | ||
| CABGA | 256 | C | No | Reel | ||
| CABGA | 256 | I | Yes | Tray | サンプルを入手, | |
| CABGA | 256 | I | No | Tray | サンプルを入手, | |
| CABGA | 256 | I | No | Reel | ||
| CABGA | 208 | C | No | Tray | ||
| CABGA | 208 | C | No | Reel | ||
| CABGA | 208 | C | Yes | Tray | ||
| CABGA | 208 | C | Yes | Reel | ||
| CABGA | 208 | I | No | Tray | ||
| CABGA | 208 | I | No | Reel | ||
| CABGA | 256 | C | No | Tray | ||
| CABGA | 256 | C | No | Reel | ||
| CABGA | 256 | I | No | Tray | ||
| CABGA | 256 | I | No | Reel | ||
| CABGA | 208 | I | Yes | Tray | サンプルを入手, | |
| CABGA | 208 | I | Yes | Reel | ||
| CABGA | 208 | I | No | Tray | ||
| CABGA | 208 | I | No | Reel | ||
| CABGA | 256 | C | No | Tray | ||
| CABGA | 256 | C | No | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
サポート
Renesas Samples
注文可能な製品番号を選択
| 発注型名 | サンプル |
|---|---|
| 70T633S10BCGI | Availability |
| 70T633S10BCI | Availability |
| 70T633S12BFGI | Availability |
