Description
The 7026 is a high-speed 16K x 16 Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit-or-more word systems. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535 QML is available.
特長
- True Dual-Ported memory cells which allow simultaneous access of the same memory location
- Separate upper-byte and lower-byte control for multiplexed bus compatibility
- 7026 easily expands data bus width to 32 bits or more
- On-chip port arbitration logic
- Full on-chip hardware support of semaphore signaling between ports
- Fully asynchronous operation from either port
- TTL-compatible, single 5V (±10%) power supply
- Available in 84-pin PGA and PLCC packages
- Industrial temperature range (-40C to +85C) is available
ドキュメント
| タイトル | 分類 | 日付 | |
|---|---|---|---|
PDF408 KB
|
データシート
|
||
PDF197 KB
|
アプリケーションノート
|
||
PDF198 KB
|
アプリケーションノート
|
||
PDF156 KB
|
アプリケーションノート
|
||
PDF183 KB
|
アプリケーションノート
|
||
PDF97 KB
|
アプリケーションノート
|
||
PDF1.22 MB
|
EOL通知
|
||
PDF1.15 MB
|
EOL通知
|
||
PDF938 KB
|
EOL通知
|
||
PDF909 KB
|
EOL通知
|
||
PDF645 KB
|
EOL通知
|
||
PDF24 KB
|
製品変更通知
|
||
PDF223 KB
|
製品変更通知
|
||
PDF729 KB
|
製品変更通知
|
||
PDF1.13 MB
|
製品変更通知
|
||
PDF80 KB
|
製品変更通知
|
||
PDF44 KB
|
製品変更通知
|
||
PDF38 KB
|
製品変更通知
|
||
PDF26 KB
|
製品変更通知
|
||
PDF134 KB
|
製品変更通知
|
||
PDF40 KB
|
製品変更通知
|
||
PDF274 KB
|
製品変更通知
|
||
PDF19 KB
|
製品変更通知
|
||
PDF44 KB
|
製品変更通知
|
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
型名 |
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
ご購入 / サンプル |
|---|---|---|---|---|---|---|
| PGA | 84 | C | No | Tray | サンプルを入手, | |
| PGA | 84 | C | No | Tray | ||
| PGA | 84 | M | No | Tray |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

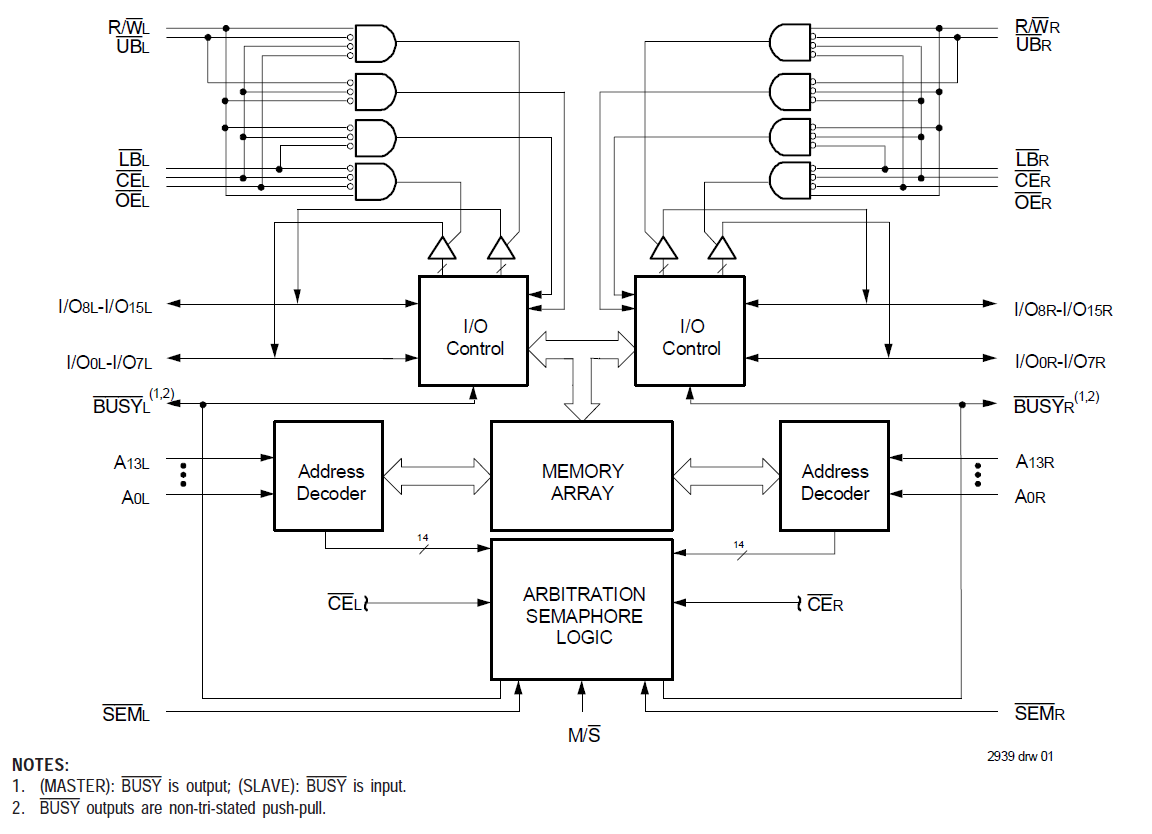

- Chip icon next to the right of the document icon in row: View the block diagram for this product
