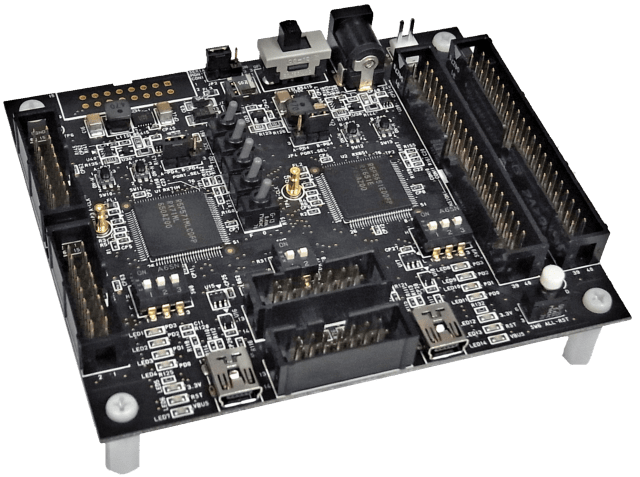

The industrial automation functional safety reference board enables evaluation of Renesas safety software and contains detailed design and safety analysis based on Renesas’ experience in safety system specifications and implementation. This reference board can be used as a template to shorten system development time.
