Gas Mass Flow Sensor Pmod™ Board (Renesas Quick-Connect IoT)
Jump to Page Section:
Overview
Description

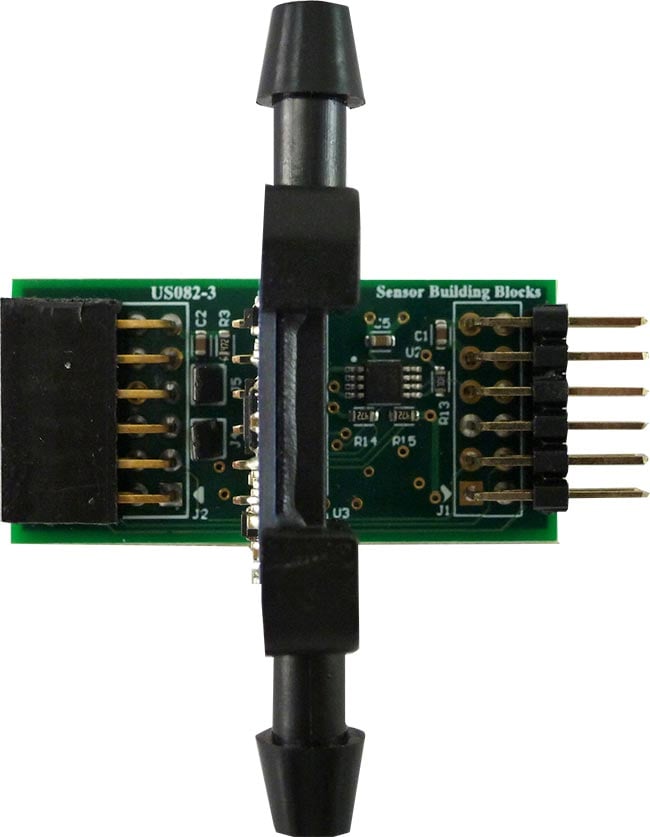

The US082-FS2012EVZ board enables quick prototyping of the FS2012 mass air flow sensor module in a custom system design. The board provides a standard Pmod™ Type 6A (Extended I2C) connection for the on-board sensor to plug into any desired MCU evaluation kit with a matching connector.
The US082-FS2012EVZ features Pmod connectors on both sides of the board to allow additional Type 6/6A boards to be connected in a daisy-chained solution with multiple sensors on the same MCU Pmod connector. Thanks to the standard connector and software support, the US082-FS2012EVZ is ideal for Renesas’ Quick-Connect IoT to rapidly create an IoT system.
Features
- FS2012 sensor sample mounted:
- Thermo-transfer (calorimetric) principle utilizes MEMS thermocouples to measure flow, which provide excellent signal-to-noise ratio
- Resistant to surface contamination
- No cavity to cause clogging
- Resistant to vibration and pressure shock
- High-temperature flow housing
- Standardized Type 6A Pmod connector supports I2C Extended interface
- Dual connectors allow pass-through signals for daisy-chained solutions
Applications
Design & Development
Software & Tools
Software & Tools
| Quick-Connect IoT PlatformQuick-Connect IoT platform enables fast prototyping by providing compatible hardware and software building blocks. | Other Hardware | Renesas |
| Sensor Software Modules for Renesas MCU PlatformsMiddleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. | Sensor | Renesas |
Product Options
Processing table
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
Lab on the Cloud
Renesas' Lab on the Cloud is an online environment where Renesas solutions, including popular evaluation boards, winning combinations and software, are hosted in a remote lab that customers access and test online.
Gas Flow Sensor Solution
This enables quick prototyping of the FS2012 mass air flow sensor module, where users can control the flow rate and capture the reading and linearity of sensor data.
