DA14531-00FXDEVKT-P

Active

SmartBond TINY DA14531 Bluetooth Low Energy 5.1 System-on-Chip Development Kit Pro

Order Now
UM-B-114: DA14531 Development Kit Pro Hardware User Manual

Overview

The DA14531 SmartBond TINY™ Development Kit Pro is the most ideal way to quickly and easily get started developing applications and products using the DA14531 Bluetooth® Low Energy (LE) system-on-chip SoC.

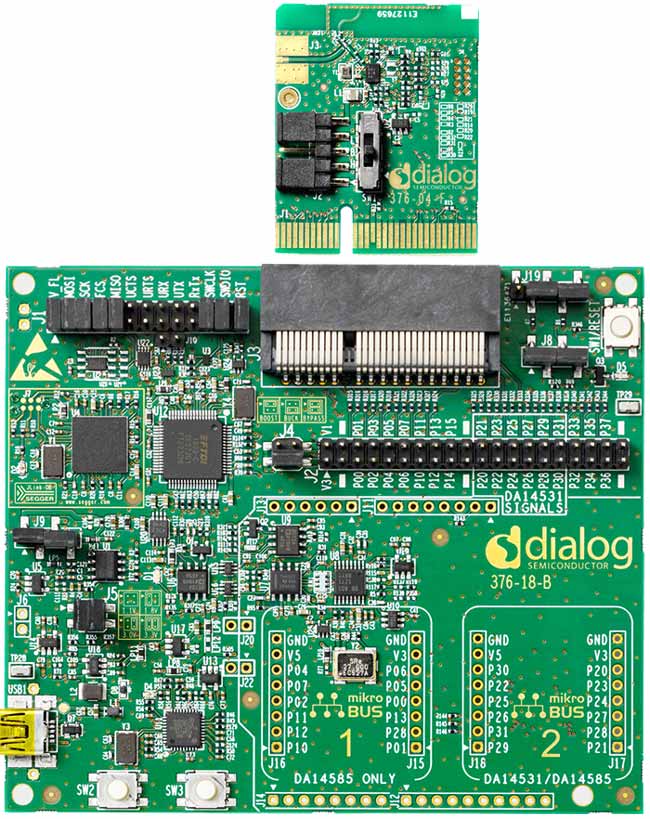

DA14530/1 Development Kit - Pro
DA14530/1 Development Kit - Pro
  • Two mikroBUS™ header interfaces and one Arduino interface enabling you to expand the functionality of the kits with hundreds of available click boards and shields
  • Embedded printed antenna and SMA connector capability enables you to perform RF measurements
  • Onboard 2-Mbit SPI data Flash
  • Onboard Segger chip gives you complete debugging capability
  • One user LED
  • Two user buttons and one reset button
  • Mini USB port to provide power and data interfacing to a PC
  • Support for coin cell battery
  • Software
    • SmartSnippets™ Studio, to profile and fine tune the power consumption of your application
    • Support Keil® Integrated Development Environment
    • Free Software Development Kit (SDK) for peripheral and Bluetooth LE examples
    • Set of software examples build on the top of the SDK available for download

Documentation

Featured Documentation
Type Title Date
Manual - Development Tools
UM-B-114: DA14531 Development Kit Pro Hardware User Manual
PDF 7.50 MB
Manual - Development Tools
DA1453x Getting Started with the Pro Development Kit
简体中文
Schematic
DA14531 Pro Development Kit Mother Board Schematic
PDF 270 KB
Schematic
DA14531 QFN24 Pro Development Kit Daughter Board Schematic
PDF 146 KB
Schematic
DA14531 WLCSP17 Pro Development Kit Daughter Board Schematic
PDF 101 KB
Other
DA14531 FCGQFN24 Symbols & footprints
Other
DA14531 17-XFBGA, WLCSP Symbols & footprints
7 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
DA14531 DEVKT -Pro Daughterboard QFN24: BOM-, Layout-, Design-, Gerber-files
ZIP 1.65 MB
PCB Design Files
DA14531 DEVKT -Pro Daughterboard WLCSP17: BOM-, Layout-, Design-, Gerber-files
ZIP 1.62 MB
PCB Design Files
DA14531 DEVKT -Pro MAINBOARD: Electrical Schematic, BOM-, Layout-, Design-, Gerber- files
ZIP 7.23 MB
3 items
DA14530 Daughter Board

DA14530-00FXDB-P

Development
Learn More

SmartBond TINY DA14530 Bluetooth Low Energy Dev Kit Pro - FCGQFN24 Daughterboard

The DA14530 SmartBond TINY™ Development Kit Pro (DA14530-00FXDEVKT-P) is the most ideal way to quickly and easily get started developing applications and products using...

Featured Documents:
DA14530 datasheet
DA14530 Daughter Board

DA14531-01FXDB-P

Development
Learn More

SmartBond TINY DA14531-01 Bluetooth Low Energy Dev Kit Pro - FCGQFN24 Daughterboard

The DA14531-01FXDB-P is the FCGQFN24 daughterboard for the DA14531 Development Kit Pro's motherboard.

The DA14531-01 SmartBond TINY™ Development Kit Pro...

Featured Documents:
UM-B-114: DA14531 Development Kit Pro Hardware User Manual
DA14531 Development Kit Pro - WL-CSP Daughterboard

DA14531-00OGDB-P

Development
Learn More

SmartBond TINY DA14531 Bluetooth Low Energy 5.1 System-on-Chip Development Kit Pro - WL-CSP Daughterboard

The DA14531 SmartBond TINY™ Development Kit Pro (DA14531-00FXDEVKT-P) is the most ideal way to quickly and easily get started developing applications and products using...

Featured Documents:
UM-B-114: DA14531 Development Kit Pro Hardware User Manual

Product Options
