Overview
Description

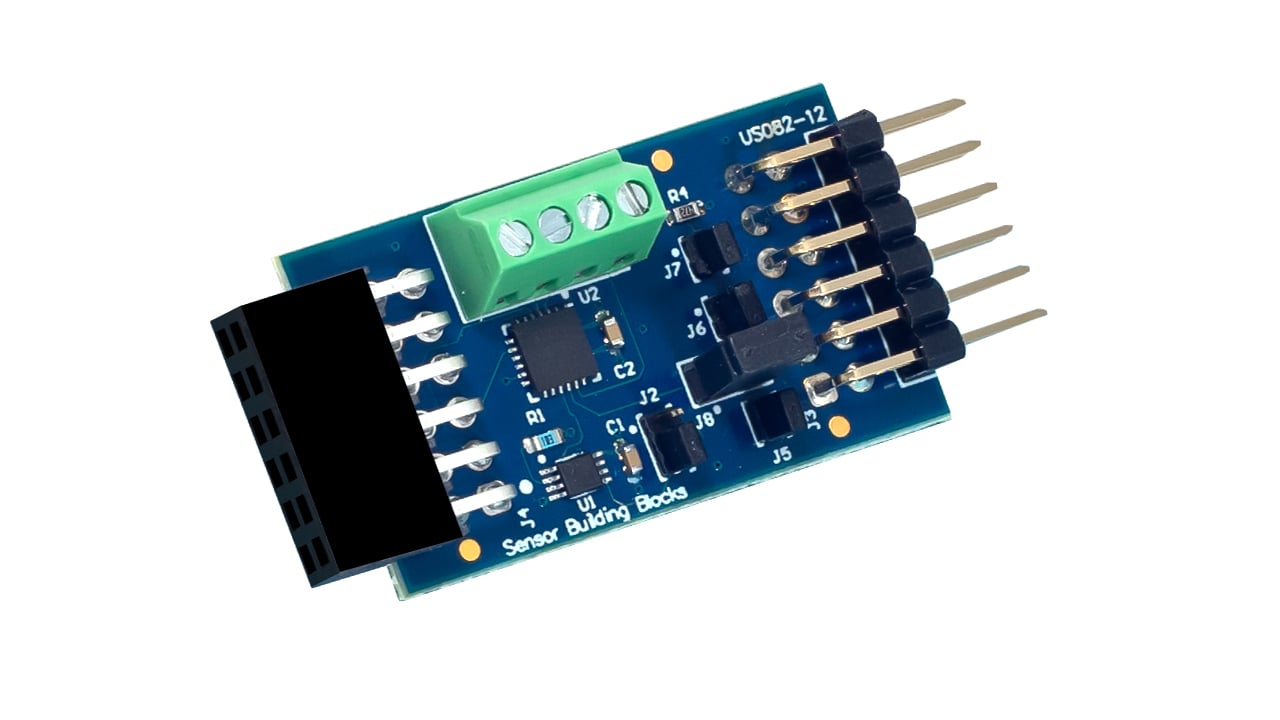

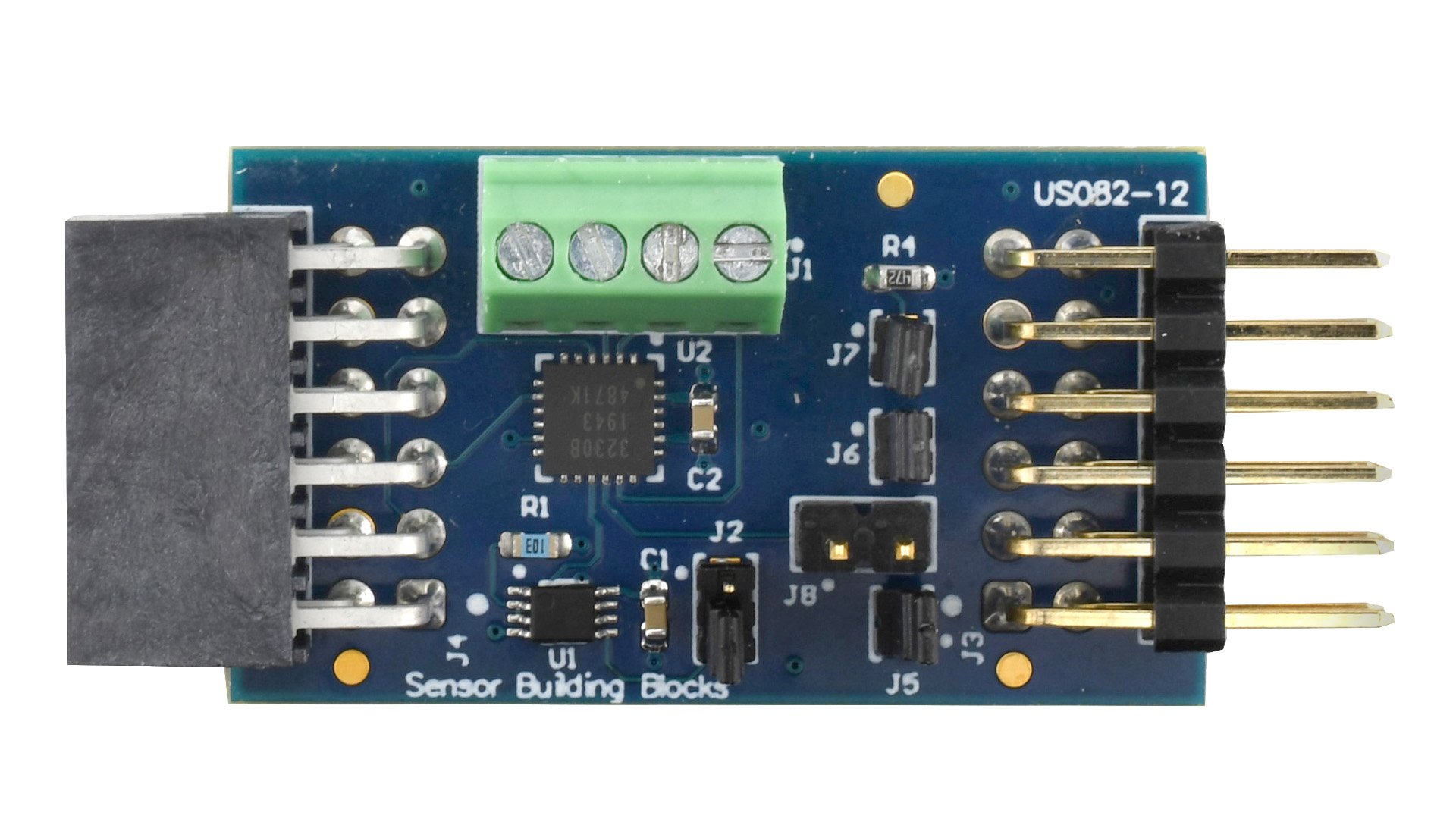

The US082-ZSSC3230EVZ Pmod™ board demonstrates the functionality and performance of the ZSSC3230, a CMOS integrated circuit for accurate capacitance-to-digital conversion and sensor-specific correction of capacitive sensor signals.
Features
- Capacitive input range 0pF to 30pF
- Capacitive offset compensation 0pF to 15pF
- Internal auto-compensated temperature sensor, not stress sensitive
- High sampling rate with 2ms at 14-bit resolution
- Standardized type 6A Pmod connector supports
- I²C/SMBus extended interface
- Dual connectors allow pass-through signals for daisy-chained solution
- Software support in e² studio minimizes development time with one-click code generation
Applications
