GreenPAK SLG46116 20-Pin DIP Prototyping Board

Order Now
SLG46116V DIP Proto Board Quick Start Guide

Overview

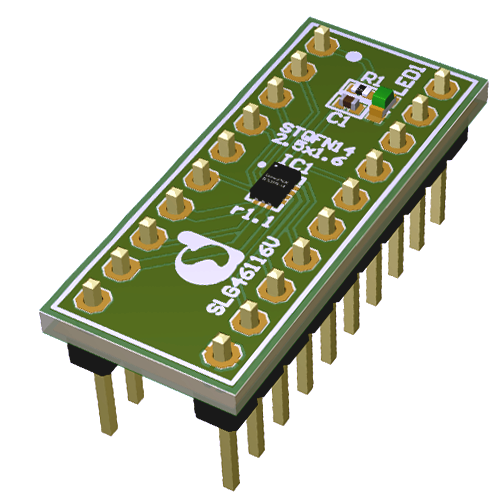

The SLG46116V-DIP 20-pin DIP prototyping board is perfect for breadboarding and fast prototypes. It requires the DIP Adapter (SLG4SA-DIP) to use it with the Advanced Development Board.

SLG46116V-DIP
SLG46116V-DIP
  • Low cost
  • Simplifies prototyping of Surface Mount Technology (SMT) ICs
  • Optional VDD LED indicator
  • Decoupling capacitor included

Documentation

Featured Documentation
Type Title Date
Manual - Development Tools
SLG46116V DIP Proto Board Quick Start Guide
PDF 307 KB
Manual - Development Tools
GreenPAK DIP Development Platform User Guide
PDF 1.50 MB
Manual - Development Tools
GreenPAK Advanced Development Platform User Guide
PDF 2.35 MB
3 items
