Overview
Description
This is a single port reference design for implementing battery systems with 2 to 7 cells connected in series. It supports two modes: one where power is supplied solely from the USB Type-C® port, and another that enables a power bank function in combination with a lithium-ion battery with a Battery Management System (BMS).
Due to losses in the cable, onboard charger, and board, the USB Power Delivery (USB PD) port manager compensates the USB Type-C input levels to achieve optimal battery charging operation. Switches on this evaluation board allow you to select the number of batteries in series and the charging current.
The firmware for this evaluation board is generated using an instruction tool called VIDWriter.

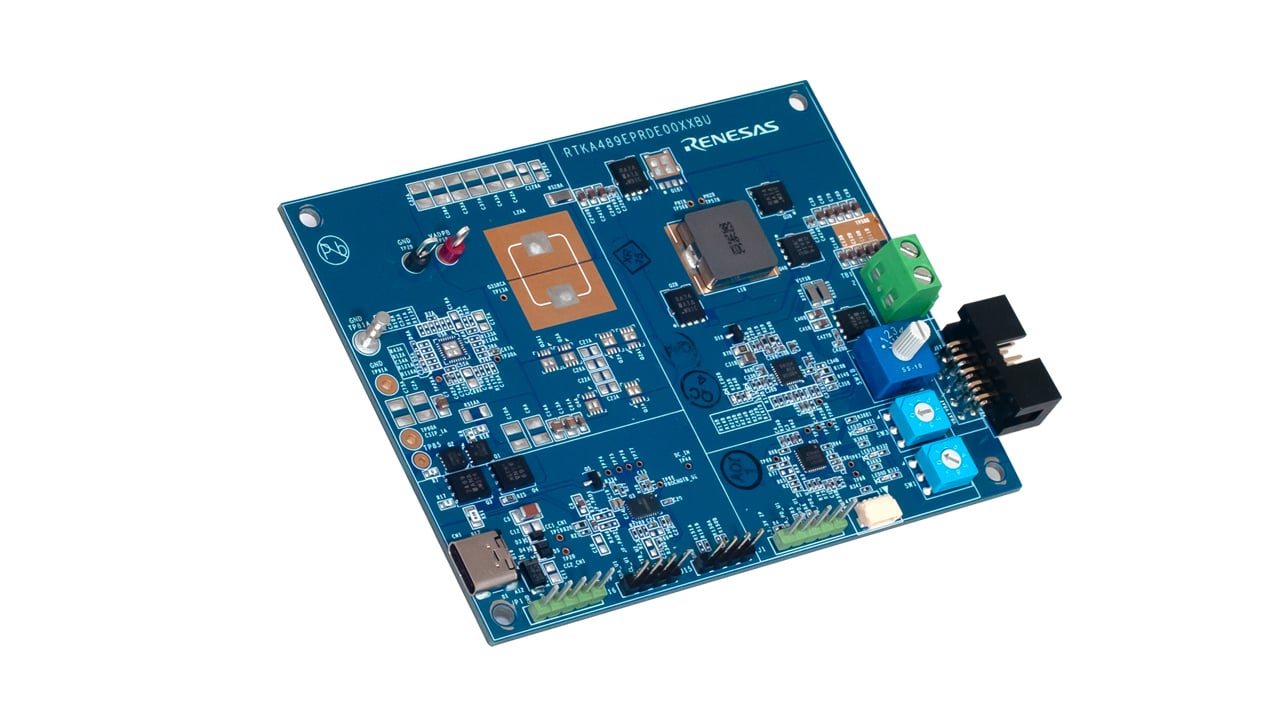

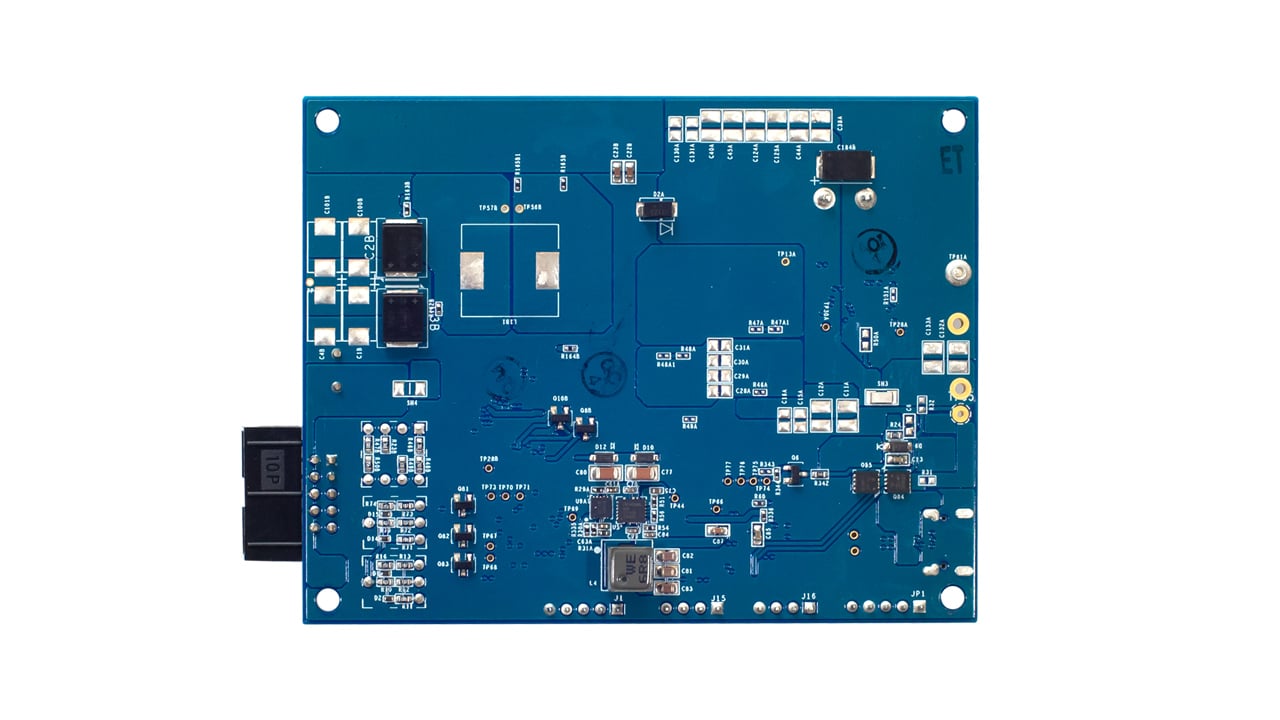

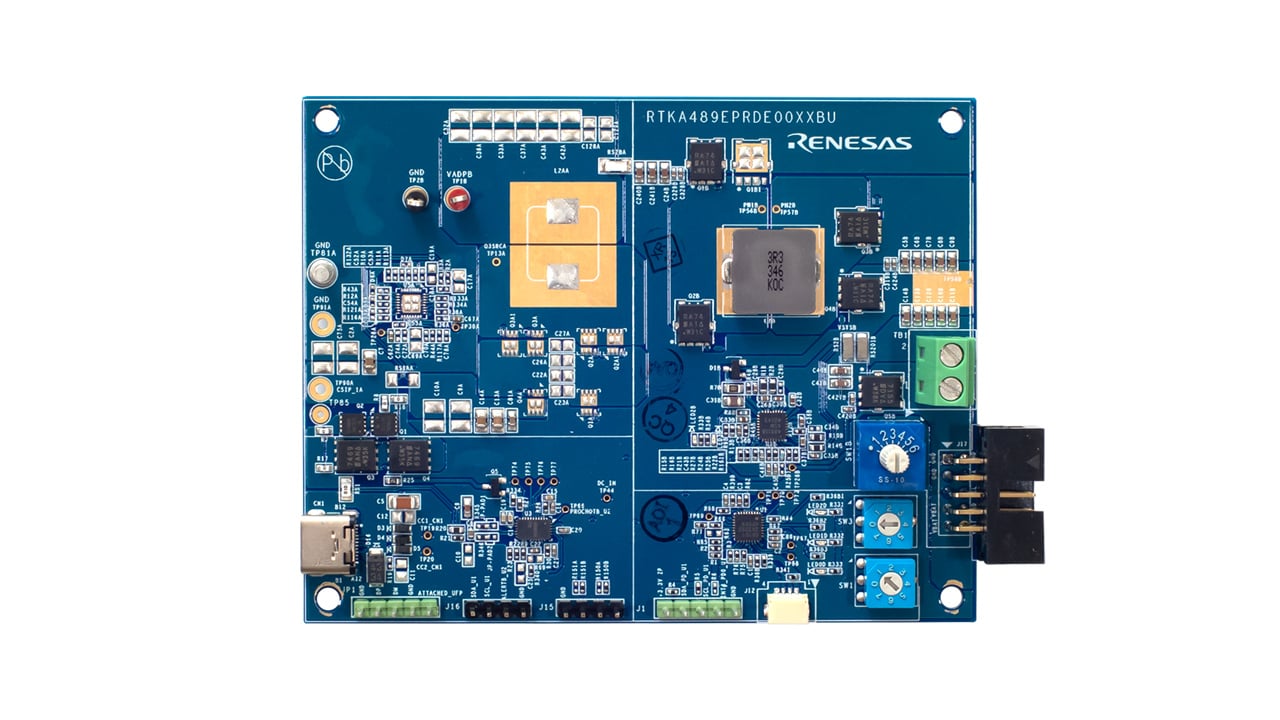

RTKA489EPRDE0010BU is the board included in the RTKA489EPRDK0010BU kit.
Features
- Up to 140W USB-C® battery system reference design can set battery configuration and max charging current by software on the board
- High-performance and simple design make the development easier
- USB Power Delivery and USB Type-C
- Single USB Type-C port
- Power role: Sink Only or Dual Role Power (both Sink and Source modes)
- Support 2 to 7 cells in series
- USB-C power supply indicators (2 LEDs): one for Sink mode and another for Source mode
- Switch
- Setting for battery configuration
- Maximum charging current control
- Operating mode selection
- Overvoltage protection (VBUS)
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 2.67 MB | |
| Manual - Software | PDF 1.35 MB | |
| Product Brief | PDF 542 KB | |
3 items
|
||
Design & Development
Processing table
RTKA489EPRDK0010BU Active Samples Available
Buy Now
|
RTK-G015-EPRSinkCharger-140W + Flash Programmer Adapter Set | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
Getting Started with RTK-G015-EPRSinkCharger-140W
This video introduces the RTK-G015-EPRSinkCharger-140W Reference Design, featuring the "VIDWRITER" Instruction Tool. It highlights the board's capabilities in battery charging (Sink operation) and powering external devices (Source operation), showcasing its versatility and functionality.
