Overview
Description

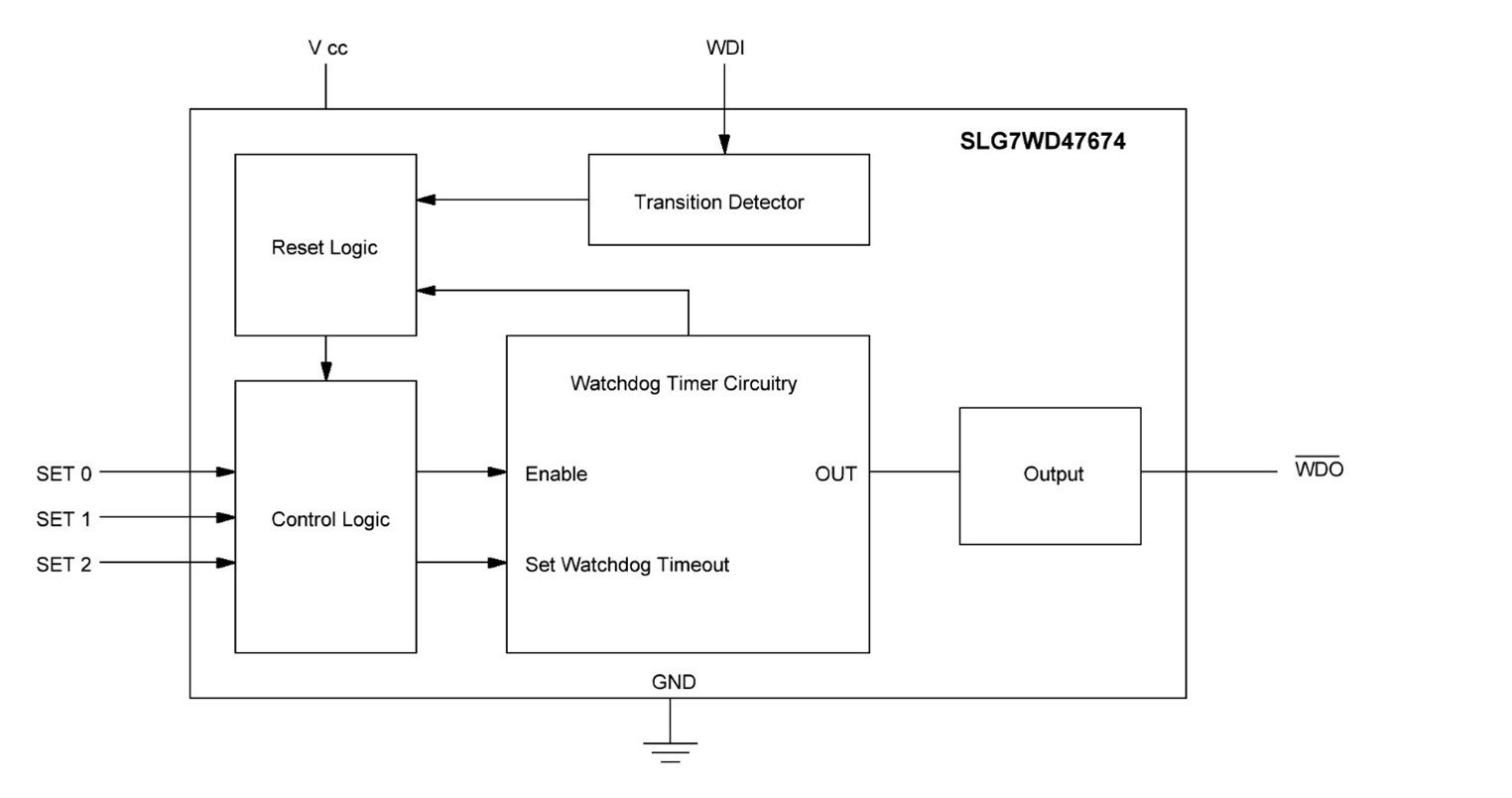

The SLG7WD47674 is a pin-selectable watchdog timer designed to monitor microprocessor activity and detect abnormal system behavior by requiring routine toggling of the watchdog input (WDI) within a specified timeout period. If the microprocessor fails to provide a valid WDI transition, the IC generates a watchdog output (WDO) signal to reset the system or trigger an interrupt, ensuring reliability. This watchdog timer offers flexible timing options, including startup delay, customizable timeout periods, and open-drain output timing (200ms), making it adaptable to various system timing requirements.
For custom configurations, visit the GreenPAK Programmable Mixed-Signal Products page.
Features
- Pin-selectable watchdog timeout periods
- Real-time in-system configuration
- Watchdog timer disable feature
- Open-drain watchdog output
- Operating voltage range: +2.5V to +5.5V
- Quiescent current: 1μA
- Maximum supply current: 10μA
- Configurable without external components
- Low power consumption
- Pb-free/RoHS-compliant
- Halogen-free
- 14-pin STQFN package: 2.0mm x 2.2mm x 0.55mm, 0.4mm pitch
Comparison
Applications
- Microcontroller (μC) and microprocessor (μP) monitoring
- Industrial controllers
- Telecommunications
- Networking
- Embedded control systems
- Data communications equipment
- Handheld and portable electronics
- Personal computers and servers
