Overview
Description
The 74CBTLV3861 10-bit bus switch provides high-speed bus switching with low on-state resistance of the switch allowing connections to be made with minimal propagation delay. The 74CBTLV3861 operates at -40C to +85C

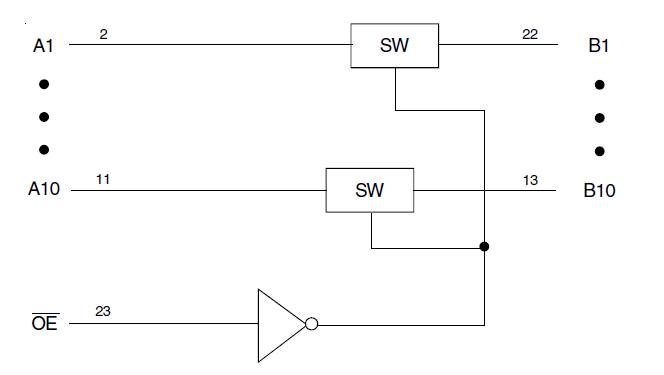

Features
- 5 ohm A/B bi-directional switch
- Isolation under power-off conditions
- Over-voltage tolerant
- Latch-up performance exceeds 100mA
- VCC = 2.3V - 3.6V, Normal Range
- ESD > 2000V per MIL-STD-883, Method 3015
- > 200V using machine model (C = 200pF, R = 0)
- Available in 24 pin QSOP and TSSOP packages
Comparison
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| TSSOP | 24 | C | Yes | Tube | 1 | 1.438 | Get Samples, | |
| TSSOP | 24 | C | Yes | Reel | 1 | 1.71 | ||
| QSOP | 24 | C | Yes | Tube | 1 | 0.5368 | Get Samples, | |
| QSOP | 24 | C | Yes | Reel | 1 |
