844021-01

Obsolete

FemtoClock Crystal-to-LVDS Clock Generator

844021-01 Datasheet

Overview

The 844021-01 is an Ethernet clock generator that uses an 18pF parallel resonant crystal over the range of 24.5MHz – 34MHz. For Ethernet applications, a 25MHz crystal is used. The 844021-01 has excellent <1ps phase jitter performance, over the 1.875MHz – 20MHz integration range. The 844021-01 is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.

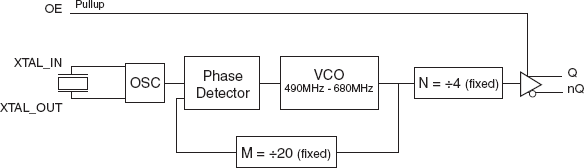

844021-01 - Block Diagram
844021-01 - Pinout
844021-01 - Block Diagram
844021-01 - Pinout
  • One Differential LVDS output
  • Crystal oscillator interface, 18pF parallel resonant crystal (24.5MHz – 34MHz)
  • Output frequency range: 122.5MHz – 170MHz
  • VCO range: 490MHz – 680MHz
  • RMS phase jitter @ 125MHz, using a 25MHz crystal (1.875MHz – 20MHz): 0.32ps (typical) @ 3.3V
  • 3.3V or 2.5V operating supply
  • 0°C to 70°C ambient operating temperature
  • Available in lead-free (RoHS 6) package

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.

Explore ECAD Models
Diagram of ECAD Models

Models
Type Title Date
Model - IBIS
844021-01 IBIS Model
ZIP 63 KB
1 item
