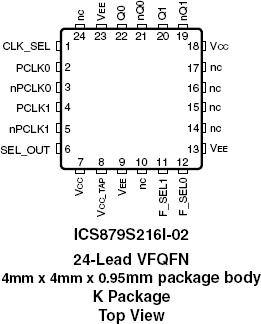

Package Information
| Lead Count (#) | 24 |
| Pkg. Code | NLG24 |
| Pitch (mm) | 0.5 |
| Pkg. Type | VFQFPN |
| Pkg. Dimensions (mm) | 4.0 x 4.0 x 0.9 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| ECCN (US) | NLR |
| HTS (US) | 8542390001 |
Product Attributes
| Lead Count (#) | 24 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 1 |
| Qty. per Reel (#) | 0 |
| Qty. per Carrier (#) | 490 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e3 Sn |
| Temp. Range | -40 to +85°C |
| Adjustable Phase | No |
| Advanced Features | Universal outputs |
| Channels (#) | 1 |
| Core Voltage (V) | 2.5, 3.3 |
| Divider Value | 2, 4, 8, 16 |
| Function | Buffer, Multiplexer, Divider |
| Input Freq (MHz) | 0 - 2500 |
| Input Type | CML, LVDS, LVPECL |
| Inputs (#) | 2 |
| Length (mm) | 4 |
| MOQ | 75 |
| Output Banks (#) | 1 |
| Output Freq Range (MHz) | 0 - 1250, 0 - 625, 0 - 312.5, 0 - 156.25 |
| Output Skew (ps) | 25 |
| Output Type | LVPECL, LVDS |
| Output Voltage (V) | 2.5, 3.3 |
| Outputs (#) | 2 |
| Package Area (mm²) | 16.0 |
| Pitch (mm) | 0.5 |
| Pkg. Dimensions (mm) | 4.0 x 4.0 x 0.9 |
| Pkg. Type | VFQFPN |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Supply Voltage (V) | 2.5 - 2.5, 3.3 - 3.3 |
| Tape & Reel | No |
| Thickness (mm) | 0.9 |
| Width (mm) | 4 |
Description

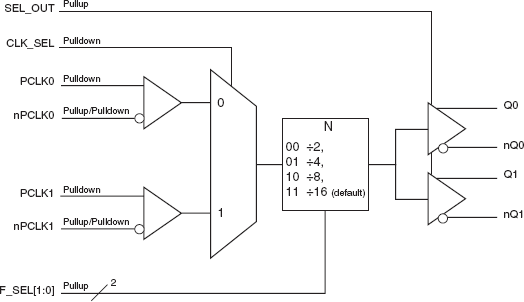

The 879S216I-02 is a Differential-to-LVPECL/ LVDS Clock Divider which can operate up to 2.5GHz. 879S216I-02 has 2 selectable differential clock inputs. The fully differential architecture and low propagation delay make it ideal for use in clock distribution circuits. 879S216I-02 can divide the input clock by ÷2, ÷4, ÷8 and ÷16. Table 4A lists all the available output dividers.
