CA91L750

Obsolete

Memory Controller

PowerPro User Manual

Overview

The PowerPro™ delivers memory control support for PowerPC® processors (MPC750, MPC740) and the IDT PowerPC-to-PCI bus switch, PowerSpan™. The PowerPro is designed to leverage the switched PCI architecture of PowerSpan II in PowerPC applications.

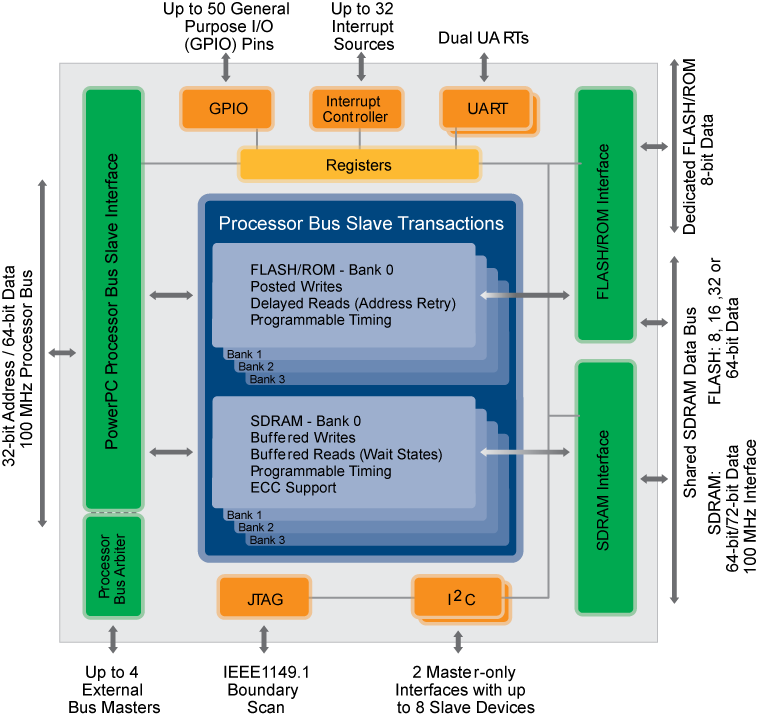

CA91L750 - Block Diagram
CA91L750 - Block Diagram
  • Processor (60x) Bus Interface (64-bit/100 MHz)
  • SDRAM Interface – 64-bit data bus, 72-bit data bus with ECC
  • FLASH/ROM Interface
  • Dual UARTs
  • I2C Interface
  • Interrupt Controller

Documentation

Featured Documentation
Type Title Date
Manual - Hardware
PowerPro User Manual
PDF 1.51 MB
Product Change Notice
PCN# : A1412-02 Change of Mold Compound Material
PDF 23 KB
End Of Life Notice
PDN# : CQ-14-07 Quarter PDN for Market Declined
PDF 541 KB
Device Errata
PowerPro Device Errata
PDF 47 KB
Product Brief
PowerPro Memory Controller for PowerPC
PDF 150 KB
