CMOS Dual 2-to-4 Line Decoder/Demultiplexer
Jump to Page Section:
Overview
Description

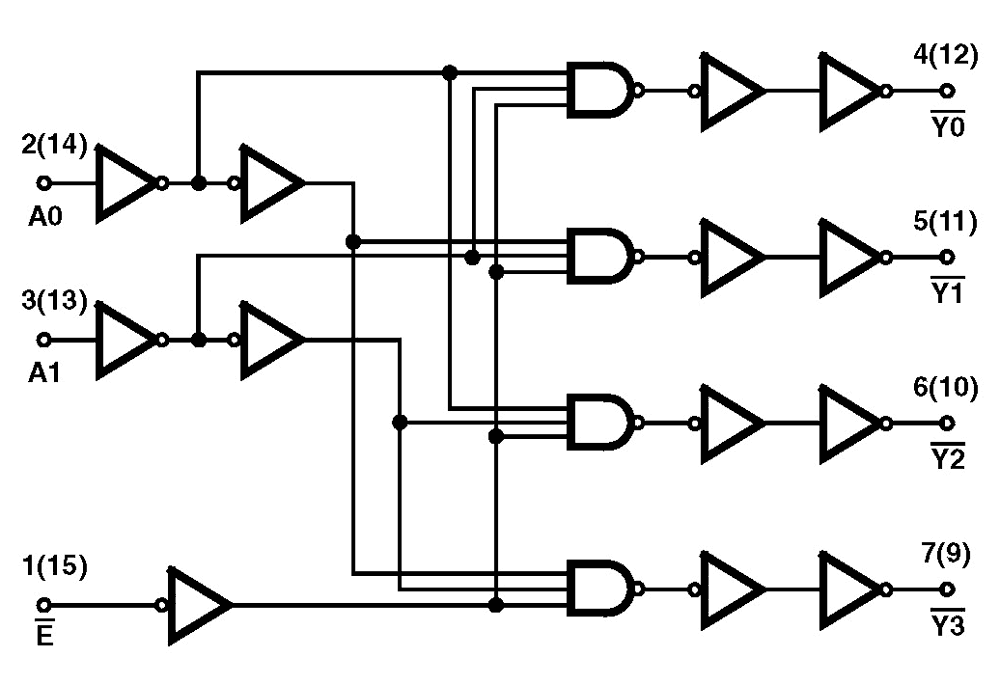

The Intersil HCTS139MS is a radiation hardened 2 to 4 line decoder/demultiplexer with an active low enable. Data on the select inputs cause one of the four normally high outputs to go to a low logic level. The demultiplexing function is performed by using the enable input as the data input. The HCTS139MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of the radiation hardened, high-speed, CMOS/SOS logic family with TTL input compatibility. The HCTS139MS is supplied in a 16-lead ceramic flatpack (K suffix) or an SBDIP package (D suffix).
Features
- 3 micron radiation hardened SOS CMOS
- Total dose 200K RAD (Si)
- SEP effective LET no upsets: >100 MEV-cm2/mg
- Single Event Upset (SEU) immunity <2 x 10-9 errors/bit-day (Typ)
- Dose rate survivability: >1 x 1012 RAD (Si)/s
- Dose rate upset >1010 RAD (Si)/s 20ns pulse
- Latch-up free under any conditions
- Fanout (over temperature range)
- Bus driver outputs - 15 LSTTL loads
- Military temperature range: -55 °C to +125 °C
- Significant power reduction compared to LSTTL ICs
- DC operating voltage range: 4.5V to 5.5V
- LSTTL input compatibility
- VIL = 0.8V Max
- VIH = VCC/2 Min
- Input current levels Ii ≤ 5µA at VOL, VOH
Documentation
|
|
Date | |
|---|---|---|
| PDF 829 KB | Datasheet | |
| PDF 467 KB | Brochure | |
| PDF 4.85 MB | Brochure | |
| PDF 360 KB | Price Increase Notice | |
| Other | ||
| PDF 533 KB | White Paper | |
| PDF 499 KB | Product Advisory | |
| PDF 230 KB | Product Change Notice | |
| PDF 338 KB | Application Note | |
9 items
|
||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| SBDIP | Tube | 25 | 5962R9575301VEC | ||
| CFP | Tray | 25 | 5962R9575301VXC |
