The CDP1802A/3 High-Reliability LSI CMOS 8-bit register oriented Central-Processing Unit (CPU) is designed for use as a general purpose computing or control element in a wide range of stored-program systems or products. The CDP1802A/3 includes all of the circuits required for fetching, interpreting, and executing instructions which have been stored in standard types of memories. Extensive input/output (I/O) control features are also provided to facilitate system design. The 1800 Series Architecture is designed with emphasis on the total microcomputer system as an integral entity so that systems having maximum flexibility and minimum cost can be realized. The 1800 Series CPU also provides a synchronous interface to memories and external controllers for I/O devices, and minimizes the cost of interface controllers. Further, the I/O interface is capable of supporting devices operating in polled, interrupt-driven, or direct memory-access modes. The CDP1802AC/3 is functionally identical to its predecessor, the CDP1802. The A version includes some performance enhancements and can be used as a direct replacement in systems using the CDP1802. This type is supplied in a 40 Ld dual-in-line sidebrazed ceramic package (D suffix).

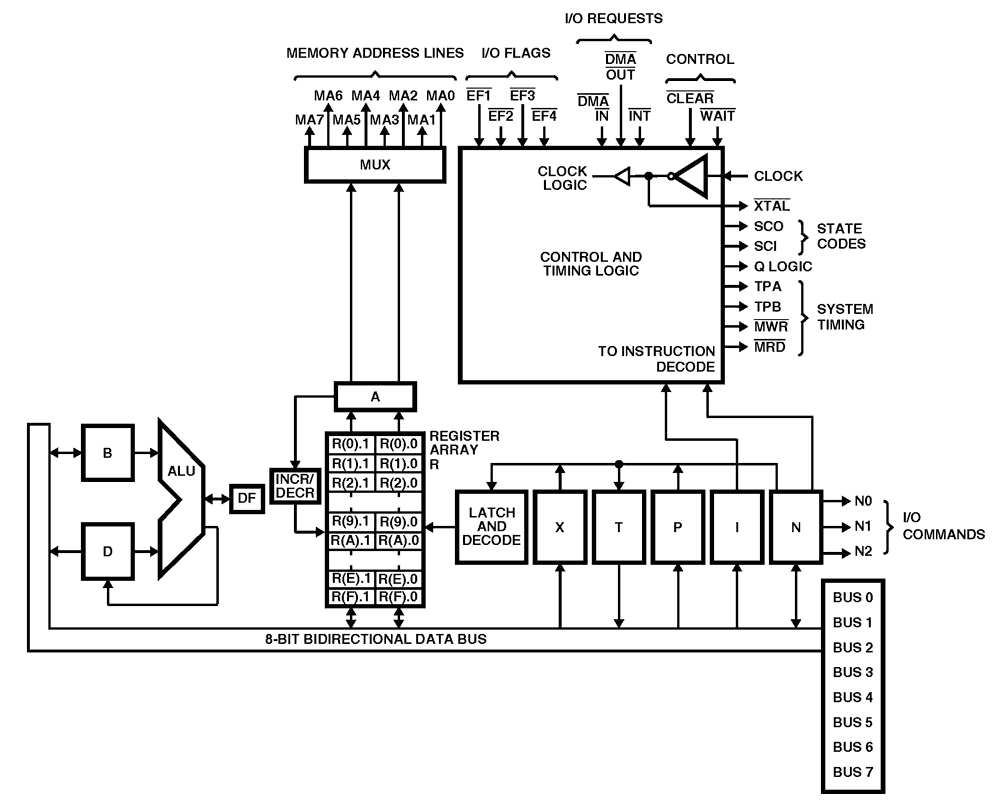

Features

  • For Use In Aerospace, Military, and Critical Industrial Equipment
  • Minimum Instruction Fetch-Execute Time of 4.5µs (Maximum Clock Frequency of 3.6MHz) at VDD = 5V, TA = +25°C
  • Operation Over the Full Military Temperature Range -55°C to +125°C
  • Any Combination of Standard RAM and ROM Up to 65,536 Bytes
  • 8-Bit Parallel Organization With Bi-directional Data Bus and Multiplexed Address Bus
  • 16x16 Matrix of Registers for Use as Multiple Program Counters, Data Pointers, or Data Registers
  • On-Chip DMA, Interrupt, and Flag Inputs
  • High Noise Immunity 30% of VDD
  • Pb-Free (RoHS compliant)

Product Options

Orderable Part ID Part Status Pkg. Type Carrier Type MOQ Buy Sample
Active SBDIP Tube 63
Availability

Documentation & Downloads

Title Other Languages Type Format File Size Date
Datasheets & Errata
CDP1802AC/3 Datasheet Datasheet PDF 677 KB
Application Notes & White Papers
AN6565 Application Note PDF 240 KB
AN9867: End of Life Derating: A Necessity or Overkill Application Note PDF 338 KB
PCNs & PDNs
PCN16087 - Alternate die attach material for assembly of Intersil hermetic packaged products Product Change Notice PDF 260 KB
PCN11041 - Manufacturing Site Change for Assembly of Intersil Ceramic Solder Seal Packaged Products - Amkor (ATP) Muntinlupa City, Philippines and Intersil (ISP) Palm Bay, FL Product Change Notice PDF 134 KB
Other
Intersil Space Products Brochure Brochure PDF 3.14 MB
Intersil Commercial Lab Services Brochure PDF 364 KB
