Portable Relative Humidity and Temperature Sensing System
Jump to Page Section:
Overview
Description

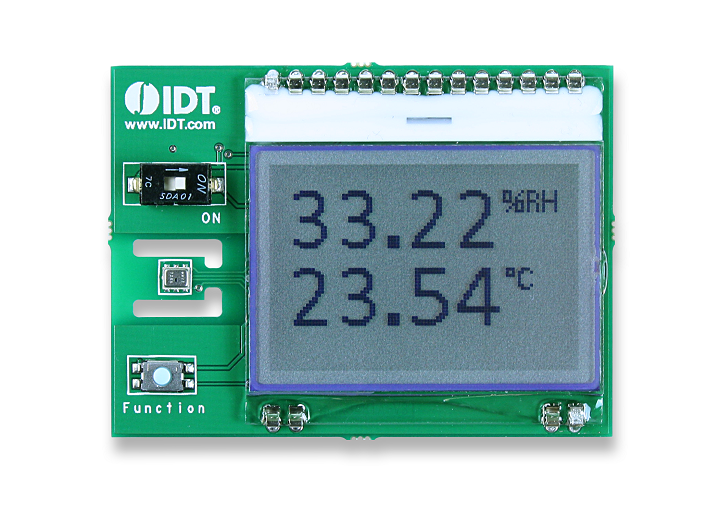

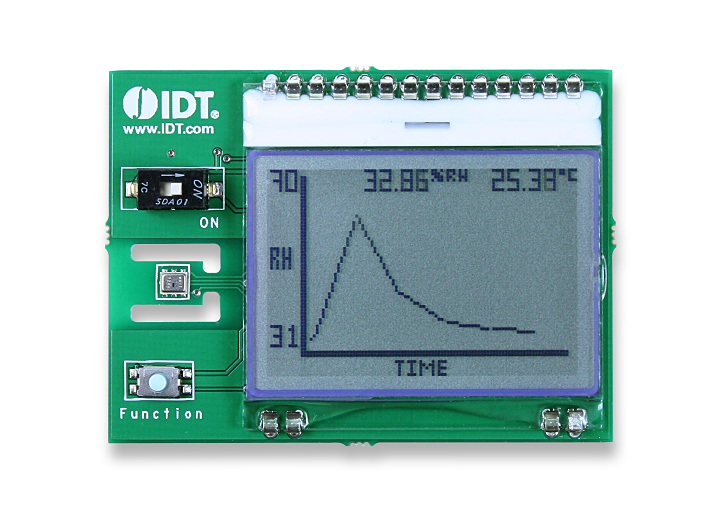

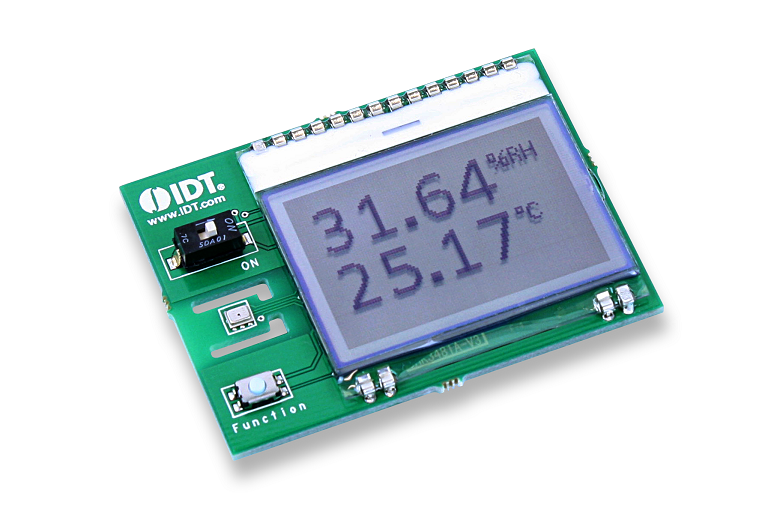

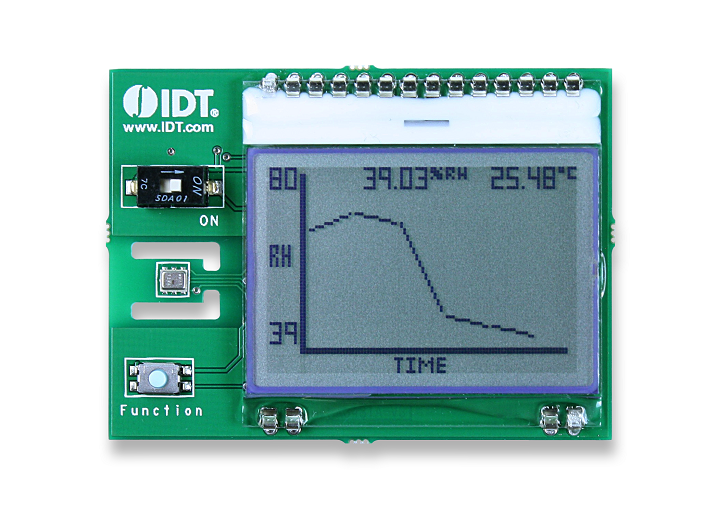

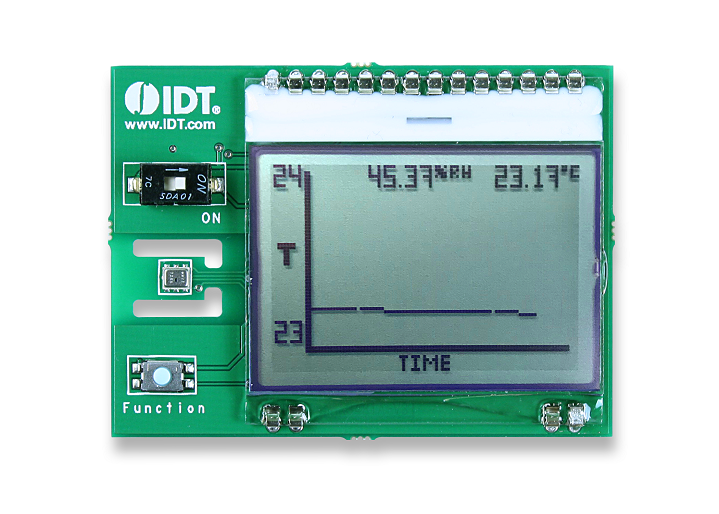

IDT’s SDAH02 LCD evaluation board allows for easy monitoring of the ambient relative humidity and temperature. The system combines the HS300x relative humidity and temperature sensor with an LCD display for fast and accurate environmental measurements. The system takes a measurement every second, and is powered by a CR1632 battery (included). The sensing system’s LCD can also provide plots of relative humidity or temperature vs. time.
Features
- LCD evaluation board
- CR1632, 3V battery
- Quick start guide
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 605 KB | Manual - Development Tools | ||
1 item
|
|||
