High Reliability SP2T RF Switch
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description
The F2933 is a high-reliability, low-insertion loss, 50 Ω SP2T absorptive RF switch designed for a wide range of markets and applications. This device covers a broad frequency range from 50 MHz to 8000 MHz, has an operating temperature range of -40 to 105°C and wide supply voltage range of 2.7 - 5.5 VDC. Designed for high-power handling, the F2933 has a P1 dB as high as 36.5 dBm, supporting a peak operating power of 34 dBm in the through path and a hot switching power of 27 dBm into the terminated RF port. In addition to providing low-insertion loss, the F2933 also delivers high isolation and low distortion performance while providing a 50 Ω termination to the unused RF ports.

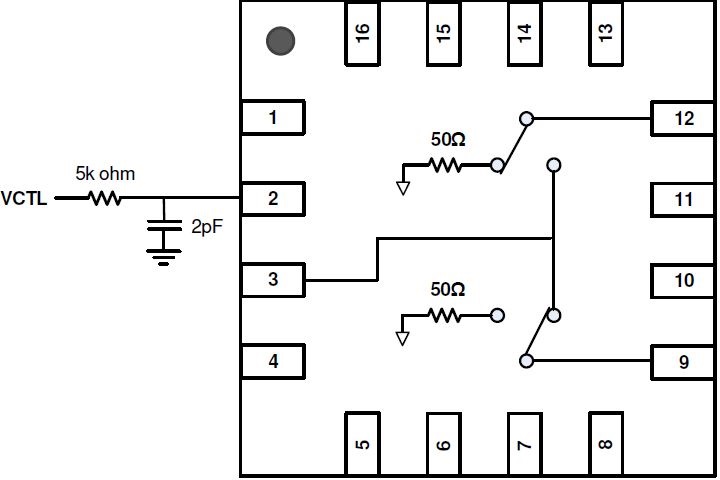

The F2933 uses a single positive supply voltage supporting three logic control pins using either 3.3 V or 1.8 V control logic.
Features
Dual symmetric broad band, absorptive RF ports
- High-performance RF @ 2 GHz
- RFC-RFX Isolation of 67 dB
- Insertion Loss of 0.79 dB
- High continuous RF CW Power Handling
- Selected RF path: 34 dBm
- Terminated RF path: 27 dBm
- High linearity:
- IIP2 of 111 dBm
- IIP3 of 64 dBm
- 3.3 V and 1.8 V compatible control logic
- Operating temperature of -40 °C to +105 °C

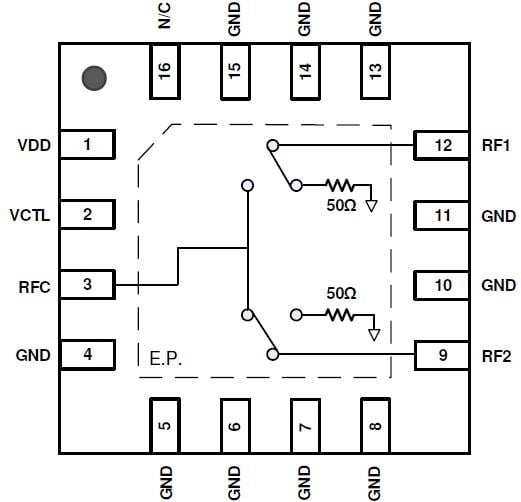

- 4 mm x 4 mm 16-pin QFN package
Applications
Design & Development
Boards & Kits
Boards & Kits
Evaluation Board for High Reliability SPDT Absorptive RF Switch
The F2933EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2933 RF switch.
“Thru” calibration connectors are conveniently...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| VFQFPN | 16 | P | Yes | Switch | Reel | ||
| VFQFPN | 16 | P | Yes | Switch | Tray | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
F2932 / F2933 High-isolation SPDT RF Switches
Operating at 50 to 8000 MHz, the F2932 and F2933 are silicon-based, low-distortion 50-ohm single-pole, double-throw (SPDT) RF switches. The devices offer one of the industry’s highest isolation values combined with low distortion and low insertion loss.
With industry-standard 4x4mm 16-pin QFN packages and drop-in compatible footprints and control, their rich combination of specs make the devices ideal for communications and public safety systems, radar and general purpose switching.
F2932 and F2933 offer similar RF performance, pin out and control, with the F2932 having an additional Enable/Disable feature allowing all RF paths to be put into an off state and disabling the VCTL feature.
For more information about IDT's leading RF portfolio, visit www.idt.com/go/RF.
