Overview

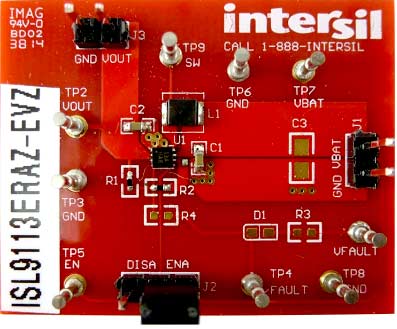

The ISL9113ERAZ-EVZ (WLCSP) evaluation board is used to evaluate the ISL9113 low input voltage and high-efficiency synchronous boost converter. The ISL9113 provides a power supply solution for devices powered by 3-cell alkaline, NiCd, NiMH, or 1-cell Li-ion/Li-polymer batteries. The device uses Renesas' proprietary boost algorithm to maintain voltage regulation when the input voltage is very low.

  • Small, compact design
  • Jumper selectable EN (enabled/disabled)
  • Connectors, test points and jumpers for easy probing
  • Products including portable HDMI and USB On-the-Go (USB-OTG)
  • Smartphones
  • Tablet and mobile internet devices
