RZ/T2M

Renesas MPU Guide

Download the mobile app

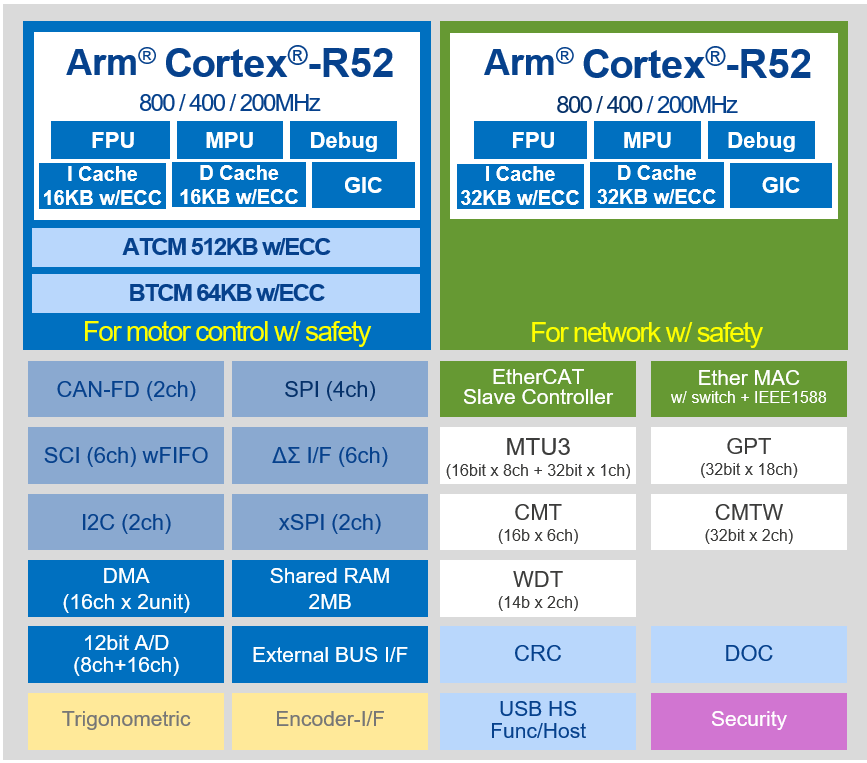

Overview

RZ/T2M is an industry-leading high-performance multi-function MPU that realizes high-speed processing, high precision control, and functional safety required for industrial equipment such as AC servos and industrial motors. Powered by dual Arm® Cortex®-R52 cores with a maximum frequency of 800MHz for real-time control and embedded with a large tightly coupled memory (576KB) directly connected to the CPU to realize high-performance real-time processing, RZ/T2M enables low latency access by arranging the peripherals for motor control to the LLPP (Low Latency Peripheral Port) that is directly connected to the CPU. RZ/T2M has a multi-protocol encoder interface that supports various absolute encoder protocols such as A-format™, EnDat, and BiSS®. Additionally, RZ/T2M has a 3-port Gigabit Ethernet switch supporting the TSN standard and EtherCAT slave controller. RZ/T2M realizes high speed and highly precise motor control and industrial Ethernet communication such as EtherCAT, PROFINET RT/IRT and EtherNet/IP on a single chip.

CPU: Arm® Cortex®-R52 x 2, maximum operating frequency 800MHz
3-port Gigabit Ethernet switch with TSN
Trigonometric function accelerator
Memory: Tightly coupled memory 576KB (with ECC), internal RAM 2MB (with ECC)
Industrial Ethernet: EtherCAT®, PROFINET® RT/IRT, EtherNet/IP™, etc.
Encoder interface: 2ch (supports A-format™, EnDat, BiSS®, HIPERFACE® DSL, FA-CODER）
Functional safety support up to SIL3
Motor current loop < 1µs
Octa/Quad SPI support
PWM: 3-phase complementary PWM output for dual motor control
ADC: 12-bit x 2 units
ΔΣ I/F: 6ch
Package: 320-pin BGA, 225-pin BGA, 176-pin QFP, 128-pin QFP
Voltage: Core 1.1V, I/O 3.3/1.8V

	AC Servo
	Industrial Ethernet and Fieldbus
	[RZ/A, RZ/T, RZ/N MPU] SEGGER J-Link/J-Trace/Flasher
	[RZ/T, RZ/N MPU] Port GOAL Real-Time Communication
	[RZ/A, RZ/G, RZ/N, RZ/T MPU] Macronix Boot Code Integrity OTA Function
	Motor Control System with Industrial Network and Functional Safety
	[RZ/T MPU] 株式会社アルファプロジェクト RZ/T2M搭載CPUボード AP-RZT2-1A
	[RZ/T MPU] Shimafuji SBEV-RZ/T2M Evaluation Board

Applications

AC servo
Industrial motor
Inverter
Robot
Motion controller

Documentation

Title	Type	Date
RZ/T2M Group Datasheet PDF 1.98 MB 日本語	Datasheet	Sep 30, 2022
RZ/T2M Group User's Manual: Hardware ZIP 24.54 MB 日本語	Manual - Hardware	Sep 30, 2022
Renesas RZ/T2M Group PDF 357 KB 日本語	Flyer	Jun 3, 2022
RZ/T2M Easy Download Guide PDF 275 KB 日本語	Guide	Dec 5, 2023
RZ/T2M Group lwIP Protocol Stack Sample Program Package Release Note PDF 339 KB 日本語 Related Files: Sample Code	Release Note	Nov 30, 2023
Industrial Networks Brochure PDF 8.18 MB 日本語	Brochure	Nov 6, 2023
RZ/T2M Group OPC UA Server Sample Software PDF 253 KB Related Files: Sample Code	Application Note	Oct 31, 2023
RZ/T2M Group EtherCAT Sample program Package Release Note PDF 241 KB 日本語 Related Files: Sample Code	Release Note	Oct 31, 2023
RZ/T2M Group Modbus Sample Program Package Release Note PDF 235 KB 日本語 Related Files: Sample Code	Release Note	Oct 20, 2023
R9A07G075MXXGFX Reliability Report PDF 392 KB	Product Reliability Report	Oct 13, 2023
RZ/T2M Group Dual Encoder sample program PDF 542 KB 日本語 Related Files: Sample Code	Release Note	Oct 6, 2023
RZ/T2M Group ENCOUT sample program PDF 714 KB 日本語 Related Files: Sample Code	Release Note	Oct 6, 2023
RZ/T2M Group Encoder I/F A-format sample program PDF 536 KB 日本語 Related Files: Sample Code	Release Note	Oct 6, 2023
RZ/T2M Group Encoder I/F EnDat Safety sample program PDF 562 KB 日本語 Related Files: Sample Code	Release Note	Oct 6, 2023
RZ/T2M Group Encoder I/F HIPERFACE DSL Safety sample program PDF 629 KB 日本語 Related Files: Sample Code	Release Note	Oct 6, 2023
RZ/T2,RZ/N2 Getting Started with Flexible Software Package PDF 7.58 MB	Quick Start Guide	Sep 29, 2023
RZ/T2M Group Encoder I/F BiSS-C sample program PDF 581 KB 日本語 Related Files: Sample Code	Release Note	Sep 29, 2023
RZ/T2M Group Encoder I/F EnDat sample program PDF 537 KB 日本語 Related Files: Sample Code	Release Note	Sep 29, 2023
RZ/T2M Group Encoder I/F FA-CODER sample program PDF 543 KB 日本語 Related Files: Sample Code	Release Note	Sep 29, 2023
RZ/T2M Group Encoder I/F HIPERFACE DSL sample program PDF 545 KB 日本語 Related Files: Sample Code	Release Note	Sep 29, 2023
RZ/T2M Group Encoder I/F SSI sample program PDF 560 KB 日本語 Related Files: Sample Code	Release Note	Sep 29, 2023
RZ/T2M Group Encoder I/F configuration Library PDF 235 KB 日本語 Related Files: Sample Code	Release Note	Sep 29, 2023
Site additional of package assembly and final test(PC-SOC-A006A/E) PDF 196 KB 日本語	Product Change Notice	Sep 14, 2023
RZ/T2M Group Example program Release Note PDF 192 KB Related Files: Sample Code	Application Note	Jun 30, 2023
Ethernet Switch (ETHSW) function issue PDF 125 KB 日本語	Technical Update	Jun 30, 2023
RZ/T2M Group Example of separating loader program and application program projects PDF 1.25 MB 日本語 Related Files: Sample Code	Application Note	Jun 15, 2023
RZ/T2, RZ/N2 CMSIS-DSP library Release note PDF 304 KB 日本語 Related Files: Sample Code	Release Note	May 31, 2023
RZ/T2 and RZ/N2 Group Device Setup Guide for Flash boot Application Note PDF 1.24 MB 日本語 Related Files: RZ/T2 and RZ/N2 Group Device Setup Guide for Flash boot Sample Program	Application Note	Apr 28, 2023
RZ/T2, RZ/N2 Quick Start Guide: Firmware Update Application Note PDF 1.63 MB 日本語 Related Files: RZ/T2, RZ/N2 Quick Start Guide: Firmware Update Sample Program	Application Note	Apr 28, 2023
RZ Family Brochure PDF 12.68 MB 日本語	Brochure	Apr 14, 2023
RZ/T2M Group EtherNet/IP OpENer Sample Program Package Release Note PDF 254 KB Related Files: Sample Code	Application Note	Feb 10, 2023
Building Automation Brochure PDF 19.79 MB 日本語	Brochure	Dec 21, 2022
RZ/T2M, RZ/N2L Group Hardware Design Guide PDF 377 KB 日本語	Manual - Hardware	Dec 20, 2022
R9A07G075MXXGBX Reliability Report PDF 410 KB	Product Reliability Report	Dec 16, 2022
Correction on AC and temperature sensor characteristics PDF 237 KB 日本語	Technical Update	Sep 14, 2022
Ethernet MAC (GMAC) function issue PDF 142 KB 日本語	Technical Update	Sep 14, 2022
Withdrawal of SCI/USB authentication function PDF 337 KB 日本語	Technical Update	Sep 14, 2022
Semiconductor Package Mount Manual PDF 10.28 MB 日本語 , 简体中文	Other	Dec 27, 2018
Semiconductor Reliability Handbook PDF 14.70 MB 日本語	General Reliability Literature	Jan 30, 2017
Add 11 hidden items 39 items

Design & Development

e² studio (Renesas)
If you would like to use e² studio, download "e² studio and RZ/T2 FSP Installer" from Software Downloads below.

IAR Embedded Workbench for Arm (IAR Systems)
If you would like to use IAR Embedded Workbench for Arm, please download ver.9.30.1 or later from the IAR Systems website. When using IAR, download Smart Configurator from Software Downloads below. Download IAR Embedded Workbench for Arm

Flexible Software Package (FSP)
Software package for developing embedded systems using RZ/T2M. Installer in Software Downloads includes latest version of FSP. FSP on GitHub

Functional Safety Solution
RZ/T2M offers solutions conforming to the IEC 61508 functional safety standard: Self-Test Software Kit, SIL3 System Software Kit, FSoE Application Software Kit, etc. Register for complimentary software

Software & Tools
Sample Code
Boards & Kits
Models

Software & Tools

Software title	Software type	Company

e² studio - information for RZ Family Eclipse-based Renesas integrated development environment (IDE).	IDE and Coding Tool	Renesas
RZ MPU Security Package (RTOS, bare metal) Security Package for MPUs of the RZ/T2 and RZ/N2 Group (RZ/T2M, RZ/T2L, RZ/N2L). This package requires a board on which a security-compliant product is mounted. Please contact our sales or distributors for board rental.	Software Package	Renesas
Add 1 hidden item 2 items

Software Downloads

Title	Type	Date
e² studio and RZ/T2 FSP Installer EXE 2,007.57 MB 日本語	Software & Tools - Software	Sep 19, 2023
RZ/T2 FSP Packs v1.3.0 [Software=RZ/T2 Flexible Software Package Setup\|v1.10],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.30.1] ZIP 36.61 MB Application: Industrial Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM	Software & Tools - Software	Sep 8, 2023
RZ/T2 FSP Smart Configurator and FSP Installer (for IAR Embedded Workbench) EXE 588.01 MB 日本語	Software & Tools - Software	Sep 8, 2023
3 items

Sample Code

Filters
Title Title	Type	Date Date Date
RZ/T2M Group lwIP Protocol Stack Sample Program Package [Software=FSP\|v1.3.0],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.30.2] ZIP 11.16 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Nov 30, 2023
RZ/T2M Group EtherCAT Sample program Package [Software=RZ Flexible Software Package fot RZ/T2\|v1.3.0],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.32.2] ZIP 15.53 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Oct 31, 2023
RZ/T2M Group OPC UA Server Sample Software [Software=RZ/T2M OPCUA Sample Program\|v1.0],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.32.2] ZIP 11.08 MB Compiler: GCC ARM Embedded, ICCARM IDE: e2 studio, IAR EWARM Related Files: Application Note	Sample Code	Oct 31, 2023
RZ/T2M Group Modbus Sample Program Package [Software=RZ/T2M Group Modbus Sample Program\|v1.30],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for ARM v9.32.2] ZIP 3.54 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Oct 20, 2023
RZ/T2M Group Dual Encoder sample program [Software=RZ/T2M Dual Encoder sample program\|v1.20],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for ARM v9.32.2] ZIP 6.81 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Oct 6, 2023
RZ/T2M Group ENCOUT sample program [Software=RZ/T2M Group ENCOUT sample program\|v1.30],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for ARM v9.32.2] ZIP 2.83 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Oct 6, 2023
RZ/T2M Group Encoder I/F A-format sample program [Software=RZ/T2M Group Encoder I/F A-format sample program\|v1.60],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for ARM v9.32.2] ZIP 4.60 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Oct 6, 2023
RZ/T2M Group Encoder I/F EnDat Safety sample program [Software=RZ/T2M Encoder I/F EnDat Safety sample program\|v1.20],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for ARM v9.32.2] ZIP 4.89 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Oct 6, 2023
RZ/T2M Group Encoder I/F HIPERFACE DSL Safety sample program [Software=RZ/T2M Encoder I/F HIPERFACE DSL Safety sample program\|v1.20],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for ARM v9.32.2] ZIP 5.33 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Oct 6, 2023
RZ/T2M Group Encoder I/F BiSS-C sample program [Software=RZ/T2M BiSS-C Sample Program\|v1.20],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for Arm v9.32.2] ZIP 5.79 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Sep 29, 2023
RZ/T2M Group Encoder I/F Configuration Library [Software=RZ/T2M Encoder I/F Configuration Library\|v1.60],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for ARM v9.32.2] ZIP 1.44 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Sep 29, 2023
RZ/T2M Group Encoder I/F EnDat sample program [Software=RZ/T2M EnDat Sample Program\|v1.20],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for Arm v9.32.2] ZIP 4.75 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Sep 29, 2023
RZ/T2M Group Encoder I/F FA-CODER sample program [Software=RZ/T2M FA-CODER Sample Program\|v1.60],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for Arm v9.32.2] ZIP 3.67 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Sep 29, 2023
RZ/T2M Group Encoder I/F HIPERFACE DSL sample program [Software=RZ/T2M HIPERFACE DSL Sample Program\|v1.40],[Toolchains=GNU ARM Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for Arm v9.32.2] ZIP 5.06 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Sep 29, 2023
RZ/T2M Group Encoder I/F SSI sample program [Software=RZ/T2M SSI Sample Program\|v1.20],[Toolchains=GNU Arm Embedded\|v12.2.1.am-12-24;IAR Embedded Workbench for Arm v9.32.2] ZIP 4.34 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	Sep 29, 2023
RZ/T2M Group Example program [Software=RZ/T2M Example Program\|v1.4],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.30.1] ZIP 25.85 MB Application: Industrial Compiler: GCC, ICCARM Function: Software Package IDE: e2 studio, IAR EWARM Related Files: Application Note	Sample Code	Jun 30, 2023
RZ/T2M Group Example of separating loader program and application program projects [Software=RZ/T2M Separating Loader and Application Sample Program\|v1.1],[Toolchains=GNU Arm Embedded\|9.3.1.20200408;IAR Compiler for Arm\|v.9.30.1] ZIP 13.70 MB 日本語 Application: Industrial Compiler: GNU ARM Embedded, ICCARM Function: Application Example, BSP IDE: e2 studio, IAR EWARM Related Files: Application Note	Sample Code	Jun 15, 2023
RZ/T2, RZ/N2 CMSIS-DSP library [Software=RZ/T2M CMSIS-DSP library\|v1.00],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.32.1] ZIP 19.35 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Release Note	Sample Code	May 31, 2023
RZ/T2 and RZ/N2 Group Device Setup Guide for Flash boot Sample Program [Software=RZ/T2M Device Setup\|v1.20],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.30.1] ZIP 9.09 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: RZ/T2 and RZ/N2 Group Device Setup Guide for Flash boot Application Note	Sample Code	Apr 28, 2023
RZ/T2, RZ/N2 Quick Start Guide: Firmware Update Sample Program [Software=RZ/T2M Firmware Update\|v1.20],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.30.1] ZIP 14.66 MB 日本語 Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: RZ/T2, RZ/N2 Quick Start Guide: Firmware Update Application Note	Sample Code	Apr 28, 2023
RZ/T2M Group EtherNet/IP OpENer Sample Program Package [Software=RZ/T2M EtherNet/IP OpENer Sample Program\|v1.01],[Toolchains=GNU ARM Embedded\|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.30.1] ZIP 5.26 MB Compiler: GCC, ICCARM IDE: e2 studio, IAR EWARM Related Files: Application Note	Sample Code	Feb 10, 2023
21 items

Boards & Kits

RZ/T2M-RSK

Starter

Order Now

Renesas Starter Kit+ for RZ/T2M

Renesas Starter Kit+ for RZ/T2M is an evaluation and development kit for the RZ/T2M MPU. Since it has an on-board emulator, you can start evaluation by simply...

Featured Documents:

RZ/T2M-Motor-Solution-Kit

Reference

Order Now

RZ/T2M Motor Solution Kit (DC 24V version)

This Motor Solution Kit is a reference kit that enables easy initial evaluation and advanced development of customer's motor control system development using RZ/T2M with low voltage 24V BLDC motor. A motor solution board (equipped with RZ/T2M BGA320, functional safety supported) and 24V BLDC motor(equipped with Nikon absolute encoder or incremental encoder) are available for free rental. Evaluation software, motion utility tools, schematics, and board manuals can be downloaded from this web.

Featured Documents:

AC-SERVO-KIT

Reference

Order Now

RZ/T2M, RZ/T2L, RZ/N2L Motor Solution Kit

This motor solution kit is a reference kit that enables easy initial evaluation and advanced development of motor control systems using an RZ/T2M (or RZ/T2L or RZ/N2L) MPU with a high voltage 220V AC servo motor. Three types of motor solution boards are available: the RZ/T2M version, the RZ/T2L version, and the RZ/N2L version.

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Models

Title	Type	Date
RZ/T2M 128pin IBIS IBS 1.88 MB	Model - IBIS	Jun 21, 2023
RZ/T2M 176pin IBIS IBS 1.88 MB	Model - IBIS	Jun 21, 2023
RZ/T2M 225pin IBIS IBS 3.47 MB	Model - IBIS	Jun 21, 2023
RZ/T2M 320pin IBIS IBS 3.48 MB	Model - IBIS	Jun 21, 2023
RZ/T2M 128pin LQFP (R9A07G075GFA) BSDL BSDL 29 KB	Model - BSDL	May 31, 2022
RZ/T2M 176pin LQFP (R9A07G075GFP) BSDL BSDL 33 KB	Model - BSDL	May 31, 2022
RZ/T2M 225pin FBGA (R9A07G075GBA) BSDL BSDL 36 KB	Model - BSDL	May 31, 2022
RZ/T2M 320pin FBGA (R9A07G075GBG) BSDL BSDL 43 KB	Model - BSDL	May 31, 2022
8 items

Product Options

Processing table

	Series Name	Main CPU	Operating Freq (Max) (MHz)	Bit Size	Sub CPU	RAM (KB)	Memory Interface	GPU	Accelerator	PCIe Revision	CAN (ch)	Ethernet	USB	I/O Ports	Pkg. Type	Lead Count (#)	Temp. Range	PLP	Data Flash (KB)	RTC	DMA	Timer	ADC	Human Machine Interface	Supply Voltage (V)	CPU	Buy / Sample
(14) Active (0) Obsolete / NRND / LTB	RZ/T	Cortex-R52 x 1 Cortex-R52 x 2	Maximum Operating frequency range. Minimum Operating frequency range.	Maximum Number of bits supported by the device. Minimum Number of bits supported by the device.	-	Maximum Random access memory size. Minimum Random access memory size.	HyperRAM (8-bit) OctaRAM (8-bit) SDRAM	-	-	-	Maximum Number of controller area netowork (CAN) interface channels. Minimum Number of controller area netowork (CAN) interface channels.	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	Maximum Number of input/output ports. Minimum Number of input/output ports.	LFBGA LFQFP	Maximum Minimum	-40 to 125°C	Maximum The duration date of a product in the Product Longevity Program (PLP). Minimum The duration date of a product in the Product Longevity Program (PLP).	Maximum Data Flash memory size. Minimum Data Flash memory size.	No	Yes	16-bit x 6-ch 16-bit x 8-ch 32-bit x 18-ch 32-bit x 2-ch	12-bit x 12-ch 12-bit x 24-ch 12-bit x 8-ch	-	Maximum Power supply voltage or voltage range of the device. Minimum Power supply voltage or voltage range of the device.	Cortex-R52 x 1 Cortex-R52 x 2	Buy / Quote Get Samples
Part Number	Logical Operator	Logical Operator			Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator		Logical Operator		Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator
R9A07G075M28GBG#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	194	LFBGA	320	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 24-ch	-	3.135 - 3.465	Cortex-R52 x 2	Get Samples, Buy / Quote
R9A07G075M26GBG#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	194	LFBGA	320	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 24-ch	-	3.135 - 3.465	Cortex-R52 x 2	Buy / Quote
R9A07G075M24GBG#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	194	LFBGA	320	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 24-ch	-	3.135 - 3.465	Cortex-R52 x 2	Get Samples, Buy / Quote
R9A07G075M22GBG#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	194	LFBGA	320	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 24-ch	-	3.135 - 3.465	Cortex-R52 x 2	Buy / Quote
R9A07G075M28GBA#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	135	LFBGA	225	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 12-ch	-	3.135 - 3.465	Cortex-R52 x 2	Buy / Quote
R9A07G075M26GBA#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	135	LFBGA	225	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 12-ch	-	3.135 - 3.465	Cortex-R52 x 2	Buy / Quote
R9A07G075M27GBA#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2		USB2.0 x 1 ch (1H/F/OTG)	135	LFBGA	225	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 12-ch	-	3.135 - 3.465	Cortex-R52 x 2	Buy / Quote
R9A07G075M24GBA#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	135	LFBGA	225	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 12-ch	-	3.135 - 3.465	Cortex-R52 x 2	Get Samples, Buy / Quote
R9A07G075M22GBA#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	135	LFBGA	225	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 12-ch	-	3.135 - 3.465	Cortex-R52 x 2	Buy / Quote
R9A07G075M21GBA#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2		USB2.0 x 1 ch (1H/F/OTG)	135	LFBGA	225	-40 to 125°C	2032 Aug	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 12-ch	-	3.135 - 3.465	Cortex-R52 x 2	Buy / Quote
R9A07G075M05GFP#AA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 1	800	32	-	1536	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2		USB2.0 x 1 ch (1H/F/OTG)	119	LFQFP	176	-40 to 125°C	N/A	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 8-ch	-	3.135 - 3.465	Cortex-R52 x 1	Buy / Quote
R9A07G075M01GFP#AA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	RZ/T	Cortex-R52 x 1	800	32	-	1536	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2		USB2.0 x 1 ch (1H/F/OTG)	119	LFQFP	176	-40 to 125°C	N/A	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 8-ch	-	3.135 - 3.465	Cortex-R52 x 1	Get Samples, Buy / Quote
R9A07G075M05GFA#AA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/T	Cortex-R52 x 1	800	32	-	1536	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2		USB2.0 x 1 ch (1H/F/OTG)	71	LFQFP	128	-40 to 125°C	N/A	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 8-ch	-	3.135 - 3.465	Cortex-R52 x 1	Buy / Quote
R9A07G075M01GFA#AA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	RZ/T	Cortex-R52 x 1	800	32	-	1536	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2		USB2.0 x 1 ch (1H/F/OTG)	71	LFQFP	128	-40 to 125°C	N/A	0	No	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 8-ch	-	3.135 - 3.465	Cortex-R52 x 1	Get Samples, Buy / Quote

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Support

RZ Forum

RZ Family FAQs

Contact Technical Support

Get Samples

MCU / MPU Selection Tool

Contact a Sales Representative

Renesas Samples

Select an orderable part number:

Orderable Part ID	Sample
R9A07G075M01GFA#AA0	Availability Add to request
R9A07G075M01GFP#AA0	Availability Add to request
R9A07G075M24GBA#AC0	Availability Add to request
R9A07G075M24GBG#AC0	Availability Add to request
R9A07G075M28GBG#AC0	Availability Add to request

Videos & Training

Getting Started with RZ/T2M FSP for FA-CODER

This video demonstrates how to start up RZ/T2M Group Encoder I/F FA-CODER sample program.

Video List

Getting Started with RZ/T2M FSP for FA-CODER

RZ/T2M RZ/T2L RZ/N2L Boot Mode Overview

Getting Started with RZ/T2M FSP for MTU3+POE3

RZ/T RZ/N FSP Quick Start Guide - FSP Installation and Generating Your First Project for e2 studio

RZ/T RZ/N FSP Quick Start Guide - FSP Installation and Generating Your First Project for EWARM and FSP SC

Getting Started with RZ/T2M FSP for Ethernet using lwIP

Getting Started with RZ/T2M FSP for ADC

RZ/T2M MPU Enables Next-Generation Real-Time Motor Control

Renesas RZ/T2M Industrial Grade Motor Control Solution

Introduction of RZ/T2M Motor Solution Kit

Getting Started with RZ/T2M FSP for DSMIF+GPT+POEG

News & Blog Posts

	Easy-to-use Software to Auto-Detect the Industrial Ethernet Protocol and Load the Corresponding Protocol Application	Blog Post	Jul 4, 2023
	How to Develop High-Performance and Multi-Functional Servo Motor Using RZ/T2M?	Blog Post	Jun 7, 2022

Menu

Back

Microcontrollers & Microprocessors

Applications

Design Resources

Sales & Support

About

Language

Account

High-performance Multi-function MPU Realizing High-speed Processing and High Precision Control for Industrial AC Servos and Controllers

Microcontrollers & Microprocessors

Overview

Applications

Documentation
