Renesas Starter Kit+ for RZ/N2L
Jump to Page Section:
Overview
Description

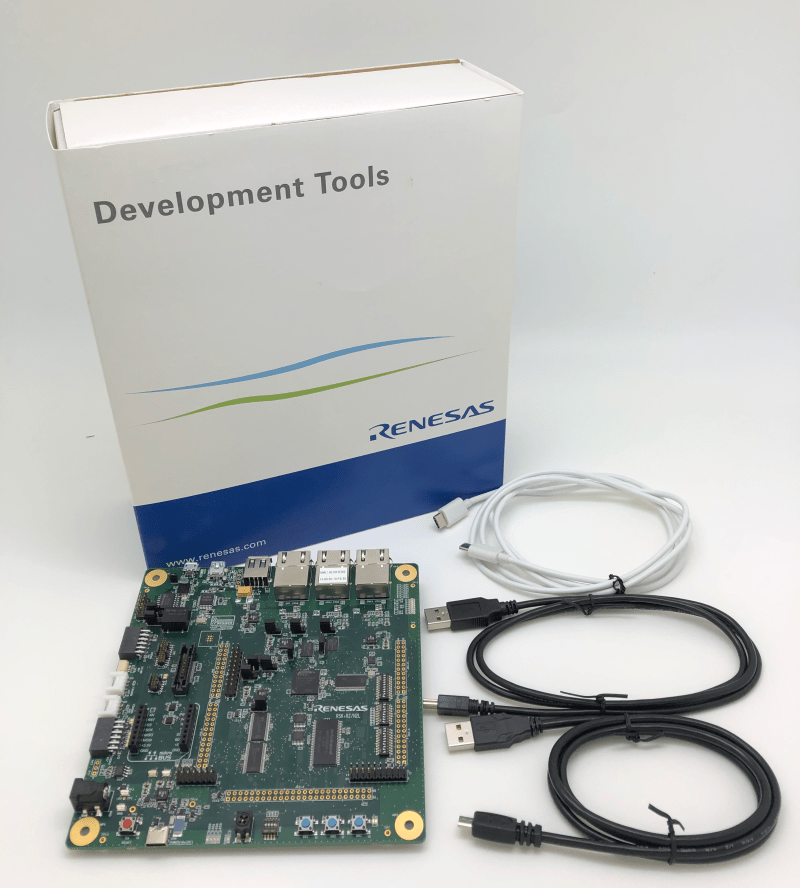

Renesas Starter Kit+ for RZ/N2L is for evaluation or development using the RZ/N2L MPU.
With the on-board emulator, you can start evaluation by simply connecting the bundled cable with your PC. This product has rich functional ICs such as Gigabit Ethernet PHY and Octal Flash, you can fully evaluate functions without an extension board.
Features

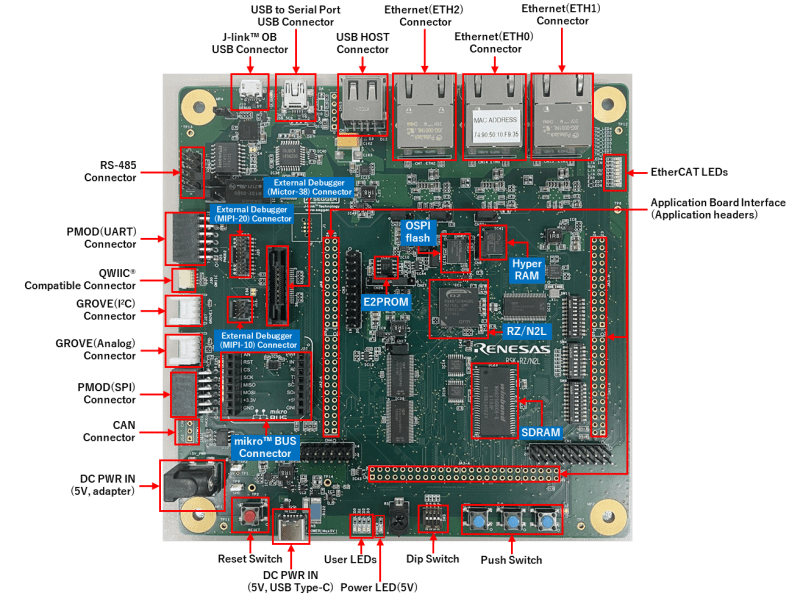

- On-board RZ/N2L MPU 225-pin (R9A07G084M04GBG)
- Rich functional ICs such as Gigabit Ethernet PHY and Octal Flash are mounted, so functions of target MPU can be fully evaluated
- Generic interfaces such as Pmod™/Grove®/Qwiic®/mikroBUS™
- Pin headers for external extension enable you to evaluate many use cases
- Emulator circuit is mounted, and program debugging can be started by simply connecting USB cable to PC (two USB cables are included, one for emulator and the other for power supply)
- Renesas IDE e² studio and Flexible Software Package (FSP) for RZ/N2L are available
