RZ/G2UL

Overview

The RZ/G2UL microprocessor includes a Cortex®-A55 (1.0 GHz) CPU, 16-bit DDR3L/DDR4 interface, and simple LCD controller. It also has many interfaces such as camera input, display output, USB 2.0, and Gbit-Ether, making it ideal for applications such as entry-class industrial gateway control and embedded devices with Simple GUI capabilities.

In addition, there are two types of RZ/G2UL.
Type-1 supports all functions and Type-2 supports pin compatibility with RZ/G2LC.
Please refer to RZ/G2UL Overview for the differences in the functions supported by each.
Type-1 Part Number: R9A07G043U11GBG#BC0
Type-2 Part Number: R9A07G043U12GBG#BC0

As a software platform for this product, Renesas provides the Verified Linux Package, which includes the Linux Kernel, middleware drivers, and basic software for this product. The Verified Linux package is verified and provided by Renesas. (For other operating systems support, please contact your local sales representative or distributor).

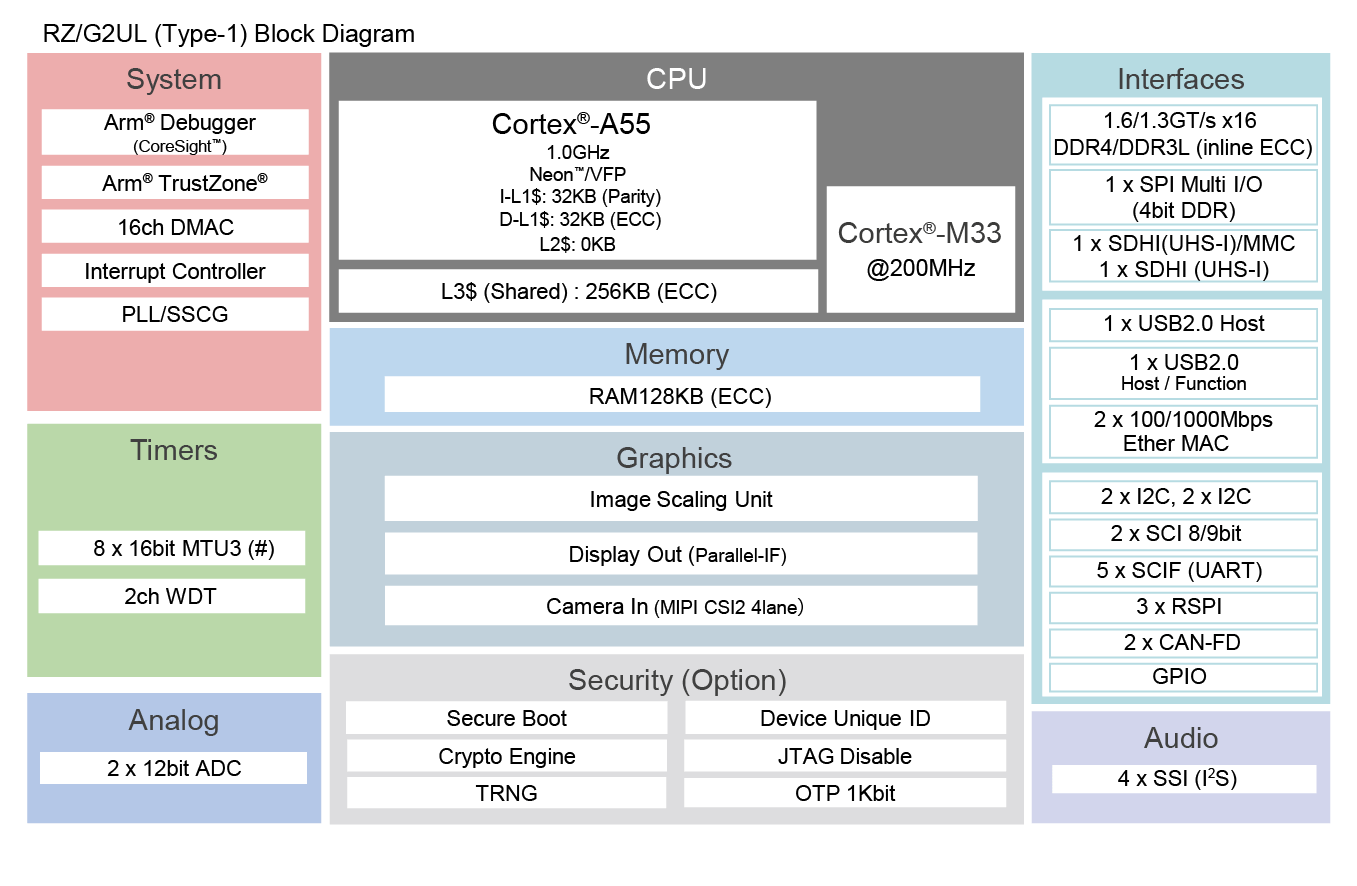

Cortex-A55 (Single)
Cortex-M33
LCD Controller
Camera interface (MIPI-CSI)
Display interface (Parallel-IF)
USB2.0 interface 2ch、SD interface 2ch
CAN interface (CAN-FD)
Giga bit Ethernet 2ch
Memory error detection / correction (ECC)
DDR4 or DDR3L Memory interface
BGA Package (13x13mm)

	RZ/G2UL	RZ/G2L	RZ/G2LC
CPU	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-A55 x 2 + Cortex-M33 x 1
Lead Count (#)	361	551	361
Operating Freq (Max) (MHz)	1000	1200	1200
GPU	-	Arm Mali-G31	Arm Mali-G31
		View Product	View Product

	Smart Home Controller with Multiple PHY
	SMARC System for Single-Core Cortex®-A55 MPU
	[RZ/A, RZ/G, RZ/N, RZ/T MPU] Macronix Boot Code Integrity OTA Function
	[RZ Family] iWave OSM LGA Module
	[RZ/G MPU] Reloc Single Board Computer
	[RZ/G MPU] Aries MSRZG2UL – SiP SoM
	[RZ/G MPU] RNX-RZG2UL-OSM
	[RZ/A, RZ/G, RZ/Five MPU] MYZR RZ System On Modules
	[RZ/A, RZ/G, RZ/Five MPU] iWave OSM-based Single Board Computer
	[RZ/G, RZ/Five MPU] MYIR RZ/G2UL & RZ/FIVE High-Performance SOM
	[RZ/V MPU] e-con e-CAM20 – RZ/V2L Full HD Global Shutter Camera
	[RZ/V MPU] e-con e-CAM21 – RZ/V2L Full HD Ultra Low Light Camera

Applications

Barcode scanner
Industrial gateway
Sound system

Documentation

Document title Title		Document type Type	Date Date
	RZ/G2UL Group User's Manual: Hardware ZIP 19.81 MB	Manual - Hardware	Jun 14, 2023
	RZ/G2UL Easy Download Guide PDF 538 KB 日本語	Guide	Sep 12, 2023
	RZ/G2L, RZ/G2LC, RZ/G2UL Flyer PDF 4.48 MB 日本語	Flyer	Mar 30, 2023
	RZ/G2UL PCB verification guide for DDR4/DDR3L ZIP 233.99 MB	Application Note	Sep 15, 2023
	Check List for Designing RZ/G2L, RZ/V2L, RZ/G2UL, RZ/Five and RZ/A3UL Circuit Boards ZIP 1.03 MB	Application Note	Apr 5, 2023
	RZ/G2UL Power Consumption Measurement PDF 257 KB	Application Note	Apr 4, 2023
	PCB Design Guideline for DDR4/DDR3L (Including DDR config generation tool) ZIP 2.85 MB	Application Note	Mar 29, 2023
	Guide to Using RGMII in Making an Ethernet-IF Connection PDF 172 KB	Application Note	Nov 23, 2022
	RZ/G2UL Reference power consumption guide(typ.) for use case PDF 99 KB	Application Note	Nov 10, 2022
	RZ/G2UL Thermal Management Guideline PDF 474 KB	Application Note	Nov 10, 2022
	RZ/G2UL Type-1, RZ/A3UL and RZ/Five Pin Compatibility Guide PDF 449 KB	Application Note	Jul 24, 2022
	RZ/G2LC and RZ/G2UL Type-2 Pin Compatibility Guide PDF 268 KB	Application Note	Jul 18, 2022
	Lifetime Guideline PDF 209 KB	Application Note	Jun 23, 2022
	Mechanical Handling Guideline PDF 316 KB	Application Note	Jun 23, 2022
	PCB Design Guidelines for MIPI-CSI, MIPI-DSI and USB2.0 PDF 432 KB	Application Note	May 29, 2022
	Mount Conditions Baking Conditions PDF 162 KB	Application Note	Apr 14, 2022
	Mount Conditions Reflow Soldering Conditions PDF 165 KB	Application Note	Apr 14, 2022
	RZ/G2UL PCB verification guide for Core VDD PDF 303 KB	Application Note	Apr 12, 2022
	RZ Family Brochure PDF 12.68 MB 日本語	Brochure	Apr 13, 2023
	Building Automation Brochure PDF 19.79 MB 日本語	Brochure	Dec 20, 2022
	Powered Up and Ready to Go Renesas/Intersil Joint Brochure PDF 5.27 MB	Brochure	May 24, 2017
	Renesas General-Purpose Microcontrollers/Microprocessors Lineup Catalog PDF 6.12 MB 日本語	Brochure	Oct 30, 2015
	Semiconductor Reliability Handbook PDF 14.70 MB 日本語	General Reliability Literature	Jan 30, 2017
	SMARC EVK of RZ/G2L, RZ/G2LC, RZ/G2UL, RZ/V2L, and RZ/Five Start-up Guide Rev.1.03 PDF 2.65 MB	Guide	Dec 26, 2022
	RZ SMARC Series Carrier Board User's Manual: Hardware ZIP 3.70 MB	Manual - Development Tools	Dec 12, 2022
	RZ/G2UL, RZ/A3UL, RZ/Five SMARC Module Board User's Manual: Hardware PDF 3.77 MB	Manual - Development Tools	Dec 12, 2022
	RZ/G2UL Group Overview for User's Manual: Hardware PDF 518 KB	Manual - Hardware	Nov 25, 2022
	RZ/G2L Group, RZ/V2L Group, and RZ/Five BSP Manual Set ZIP 9.83 MB	Manual - Software	Apr 4, 2023
	RZ/G2 Group Yocto Recipe Start-Up Guide for VLP v3.0.0 PDF 1.01 MB	Manual - Software	Mar 30, 2022
	Semiconductor Package Mount Manual PDF 10.28 MB 日本語 , 简体中文	Other	Dec 27, 2018
	QFN Mounting Manual PDF 3.19 MB 日本語 , 简体中文	Other	Jan 27, 2014
	R9A07G043UXXGBG Reliability Report PDF 410 KB	Product Reliability Report	Dec 15, 2022
	Release Note for WebUI package V1.0.0 (RZ/G Verified Linux Package V3) PDF 630 KB	Release Note	Jun 29, 2023
	Release Note for RZ/G Multi-OS Package V1.21 PDF 1006 KB Related Files: RZ/G2L CM33 Multi-OS Package V1.21	Release Note	Apr 27, 2023
	RZ/G Verified Linux Package V3.0.3 Release Note PDF 538 KB	Release Note	Apr 20, 2023
	RZ/G Verified Linux Package V3.0.3 Component List PDF 1.09 MB	Release Note	Mar 30, 2023
	RZ/G Verified Linux Package v3.0.1 Component List PDF 1.08 MB	Release Note	Sep 29, 2022
	Release Note for RZ/G Verified Linux Package v3.0.1 PDF 554 KB	Release Note	Sep 29, 2022
	RZ/G Verified Linux Package Version 3.0.0-update2 Component list PDF 800 KB	Release Note	Aug 8, 2022
	Release Note for RZ/G Verified Linux Package V3.0.0-update2 PDF 571 KB	Release Note	Aug 8, 2022
	RZ/G Verified Linux Package V3.0.0-update1 Component List PDF 1.09 MB	Release Note	Jul 19, 2022
	Release Note for RZ/G Verified Linux Package V3.0.0-update1 PDF 615 KB	Release Note	Jul 7, 2022
	RZ/G Verified Linux Package V3.0.0 Component List PDF 1.09 MB	Release Note	Mar 30, 2022
	Release Note for RZ/G Verified Linux Package V3.0.0 PDF 452 KB	Release Note	Mar 30, 2022
	Release Note for RZ/G2L Group Board Support Package V1.4 PDF 517 KB	Release Note	Mar 17, 2022
	RZ/G2L Group Board Support Package V1.4 Component List PDF 581 KB	Release Note	Feb 27, 2022
	Smart Configurator for RZ User's Guide Rev.1.00 PDF 1.30 MB	Release Note	Jul 31, 2020
	User's Manual Hardware correction : Modification of maximum transfer rate and access timing value for RSPI PDF 371 KB	Technical Update	Apr 27, 2023
	User's Manual Hardware correction : Supported interface for SD channel 1 PDF 429 KB	Technical Update	Jan 10, 2023
	User's Manual Hardware corrections for the division ratio setting of PLL1 PDF 535 KB	Technical Update	Aug 9, 2022
	Inner box change according to dampproof bag change and dampproof bag change PDF 3.10 MB 日本語	Technical Update	Aug 20, 2013
Add 8 hidden items 51 items

Design & Development

Software & Tools

Software title	Software type	Company

RZ/G Verified Linux Package [5.10-CIP] Linux Packages for MPUs of the RZ/G2 Group. Functions of this products have been verified and regular maintenance is also provided.	Software Package	Renesas
RZ/G2L and RZ/G2UL Group Multi-OS Package RZ/G2L CM33 Multi-OS Package is the software package consisting of Flexible Software Package (FSP) as software package for Renesas MCU with Arm® Cortex-M Core and OpenAMP as standardization API of framework for interprocessor communication for developing multi OS solution.	Software Package	Renesas
RZ MPU Security Package Security Package for MPUs of the RZ/G2L Group, RZ/V2L and RZ/Five. This package is used in combination with the Linux package provided for each device.	Software Package	Renesas
RZ Smart Configurator RZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins. Downloads Smart Configurator for RZ User's Guide Rev.1.00	Solution Toolkit	Renesas
e² studio - information for RZ Family Eclipse-based Renesas integrated development environment (IDE).	IDE and Coding Tool	Renesas
RZ MPU WebUI Package for Verified Linux Package [5.10-CIP] This product provides a WebUI package for RZ MPUs: WebUI is a web-based management tool that provides a user interface (UI) to users over a network.	Software Package	Renesas
6 items

Software Downloads

Software title Title	Software type Type	Date Date
RZ/G2UL SMARC Module Board Design Data V1.00 ZIP 24.07 MB	PCB Design Files	Aug 7, 2023
RZ SMARC Series Carrier Board Design Data V4.01 ZIP 20.06 MB	PCB Design Files	Jul 3, 2023
RZ/G2UL Pre-built Images (RZG2UL_VLP3.0.3_Pre-built_Images.zip) ZIP 680.81 MB Application: Consumer Electronics, IoT Applications Function: BSP, OS, Software Package	Software & Tools - Other	Jul 30, 2023
RZ/G Verified Linux Package v3.0.3(RTK0EF0045Z0021AZJ-v3.0.3.zip) ZIP 37.87 MB Application: Consumer Electronics, Industrial, IoT Applications Function: BSP, OS, Software Package	Software & Tools - Other	Jul 13, 2023
WebUI package V1.0.0 for RZ/G Verified Linux Package V3 (RTK0EF0045Z88001ZJ_v1.0.0.zip) ZIP 599 KB Application: Consumer Electronics, Industrial, IoT Applications	Software & Tools - Other	Jun 29, 2023
Open source packages(oss_pkg_rzg_v3.0.3.7z) 7Z 1,674.69 MB Application: Consumer Electronics, Industrial, IoT Applications Function: BSP, OS, Software Package	Software & Tools - Other	Mar 30, 2023
RZ/G2L CM33 Multi-OS Package V1.21 ZIP 4.04 MB Related Files: Release Note for RZ/G Multi-OS Package V1.21	Software & Tools - Software	Apr 27, 2023
RZG_FSP_Packs_v1.2.0 [Software=FSP\|v1.1.1],[Toolchains=GNU ARM Embedded\|v9.2.1.20191025] EXE 33.62 MB Compiler: GNU ARM Embedded IDE: e2 studio	Software & Tools - Software	Nov 30, 2022
Add 1 hidden item 8 items

Boards & Kits

RZ/G2UL-Evaluation-Board-Kit

Evaluation

Order Now

RZ/G2UL Evaluation Board Kit

This evaluation board kit is ideal for evaluating RZ/G2UL (Type-1). The RZ/G2UL Evaluation Board Kit consists of a module board (SOM) and a carrier board. The module...

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Models

Title Title	Type Type	Date Date
RZ/G2UL BSDL ZIP 12 KB	Model - BSDL	Apr 14, 2022
RZ/G2UL IBIS ZIP 20.31 MB	Model - IBIS	Apr 19, 2022
RZ/G2UL PDN Model ZIP 1.48 MB	Model - Other	Apr 13, 2022
3 items

Product Options

Processing table

	Series Name	Main CPU	Operating Freq (Max) (MHz)	Bit Size	Sub CPU	RAM (KB)	Memory Interface	GPU	Accelerator	PCIe Revision	CAN (ch)	Ethernet	USB	I/O Ports	Pkg. Type	Lead Count (#)	Temp. Range	PLP	Data Flash (KB)	RTC	DMA	Timer	ADC	Human Machine Interface	Security & Encryption	Supply Voltage (V)	CPU	Buy / Sample
(8) Active (0) Obsolete / NRND / LTB	RZ/G	Cortex-A55			Cortex-M33		DDR3L-1333 DDR4-1600 (16-bit)	-	-	-		10/100M/1G x 1 ch 10/100M/1G x 2 ch	USB2.0 x 2 ch (1H,1H/F/OTG)		LFBGA		-40 to 85°C			No	Yes	16-bit x 5-ch 16-bit x 8-ch	- 12-bit x 2-ch	- Display Function	- AES Arm TrustZone ECC Hash RSA Secure boot TRNG		Cortex-A55 x 1 + Cortex-M33 x 1	Buy / Quote Get Samples
Part Number	Logical Operator	Logical Operator			Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator		Logical Operator		Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator
R9A07G043U11GBG#BC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/G	Cortex-A55	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	-	-	-	2	10/100M/1G x 2 ch	USB2.0 x 2 ch (1H,1H/F/OTG)	82	LFBGA	361	-40 to 85°C	2032 Oct	0	No	Yes	16-bit x 8-ch	12-bit x 2-ch	Display Function	-	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	Buy / Quote
R9A07G043U12GBG#BC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/G	Cortex-A55	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	-	-	-	2	10/100M/1G x 1 ch	USB2.0 x 2 ch (1H,1H/F/OTG)	57	LFBGA	361	-40 to 85°C	2032 Oct	0	No	Yes	16-bit x 5-ch	-	-	-	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	Buy / Quote
R9A07G043U11GBG#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	RZ/G	Cortex-A55	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	-	-	-	2	10/100M/1G x 2 ch	USB2.0 x 2 ch (1H,1H/F/OTG)	82	LFBGA	361	-40 to 85°C	2032 Oct	0	No	Yes	16-bit x 8-ch	12-bit x 2-ch	Display Function	-	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	Get Samples, Buy / Quote
R9A07G043U12GBG#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/G	Cortex-A55	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	-	-	-	2	10/100M/1G x 1 ch	USB2.0 x 2 ch (1H,1H/F/OTG)	57	LFBGA	361	-40 to 85°C	2032 Oct	0	No	Yes	16-bit x 5-ch	-	-	-	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	Buy / Quote
R9A07G043U15GBG#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	RZ/G	Cortex-A55	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	-	-	-	2	10/100M/1G x 2 ch	USB2.0 x 2 ch (1H,1H/F/OTG)	82	LFBGA	361	-40 to 85°C	2032 Oct	0	No	Yes	16-bit x 8-ch	12-bit x 2-ch	Display Function	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	Get Samples, Buy / Quote
R9A07G043U15GBG#BC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/G	Cortex-A55	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	-	-	-	2	10/100M/1G x 2 ch	USB2.0 x 2 ch (1H,1H/F/OTG)	82	LFBGA	361	-40 to 85°C	2032 Oct	0	No	Yes	16-bit x 8-ch	12-bit x 2-ch	Display Function	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	Buy / Quote
R9A07G043U16GBG#AC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/G	Cortex-A55	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	-	-	-	2	10/100M/1G x 1 ch	USB2.0 x 2 ch (1H,1H/F/OTG)	57	LFBGA	361	-40 to 85°C	2032 Oct	0	No	Yes	16-bit x 5-ch	-	-	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	Buy / Quote
R9A07G043U16GBG#BC0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	RZ/G	Cortex-A55	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	-	-	-	2	10/100M/1G x 1 ch	USB2.0 x 2 ch (1H,1H/F/OTG)	57	LFBGA	361	-40 to 85°C	2032 Oct	0	No	Yes	16-bit x 5-ch	-	-	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	Buy / Quote

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product
