RH850/P1M-E

Microcontrollers & Microprocessors

Overview

The RH850/P1M-E Group of high-end MCUs are designed specifically for electronic power steering systems and supports the new CAN-FD communication standard.

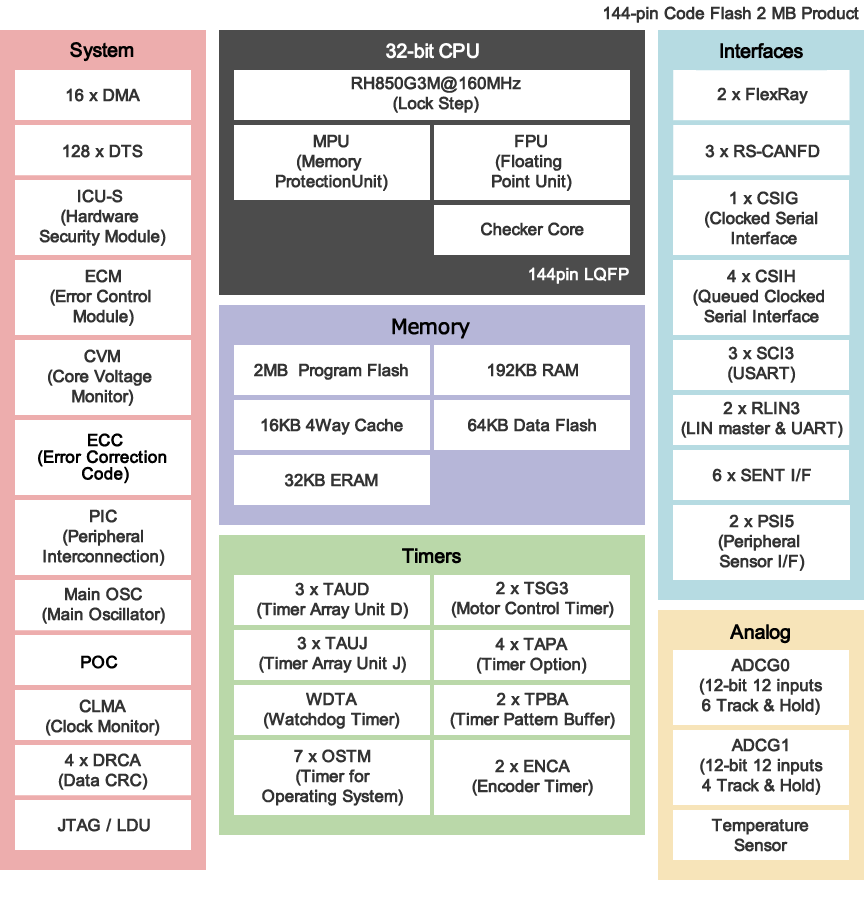

RH850/P1M-E Block Diagram

CPU: G3M core, Max. 160MHz
Voltage: 3V to 5.5V
Package: 100 to 144-pin LFQFP
Memory: SRAM Max. 192KB, Program Flash Max. 2MB
Timer: 32-bit Timer (ch) x 12, 16-bit Timer (ch) x 48, Watchdog Timer (ch) x 1, TSG3 x2unit, ENCA x2unit, OSTM x7unit, TPBA x2unit
PWM: PWM Output x 32, 3-phase PWM Output Function
Analog function: 12-bit A/D Converter (ch) x 24
On-chip Oscillator Freq. (MHz): 8 MHz
Others: PLL, Power-On Reset

Chassis & Safety
