Overview

The 70V25 is a high-speed 8K x 16 Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or wider memory system applications resulting in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.

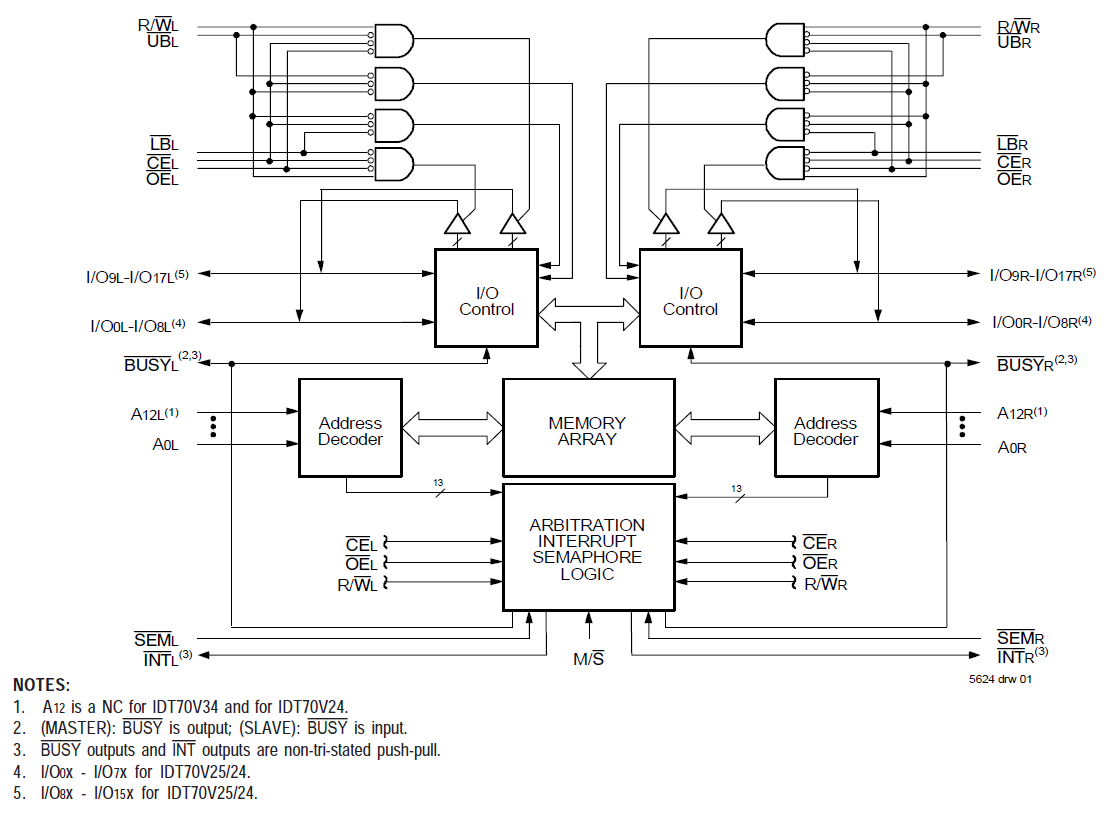

70V25 - Block Diagram
70V25 - Block Diagram
  • True Dual-Ported memory cells which allow simultaneous reads of the same memory location
  • Separate upper-byte and lower-byte control for multiplexed bus compatibility
  • 70V25 easily expands data bus width to 32 bits or more
  • BUSY and Interrupt Flag
  • On-chip port arbitration logic
  • Full on-chip hardware support of semaphore signaling between ports
  • Fully asynchronous operation from either port
  • LVTTL-compatible, single 3.3V (±0.3V) power supply
  • Available in a 100-pin TQFP and 84-pin PGA and PLCC packages
  • Industrial temperature range (-40C to +85C) is available

Documentation

Title
Type 		Date
70V35/34/25/24 Data Sheet
PDF 482 KB 		Datasheet
Cypress Discontinued Dual-port and FIFO to IDT Cross Reference Guide
PDF 123 KB 		Guide
PDN# : SP-17-02 PRODUCT DISCONTINUANCE NOTICE FOR SPO DEVICES
PDF 645 KB 		End Of Life Notice
PCN# : A1606-02 Add Greatek Taiwan as Alternate Assembly
PDF 567 KB 		Product Change Notice
PCN# : A1212-01 Change of Mold Compound
PDF 100 KB 		Product Change Notice
PCN#: A-0410-02, Change IDT marking logo with new IDT gridless w
PDF 24 KB 		Product Change Notice
PCN# : A-0610-02 ASAT China as Alternate Facility for CABGA/CVBGA/FPBGA/TQFP/PQFP
PDF 252 KB 		Product Change Notice
PCN# A-0607-06 MMT Thailand as Alternate Assembly Facility for PLCC, SOIC 150mil/300mil
PDF 223 KB 		Product Change Notice
AN-70, Dual-Port Interrupt Expansion
PDF 129 KB 		Application Note
AN-91, The Most Commonly Asked Questions About Async Dual-Ports
PDF 197 KB 		Application Note
AN-59, Using 7024/7025 DP SRAMs to Match System Bus Widths
PDF 182 KB 		Application Note
AN-68, Dual-Port SRAM Simplifies PC-to-TMS320 Interface
PDF 198 KB 		Application Note
AN-410 Low Power DPs in Advanced Handset Applications
PDF 108 KB 		Application Note
AN-09, Dual-Port SRAMs Yield Bit-Slice Designs
PDF 156 KB 		Application Note
AN-14, Dual-Port w/ Semaphore Arbitration
PDF 183 KB 		Application Note
AN-253, Introduction to Multi-Port Memories
PDF 97 KB 		Application Note
A-0603-04 Transfer TQFP and PQFP from ASAT HK to ASAT China
PDF 164 KB 		Product Change Notice
PCN#: TB-0512-01 Reel Color Changed from Blue to Black
PDF 729 KB 		Product Change Notice
PCN A-0506-03; Packing Material Change
PDF 290 KB 		Product Change Notice
PCN# SM-0504-03 Change in unit quantity per tray for BF/BFG 100
PDF 153 KB 		Product Change Notice
PCN#: A-0412-04 - To comply with Pb-free labels - Green Products
PDF 80 KB 		Product Change Notice
PCN#: A-0403-03, BGA package family
PDF 38 KB 		Product Change Notice
PCN#:A-0309-06 Rev1, Hermetic transfer to ATP-P1
PDF 44 KB 		Product Change Notice
PCN#: A-0305-04 Rev. 01, Tin Plating and Solder Dip Process at G
PDF 38 KB 		Product Change Notice
PCN#: A-0310-01, Green Products
PDF 26 KB 		Product Change Notice
PCN#: A-0309-04, new mold compound G600 material
PDF 134 KB 		Product Change Notice
PCN#: G-0302-06, New die attach 3230 from Ablestik
PDF 150 KB 		Product Change Notice
PCN#G-0302-05, New mold compound EME-G700 series
PDF 65 KB 		Product Change Notice
PCN#:G-0303-01, new m/c G700 & 3230 d/a material
PDF 138 KB 		Product Change Notice
PCN# G-0206-08, Orientation of square PQFP & TQFP
PDF 150 KB 		Product Change Notice
PCN# G-0110-06 REV.1 Mold Compound
PDF 48 KB 		Product Change Notice
PCN# G-0203-05 Mold Compound
PDF 40 KB 		Product Change Notice
PCN SM0112-03 Die rev. V(cmos8) to U(cmos9)
PDF 32 KB 		Product Change Notice
PCN# G0106-01, Moisture Sensitive Label Change
PDF 274 KB 		Product Change Notice
PCN 9912-01 - 3.3V Process Change
PDF 21 KB 		Product Change Notice
PCN# G9911-05, To qualify low alpha mold compound.
PDF 44 KB 		Product Change Notice
36 items

Design & Development

Software Downloads

Title
Type Date
PDN# : SP-17-02 PRODUCT DISCONTINUANCE NOTICE FOR SPO DEVICES
PDF 645 KB 		End Of Life Notice
1 item

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Models

Title
Type Date
70V25J PLCC IBIS Model
ZIP 8 KB 		Model - IBIS
70V25J PLCC HSpice Model
TAR 40 KB 		Model - SPICE
70V25PF TQFP IBIS Model
ZIP 8 KB 		Model - IBIS
3 items

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Buy / Sample
    Part Number
    70V25L15PFG
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 TQFP 100 C Yes Tray Get Samples,
    70V25L15PFG8
    play_circleActive
    memory
    view_in_ar
    		TQFP 100 C Yes Reel
    70V25L20PFGI
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 TQFP 100 I Yes Tray Get Samples,
    70V25L20PFGI8
    play_circleActive
    memory
    view_in_ar
    		TQFP 100 I Yes Reel
    70V25L25PFGI
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 TQFP 100 I Yes Tray Get Samples,
    70V25L25PFGI8
    play_circleActive
    memory
    view_in_ar
    		TQFP 100 I Yes Reel
    70V25S25PFGI
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 TQFP 100 I Yes Tray Get Samples,
    70V25S25PFGI8
    play_circleActive
    memory
    view_in_ar
    		TQFP 100 I Yes Reel
    70V25S35PFG
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 TQFP 100 C Yes Tray Get Samples,
