Overview
Description

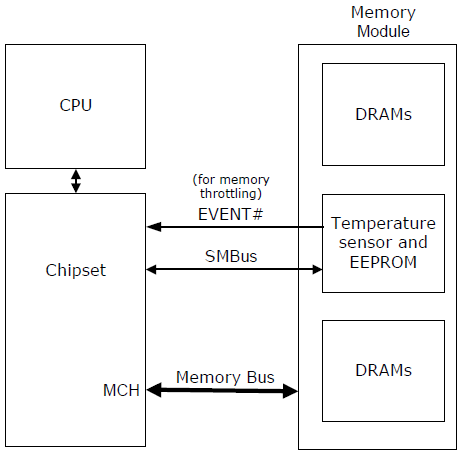

The TSE2004GB2C0 is a digital temperature sensor with integrated 4 Kbit EEPROM for memory modules. It features accuracy up to ±0.5°C and is designed to target applications demanding the highest level of temperature readout.
Features
-
Temperature Sensor + 512 byte serial EEPROM
-
512 byte serial EEPROM for SPD
-
Single supply: 2.2V to 3.6V
-
Accurate timeout support
-
Meets strict SMBus spec of 25ms (min), 35ms (max)
-
-
Timeout supported for Temp Sensor and EEPROM
-
Timeout supported in all modes
-
Active mode for Temp Sensor and EEPROM
-
EEPROM in standby or Temp Sensor in shutdown
-
EEPROM in standby and Temp Sensor in shutdown
-
-
Schmitt trigger and noise filtering on bus inputs
-
2-wire serial interface: 10kHz to 1MHz max I2C™ /SMBus™
-
Available package: 8-TDFN
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| DFN | 8 | C | Yes | Reel | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
