Overview
Description

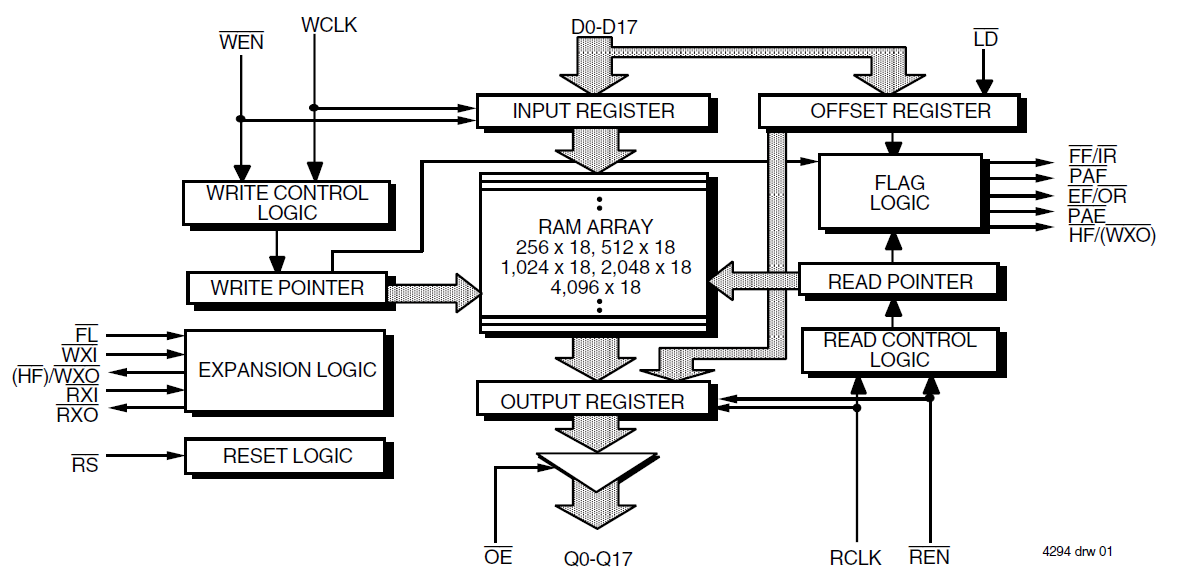

The 72V225 is a 1K x 18 first-in, first-out memory with clocked read and write controls. It is a 3.3V version of the 72225 FIFO and is applicable for a wide variety of data buffering needs, such as optical disk controllers, Local Area Networks (LANs), and interprocessor communication. It has 18-bit input and output ports. The Read Clock(RCLK) can be tied to the Write Clock for single clock operation or the two clocks can run asynchronous of one another for dual-clock operation.
Features
- 10 ns read/write cycle time
- 5V input tolerant
- IDT Standard or First Word Fall Through timing
- Single or double register-buffered Empty and Full flags
- Easily expandable in depth and width
- Asynchronous or coincident Read and Write Clocks
- Asynchronous or synchronous programmable Almost-Empty and Almost-Full flags with default settings
- Half-Full flag capability
- Output enable puts output data bus in high-impedance state
- Available in 64-pin TQFP and STQFP packages
- Industrial temperature range (–40C to +85C) is available
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 272 KB | Datasheet | ||
| PDF 645 KB | End Of Life Notice | ||
| PDF 123 KB | Guide | ||
| PDF 567 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 95 KB | Product Change Notice | ||
| PDF 50 KB | Product Change Notice | ||
| PDF 24 KB | Product Change Notice | ||
| PDF 252 KB | Product Change Notice | ||
| PDF 164 KB | Product Change Notice | ||
| PDF 290 KB | Product Change Notice | ||
| PDF 80 KB | Product Change Notice | ||
| PDF 26 KB | Product Change Notice | ||
| PDF 150 KB | Product Change Notice | ||
| PDF 65 KB | Product Change Notice | ||
| PDF 150 KB | Product Change Notice | ||
| PDF 49 KB | Product Change Notice | ||
| PDF 48 KB | Product Change Notice | ||
| PDF 274 KB | Product Change Notice | ||
| PDF 44 KB | Product Change Notice | ||
21 items
|
|||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|---|
| Part Number | ||||||
| TQFP | 64 | C | Yes | Tray | Get Samples, | |
| TQFP | 64 | C | Yes | Reel | ||
| TQFP | 64 | C | Yes | Tray | Get Samples, |
