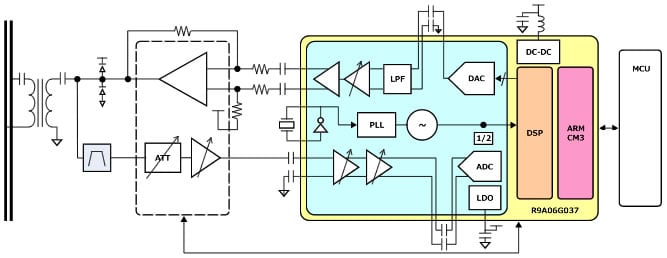

The R9A06G037 is a high performance NB-PLC (Narrow Band Power Line Communication) modem IC. It integrates a high performance DSP core and a MCU core (Arm® Cortex®-M3). The DSP core mainly handles PLC PHY layer protocol and the ARM core handles the upper layer protocol. R9A06G037 can support a variety of PLC protocols such as G3-PLC (CENELEC, ARIB and FCC), PRIME and many others.


  • High performance DSP
    • Handles PLC PHY layer and other real time operations
    • 276MHz maximum clock frequency
    • 128KB of instruction RAM and 128KB of data RAM
    • Dedicated instructions for Vitervi, read Solomon and other
  • MCU (Arm® Cortex®-M3)
    • Handles PLC MAC layer and upper layer operation
    • 138 MHz maximum clock frequency
    • 512KB of RAM
    • AES128 encryption and decryption hardware engine
    • CRC hardware engine
  • 16KB of shared memory
  • Analog Front End circuit
  • Programmable and Multiplexed General-Purpose Input/Output (GPIO) Pins
  • UART (2ch), CSI (2ch), IIC, Serial-ROM-IF (Single/Dual/Quad), PWM (2ch) and GPIO (16)
  • Integrated regulator : 3.3V input and 1.1V output
  • Power Supply Voltage : 3.3V
  • PKG: 64-pin QFN, 9mm x 9mm, 0.5mm pitch
  • Operating Temperature : -40 to +85℃




  • Smart meter
  • HVAC
  • Fire & Safety
  • Building Security
  • Lighting equipment control
  • Solar power system
