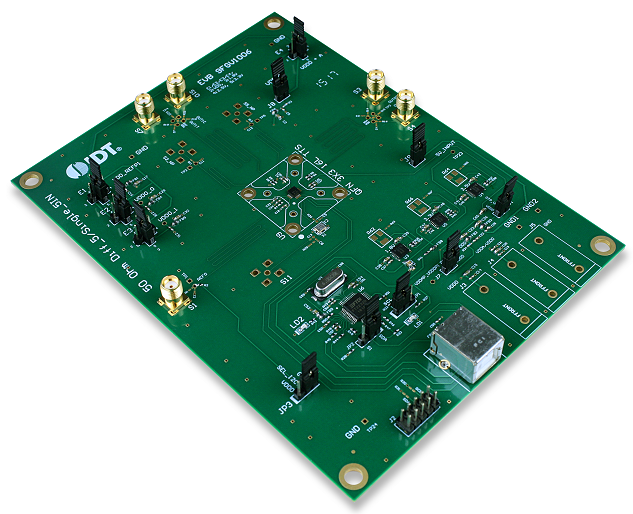

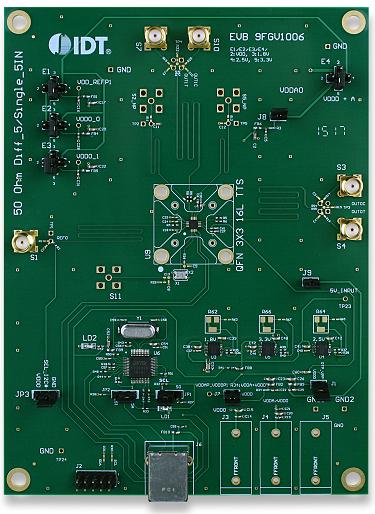

This is the evaluation board for the 9FGV1006 programmable PhiClockTM generator. It provides a convenient way of configuring and programming the blank parts for the 9FGV1006 device. With the on-board USB interface, the Renesas Timing CommanderTM GUI can communicate to the device for configuration and frequency validation.

Features

  • USB powered
  • USB cable
  • Board is USB 2.0/3.0 compatible
  • Free Timing CommanderTM software

descriptionDocumentation

Title language Type Format File Size Date
star 9FGV1006 / 9FGV1008 PhiClock PCIe Evaluation Board User Guide Manual - Software PDF 728 KB

file_downloadDownloads

Title language Type Format File Size Date
Timing Commander Installer (v1.17) Software & Tools - Other ZIP 18.02 MB
