Overview
Description

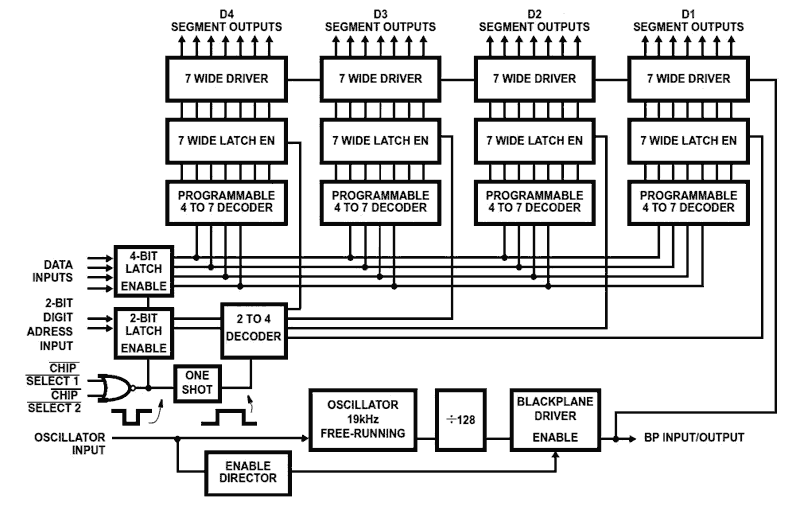

The ICM7211AM device is a non-multiplexed four-digit seven-segment CMOS LCD display decoder-driver. This device is configured to drive conventional LCD displays by providing a complete RC oscillator, divider chain, backplane driver, and 28 segment outputs. It also has a microprocessor compatible input configuration, which provides data input latches and Digit Address latches under control of high-speed Chip Select inputs. These devices simplify the task of implementing a cost-effective alphanumeric seven-segment display for microprocessor systems, without requiring extensive ROM or CPU time for decoding and display updating. The ICM7211AM provides the Code B output code, i. e. , 0-9, dash, E, H, L, P, blank, but will correctly decode true BCD to seven-segment decimal outputs.
Features
- Four Digit Non-Multiplexed 7 Segment LCD Display Outputs with Backplane Driver
- Complete Onboard RC Oscillator to Generate Backplane Frequency
- Backplane Input/Output Allows Simple Synchronization Slave-Devices to a Master
- Provides Data and Digit Address Latches Controlled Chip Select Inputs to Provide a Direct High-Speed Processor Interface
- Decodes Binary to Code B (0-9, Dash, E, H, L, P, Blank)
- Pb-Free Plus Anneal Available (RoHS Compliant)
Documentation
|
|
Date | |
|---|---|---|
| PDF 491 KB | Datasheet | |
| PDF 4.86 MB 日本語 | Product Change Notice | |
| PDF 320 KB | End Of Life Notice | |
| PDF 3.74 MB 日本語 | Product Change Notice | |
| PDF 227 KB | Price Increase Notice | |
| PDF 1.46 MB 日本語 | Product Change Notice | |
| PDF 5.23 MB | Brochure | |
| PDF 1.32 MB | Brochure | |
| PDF 1.57 MB | Application Note | |
|
9 items
|
||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
ICM7211AMIPLZ Active Samples Available |
PDIP | Tube | 2772 | Get Samples, |
