200MHz Rail-to-Rail Amplifiers
Jump to Page Section:
Overview
Description
Support is limited to customers who have already adopted these products.

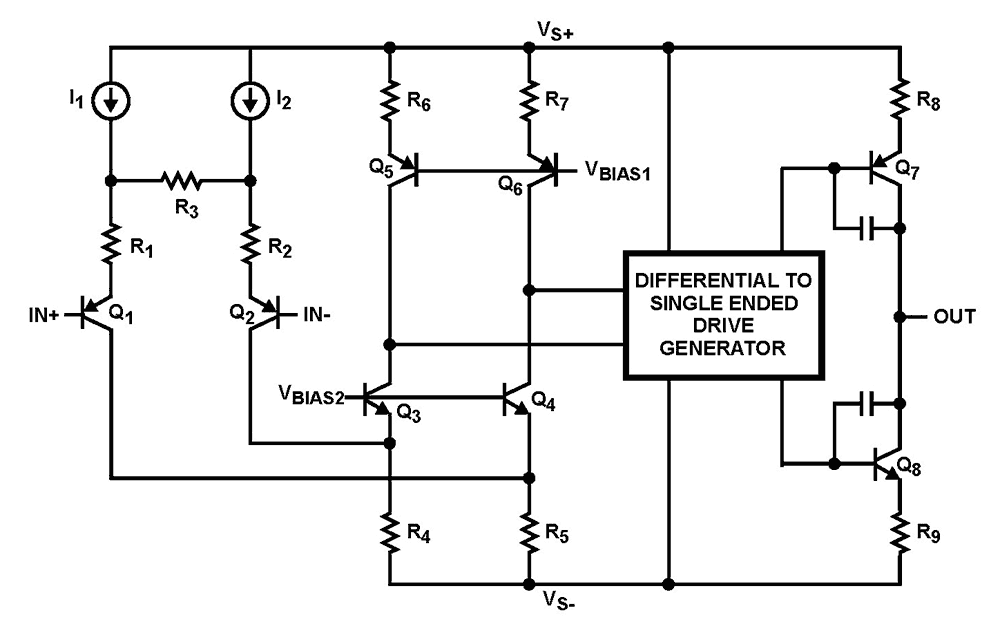

The EL8100 and EL8101 represent single rail-to-rail amplifiers with a -3dB bandwidth of 200MHz and slew rate of 200V/µs. Running off a very low 2mA supply current, the EL8100 and EL8101 also feature inputs that go to 0. 15V below the VS- rail. The EL8100 includes a fast-acting disable/power-down circuit. With a 25ns disable and a 200ns enable, the EL8100 is ideal for multiplexing applications. The EL8100 and EL8101 are designed for a number of general purpose video, communication, instrumentation, and industrial applications. The EL8100 is available in 8 Ld SO and 6 Ld SOT-23 packages and the EL8101 is available in a 5 Ld SOT-23 package. All are specified for operation over the -40°C to +85°C temperature range.
Features
- 200MHz -3dB bandwidth
- 200V/µs slew rate
- Low supply current = 2mA
- Supplies from 3V to 5.0V
- Rail-to-rail output
- Input to 0.15V below VS-
- Fast 25ns disable (EL8100 only)
- Low cost
- Pb-Free (RoHS compliant)
Applications
Applications
- Video amplifiers
- Portable/hand-held products
- Communications devices
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 831 KB | Datasheet | ||
| PDF 974 KB | Application Note | ||
| PDF 381 KB | Application Note | ||
| PDF 263 KB | Application Note | ||
| PDF 564 KB | Application Note | ||
| PDF 8.19 MB | Application Note | ||
| PDF 357 KB | Application Note | ||
| PDF 843 KB | Application Note | ||
| PDF 4.91 MB 日本語 | Brochure | ||
| PDF 228 KB | End Of Life Notice | ||
| PDF 1.11 MB | Flyer | ||
| PDF 519 KB | Other | ||
| PDF 407 KB | Other | ||
| PDF 372 KB | Other | ||
| PDF 363 KB | Product Advisory | ||
| PDF 557 KB | Product Change Notice | ||
| PDF 152 KB | Product Change Notice | ||
| PDF 135 KB | Product Change Notice | ||
| PDF 258 KB | Training | ||
| PDF 325 KB | Training | ||
20 items
|
|||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| SOICN | Tube | 1940 | ||
| SOICN | Reel | 2500 | ||
| SOICN | Reel | 2000 | ||
| SOT23 | Reel | 3000 | ||
| SOT23 | Reel | 250 |
