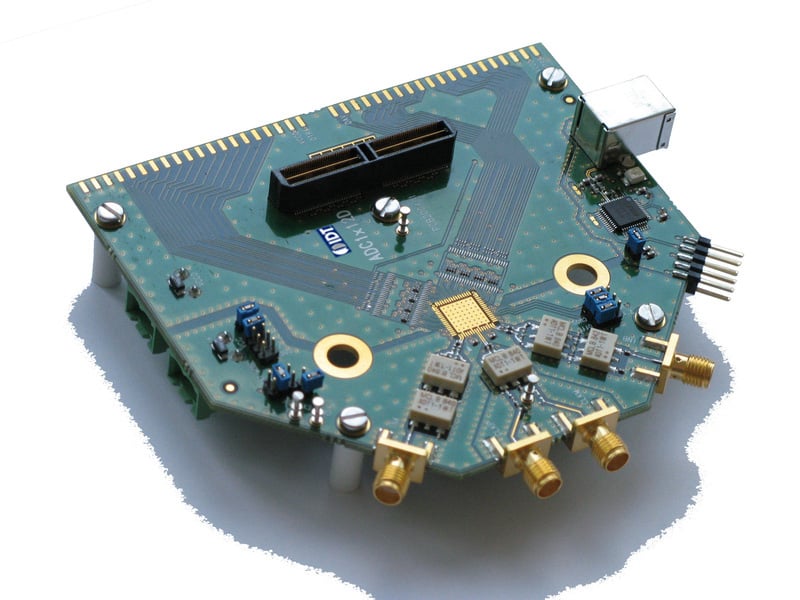

ADC1112D125F2 demo board; LVDS/DDR version;
Jump to Page Section:
Overview
Description
IDT's dual-channel ADC demoboard is suitable for dynamic performance evaluations from low to high IF configuration with LVDS/DDR output variants. A data-acquisition board can be used during design and prototype to analyze ADC performance.
Features
- SMA connector for clock and analog inputs signal
- LVDS/DDR output
Product Options
Processing table
| BD0 | BOARD | 0 | I | No |
