Overview

Description

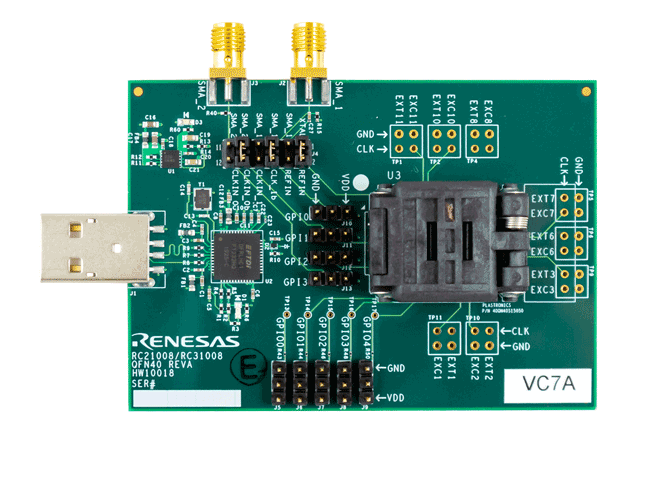

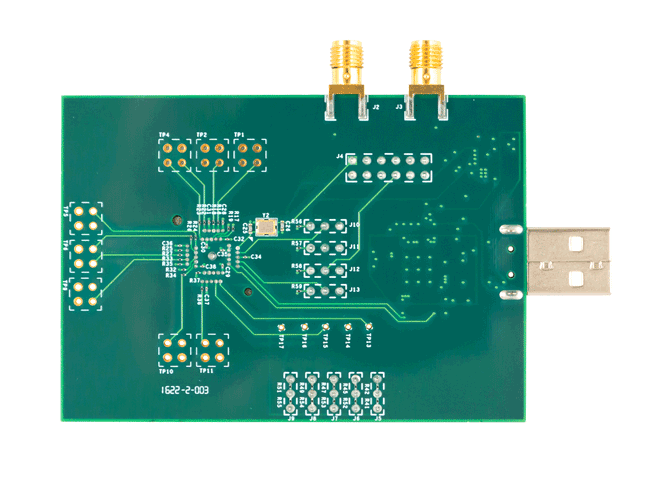

The VersaClock 7 programmer board is made to ease the programming of RC21008, RC31008 blank devices. With the on-board USB interface, RICBox™ GUI can be used to communicate with the blank device in the socket for configuration and programming.

Features

  • Programmer board is powered using USB port.
  • Programmer board uses RICBox™ GUI – to program the blank parts
  • Program VersaClock 7 –RCx1008, RC31008 blank part in the socket

Documentation

Title Type Date
PDF970 KB
Manual - Software
PDF496 KB
Guide
PDF1.73 MB
Manual - Software
PDF154 KB
Schematic

Design & Development

Software & Tools

Software & Tools

Renesas IC Toolbox (RICBox)The Renesas IC Toolbox (RICBox) software platform enables customers to configure Renesas devices on evaluation kits when attached to the computer running the software.Downloads: Software Package Renesas

Software Downloads

Title Type Date
ZIP18 KB
PCB Design Files
