Overview

Description

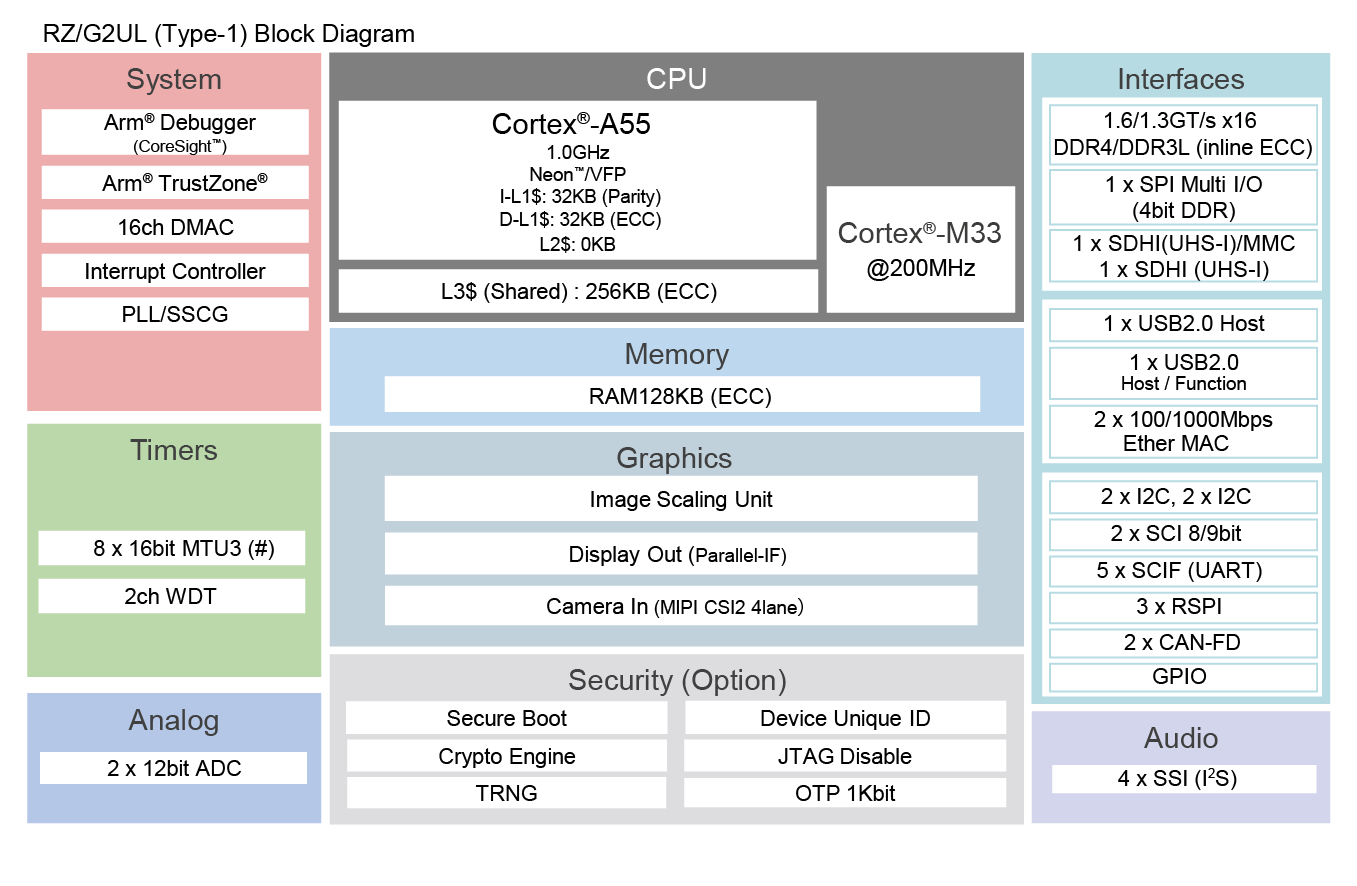

The RZ/G2UL microprocessor includes a Cortex®-A55 (1.0 GHz) CPU, 16-bit DDR3L/DDR4 interface, and simple LCD controller. It also has many interfaces such as camera input, display output, USB 2.0, and Gbit-Ether, making it ideal for applications such as entry-class industrial gateway control and embedded devices with Simple GUI capabilities.

In addition, there are two types of RZ/G2UL.
Type-1 supports all functions and Type-2 supports pin compatibility with RZ/G2LC.
Please refer to RZ/G2UL Overview for the differences in the functions supported by each.
Type-1 Part Numner:R9A07G043U11GBG#BC0
Type-2 Part Number:R9A07G043U12GBG#BC0

Features

  • Cortex-A55 (Single)
  • Cortex-M33
  • LCD Controller
  • Camera interface (MIPI-CSI)
  • Display interface (Parallerl-IF)
  • USB2.0 interface 2ch、SD interface 2ch
  • CAN interface (CAN-FD)
  • Giga bit Ethernet 2ch
  • Memory error detection / correction (ECC)
  • DDR4 or DDR3L Memory interface
  • BGA Package (13x13mm)

Comparison

RZ/G2UL RZ/G2L RZ/G2LC
CPU Cortex-A55 x 1 + Cortex-M33 x 1 Cortex-A55 x 2 + Cortex-M33 x 1 Cortex-A55 x 2 + Cortex-M33 x 1
Lead Count (#) 361 551 361
Operating Freq (Max) (MHz) 1000 1200 1200
GPU - Arm Mali-G31 Arm Mali-G31
View Product View Product

Applications

Applications

  • Barcode scanner
  • Industrial gateway
  • Sound system
