82P2821

Active

21(+1) Channel T1/J1/E1 Short Haul LIU

Order Now
82P2821 Datasheet

Overview

21 (+1)-Channel T1/E1/J1 Short Haul Line Interface Unit. This device has an adaptive equalizer integrated, performs clock.data recovery, line decoding/encoding and has one jitter attenuator. Optimized to be used in LAN, WAN, Routers, Wireless Base Stations, Gateways etc.

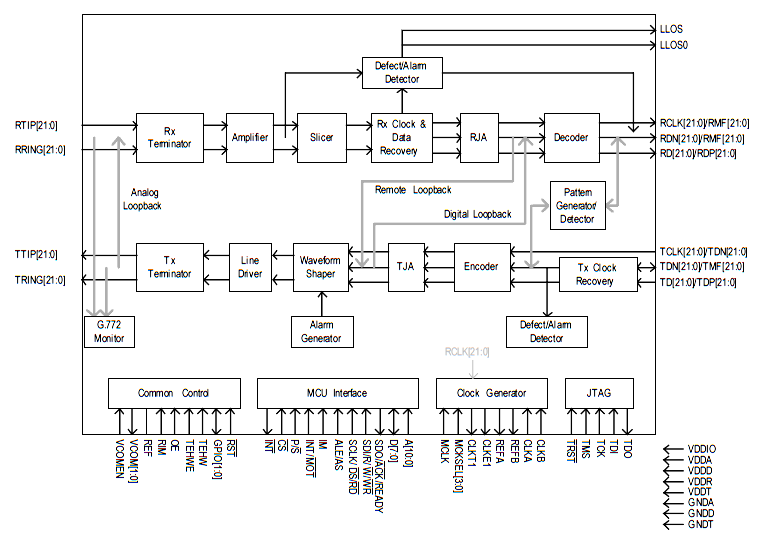

82P2821 Block Diagram
82P2821 Block Diagram

Documentation

Featured Documentation
Type Title Date
Datasheet
82P2821 Datasheet
PDF 1.75 MB
Product Change Notice
PCN# : A1504-03 Transfer Assembly Location from ATK to ATP on Select Products
PDF 524 KB
Application Note
AN-853 Application Considerations Using 82V204 to Replace LXT384
PDF 162 KB
Application Note
AN-854 Competitive Comparison Analysis on Octal LIU
PDF 118 KB
Datasheet Change Notice
82P2821 Datasheet Change Notice
PDF 130 KB
Application Note
AN-524: Impedance Compensation in High Density LIU Fully Internal Impedance Mode
PDF 216 KB
Application Note
AN-377: LIU & Transceiver, Transformer Selection Guide
PDF 283 KB
Product Change Notice
PCN#: TB-0512-01 Reel Color Changed from Blue to Black
PDF 729 KB
Application Note
AN-522: Hitless Protection Switching Without Relays
PDF 437 KB
