89HP0608S

Obsolete

SAS/SATA Signal Repeater

89HP0608S Data Sheet

Overview

The IDT 89HP0608S 8-channel SAS / SATA Repeater offers the industry a blend of top analog performance, lower power, and the most system level features in signal repeaters optimized for demanding 1.5Gbps to 6G applications in computing, storage, and communications.

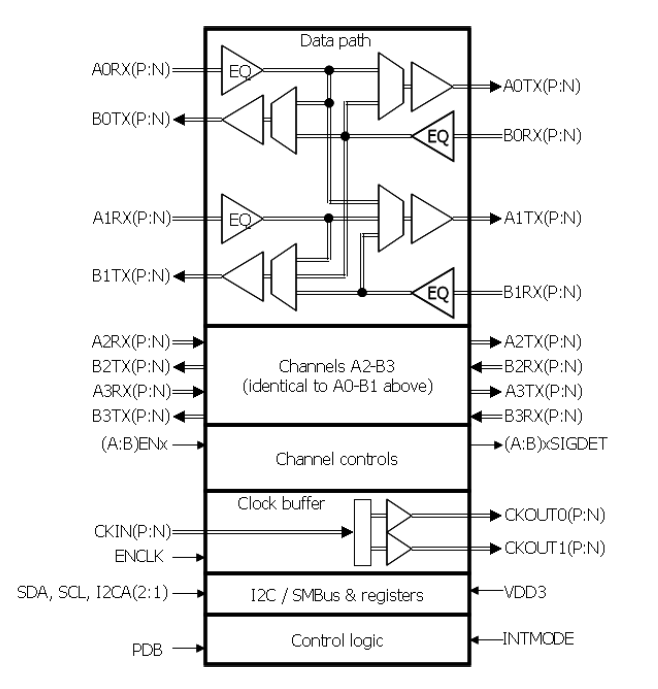

89HP0608S - Block Diagram
89HP0608S - Block Diagram
  • 8 channel SAS / SATA signal repeater
  • Advanced signal conditioning features
  • Advanced diagnostic features
  • Advanced power saving features
  • Built-in mux/demux for Fail-Over support
  • I2C programming interface
  • Commercial and Industrial temperature

Documentation

Featured Documentation
Type Title Date
Datasheet
89HP0608S Data Sheet
Log in to Download PDF 1.63 MB
End Of Life Notice
PLC# : 240001 End-of-Life (EOL) process on select part numbers
PDF 1.11 MB
End Of Life Notice
PDN# : CQ-17-02R1 Quarterly Market Declined PDN (revision1)
PDF 647 KB
End Of Life Notice
PDN# : CQ-17-02 Quarterly Market Declined PDN
PDF 898 KB
Device Errata
89HP0608S Device Errata (Revision ZB)
Log in to Download PDF 31 KB
Application Note
EEPROM Operation with IDT Data Repeaters
Log in to Download PDF 739 KB
Product Brief
IDT 89HP0608S 1.5Gbps to 6Gbps SAS/SATA Signal Repeater product brief
PDF 401 KB
Product Brief
IDT Signal Integrity Products Family Flyer
PDF 217 KB
8 items
