I2C Bus Buffer with Rise Time Accelerators and Hot Swap Capability
Jump to Page Section:
Overview
Description

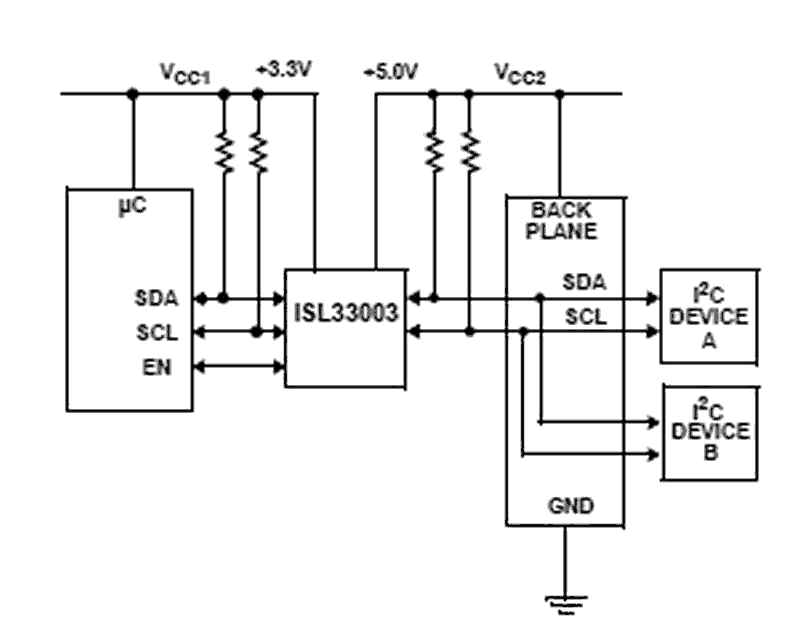

The ISL33002 two-channel bus buffer provides the buffering necessary to extend the bus capacitance beyond the 400pF maximum specified by the I2C specification. In addition, the ISL33002 features rise time accelerator circuitry to reduce power consumption from passive bus pull-up resistors and improve data-rate performance. The device also includes hot-swap circuitry to prevent corruption of the data and clock lines when I2C devices are plugged into a live backplane, and the ISL33002 adds level translation for mixed supply voltage applications. The ISL33002 operates at supply voltages from +2.3V to +5.5V at a temperature range of -40 °C to +85 °C.
Features
- Two-channel I2C compatible bidirectional buffer
- +2.3VDC to +5.5VDC supply range
- >400kHz operation
- Bus capacitance buffering
- Rise time accelerators
- Hot swapping capability
- ±6kV Class 3 HBM ESD protection on all pins
- ±12kV HBM ESD protection on SDA/SCL pins
- Logic level translation
- Accelerator disable pin
- Pb-free (RoHS compliant) 8 Ld TDFN (3mm x 3mm) and 8 Ld MSOP packages
- Low quiescent current: 2.1mA typ
- Low shutdown current: 0.5µA typ
Applications
Applications
- I2C bus extender and capacitance buffering
- Server racks for telecom, datacom and computer servers
- Desktop computers
- Hot-swap board insertion and bus isolation
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.15 MB
|
Datasheet
|
||
PDF303 KB
|
Application Note
|
||
Brochure
|
|||
PDF1.17 MB
|
End Of Life Notice
|
||
PA22010 - Datasheet specification change for listed Renesas ISL33001*, ISL33002*, ISL33003* Products PDF164 KB
|
Product Advisory
|
||
PDF363 KB
|
Product Advisory
|
||
PDF202 KB
|
Product Change Notice
|
||
PDF326 KB
|
Product Change Notice
|
||
PDF106 KB
|
Product Change Notice
|
||
PDF173 KB
|
Product Change Notice
|
||
PDF84 KB
|
Product Change Notice
|
||
PDF117 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
I2C Bus Buffer with Rise Time Accelerators and Hot Swap Capability Evaluation Board
The ISL33002MSOPEVAL1Z evaluation board is designed to provide a quick and easy method for evaluating the ISL33002 two-channel bus buffer with rise time accelerators...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
ISL33002IRT2Z Active Samples Available |
TDFN | Tube | 2000 | Get Samples, |
| TDFN | Reel | 6000 | ||
| MSOP | Tube | 2000 | Get Samples, | |
ISL33002IUZ-T Active Samples Available |
MSOP | Reel | 2500 | Get Samples, |
